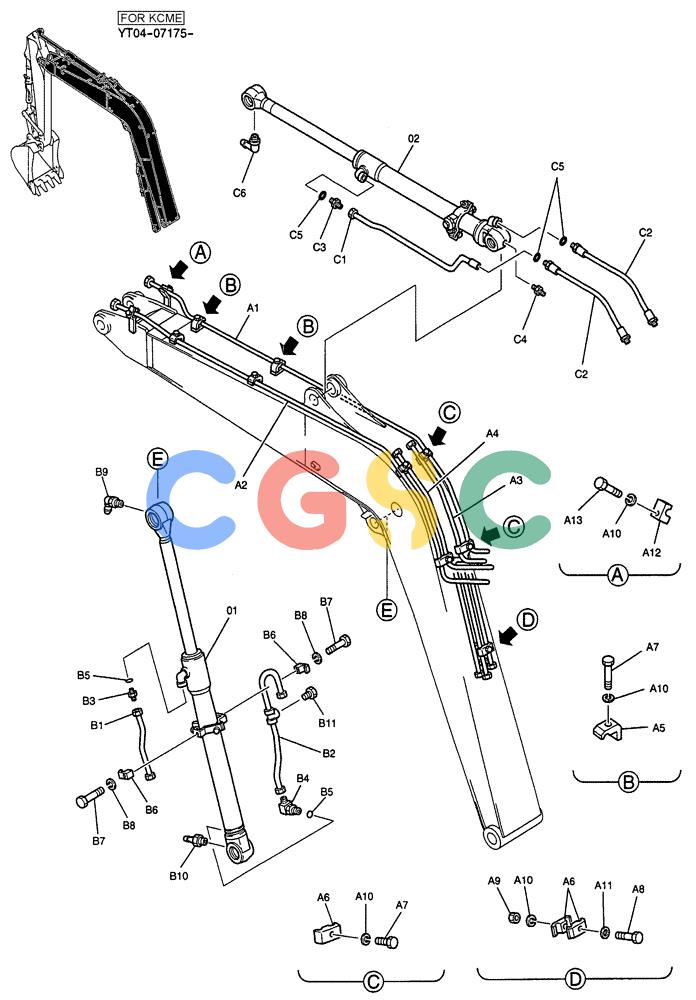

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (03-002) - HYD LINES, BOOM 3.72M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
976 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | YT01V00017F1 | [1] | HYDRAULIC CYLINDER | KOBASSY, BOOM, Serial Range: YT04-07175-YT04-07488 Superseded by part number: YT01V00017F2 |
| 01. | YT01V00017F2 | [1] | CYLINDER | KOBCYLINDER ASSY, BOOM, Start Serial: YT04-07489 |
| 02. | YT01V00002F1 | [1] | CYLINDER ASSY. | KOBASSY, ARM |
| . . | YT42H00055F1 | [1] | HYD LINES, BOOM (FIX) | |
| A1. | YT42H01232P1 | [1] | TUBE | KOB |
| A2. | YT42H01233P1 | [1] | TUBE | KOB |
| A3. | YT42H01084P1 | [1] | TUBE | KOB |
| A4. | YT42H01006P1 | [1] | TUBE | KOB |
| A5. | ZC26X22011 | [4] | CLAMP | KOB |
| A6. | ZC36X22011 | [6] | CLAMP | KOB |
| A7. | ZS18C10045 | [8] | SCREW,Hex, M10 x 45mm | KOBCAP |
| A8. | HS18C10105G2 | [1] | CAPSCREW | KOBSCREW CAP |
| A9. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| A10. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A11. | ZW16X10000 | [1] | WASHER | KOB |
| . . | YT42H00055F2 | [1] | HYD LINES, BOOM (EXCLUSIVE) | |
| A12. | LF42H01038P1 | [2] | CLAMP | KOB |
| A13. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBCAP |
| . . | YT42H00069F1 | [1] | HYD LINES, CYLINDER | |
| B1. | YT42H01241P1 | [1] | TUBE | KOB |
| B2. | YT42H01151P2 | [1] | TUBE | KOB |
| B3. | ZA23F22008 | [1] | HYD CONNECTOR | KOB |
| B4. | ZA33F22008 | [1] | ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB |
| B5. | ZD12P01800 | [2] | O-RING | KOB |
| B6. | YR43H01003P1 | [2] | CLAMP | KOB |
| B9. | ZG91V02000 | [1] | LUBE NIPPLE | KOB |
| B10. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| B11. | ZE72X04000 | [1] | PLUG | KOB |
| . . | YT42H00003F1 | [1] | HYD LINES, CYLINDER | |
| C1. | YT42H01009P1 | [1] | TUBE | KOB |
| C2. | YT42H01030D1 | [2] | HOSE | KOB |
| C4. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| C6. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
