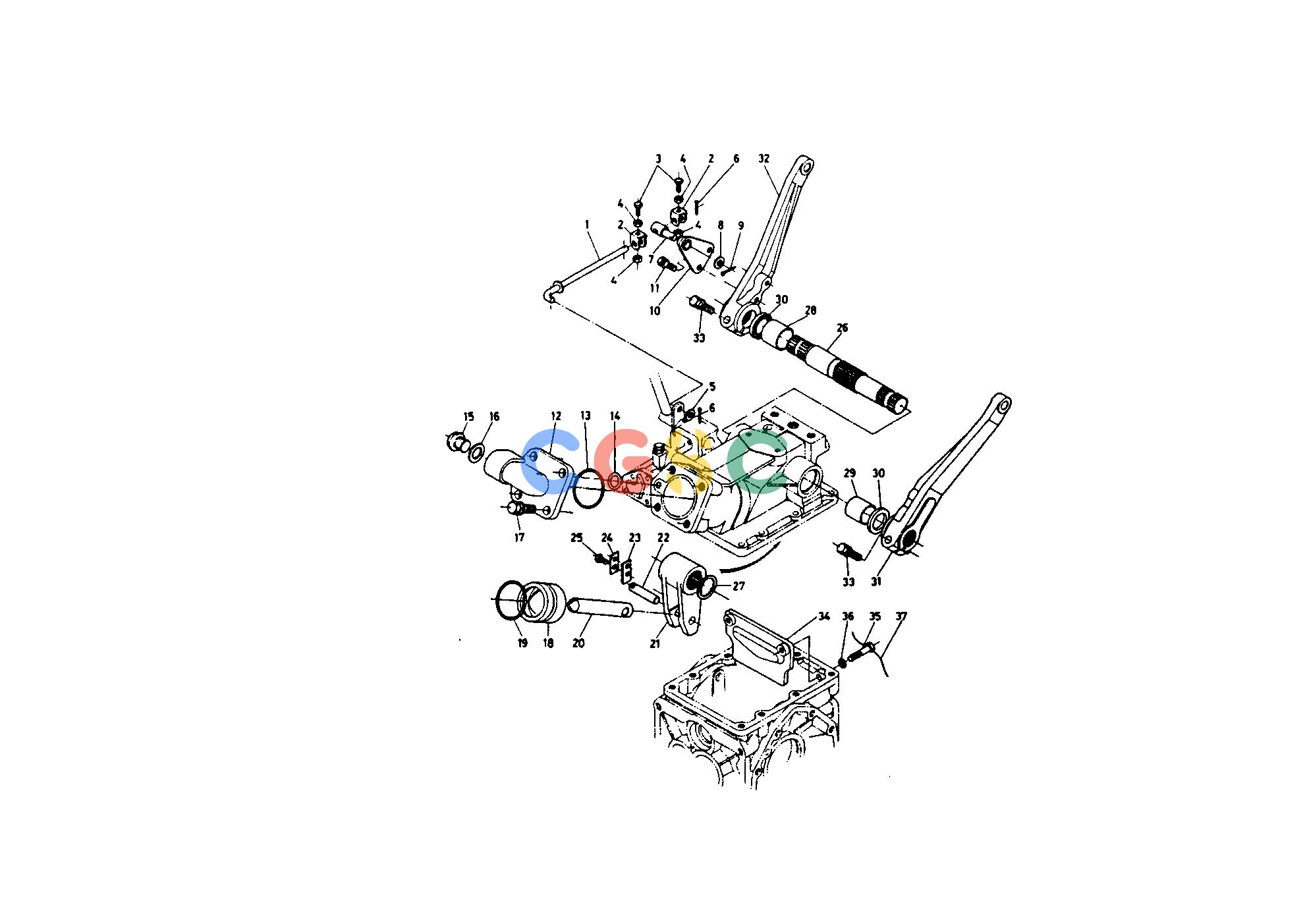

久保田零件查询160000 OIL PRESSURE GROUP 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659136513
|
[1] |
ROD
|
0.0000(lbs); 0.000
|
| 002. |
6661136322
|
[2] |
INTERROCKER
|
0.0000(lbs); 0.000
|
| 003. |
0115350822
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 004. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 005. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 006. |
0551150220
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 007. |
6659136544
|
[1] |
SHAFT
|
0.0000(lbs); 0.000
|
| 008. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 009. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 010. |
6659136554
|
[1] |
HOLDER
|
0.0000(lbs); 0.000
|
| 011. |
0112050825
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
6659136612
|
[1] |
CAP CYLINDER
|
0.0000(lbs); 0.000
|
| 013. |
0481150550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 014. |
0481100080
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 015. |
0631125040
|
[1] |
PLUG
|
0.1980(lbs); 0.090
|
| 016. |
0471400400
|
[1] |
PACKING
|
0.0066(lbs); 0.003
|
| 017. |
0115351240
|
[2] |
BOLT
|
0.0924(lbs); 0.042
|
| 018. |
6659136632
|
[1] |
PISTON OIL PRESSURE
|
0.0000(lbs); 0.000
|
| 019. |
0481008500
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 020. |
6659136642
|
[1] |
ROD OIL PRESSURE PIS
|
0.0000(lbs); 0.000
|
| 021. |
6659136655
|
[1] |
ARM OIL PRESSURE
|
0.0000(lbs); 0.000
|
| 022. |
6659136660
|
[1] |
PIN ARM
|
0.0990(lbs); 0.045
|
| 023. |
6659136670
|
[1] |
PLATE LOCK
|
0.0220(lbs); 0.010
|
| 024. |
6659136680
|
[1] |
WASHER LOCK
|
0.0044(lbs); 0.002
|
| 025. |
0105000612
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
6659136693
|
[1] |
SHAFT OIL PRESSURE A
|
0.0000(lbs); 0.000
|
| 027. |
0461200320
|
[1] |
CIR-CLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 028. |
6659136710
|
[1] |
BUSH
|
0.1078(lbs); 0.049
|
| 029. |
6659136720
|
[1] |
BUSH
|
0.0968(lbs); 0.044
|
| 030. |
0923028405
|
[2] |
SEAL OIL
|
0.0132(lbs); 0.006
|
| 031. |
6659136733
|
[1] |
ARM
|
0.0000(lbs); 0.000
|
| 032. |
6659136743
|
[1] |
ARM
|
2.3100(lbs); 1.050
|
| 033. |
0112301045
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 034. |
6659136750
|
[1] |
PLATE
|
1.0076(lbs); 0.458
|
| 035. |
6374311412
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 036. |
0471400080
|
[2] |
PACKING
|
0.0022(lbs); 0.001
|
| 037. |
9999999999
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
