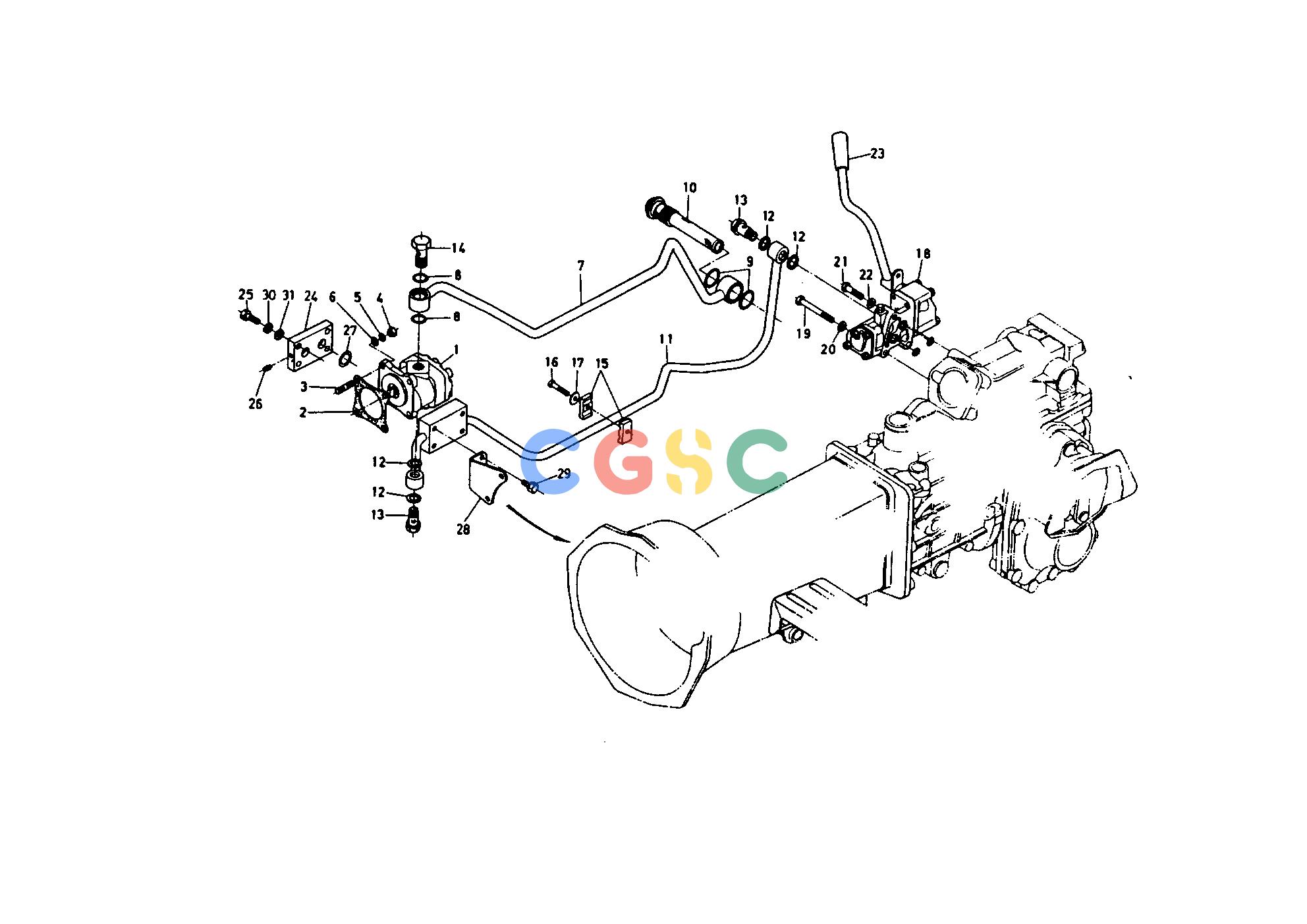

久保田零件查询170000 OIL PRESSURE GROUP 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659136100
|
[1] |
ASSY PUMP OIL PRESSU
|
0.0000(lbs); 0.000
|
| 002. |
1523187132
|
[1] |
PACKING OIL PRESSURE
|
0.0000(lbs); 0.000
|
| 003. |
0151350822
|
[4] |
STUD
|
0.0220(lbs); 0.010
|
| 004. |
0215650080
|
[4] |
NUT
|
0.0088(lbs); 0.004
|
| 005. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 006. |
0401250080
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 007. |
6659136215
|
[1] |
PIPE
|
0.0000(lbs); 0.000
|
| 008. |
0481100220
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 009. |
0481110300
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 010. |
6659136226
|
[1] |
FILTER OIL
|
0.0000(lbs); 0.000
|
| 011. |
6660136130
|
[1] |
PIPE
|
2.6400(lbs); 1.200
|
| 012. |
0471400300
|
[4] |
PACKING
|
0.0044(lbs); 0.002
|
| 013. |
6659136253
|
[2] |
JOINT EYE
|
0.0000(lbs); 0.000
|
| 014. |
3217038172
|
[1] |
JOINT EYE
|
0.0000(lbs); 0.000
|
| 015. |
6659136242
|
[2] |
HOLDER PIPE
|
0.0000(lbs); 0.000
|
| 016. |
0105050640
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 017. |
04015250060
|
[1] |
WASHER PLAIN
|
0.0000(lbs); 0.000
|
| 018. |
6657136303
|
[1] |
ASSY VALVE CONTROL
|
0.0000(lbs); 0.000
|
| 019. |
0115000875
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 020. |
0451200080
|
[2] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 021. |
0115050845
|
[1] |
BOLT
|
0.0418(lbs); 0.019
|
| 022. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 023. |
6659142110
|
[1] |
GRIP LEVER
|
0.0440(lbs); 0.020
|
| 024. |
6660436160
|
[1] |
COVER
|
0.5060(lbs); 0.230
|
| 025. |
0115050838
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 026. |
0631210020
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
| 027. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 028. |
6660136150
|
[1] |
HOLDER
|
0.2596(lbs); 0.118
|
| 029. |
0112050814
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 030. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 031. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
