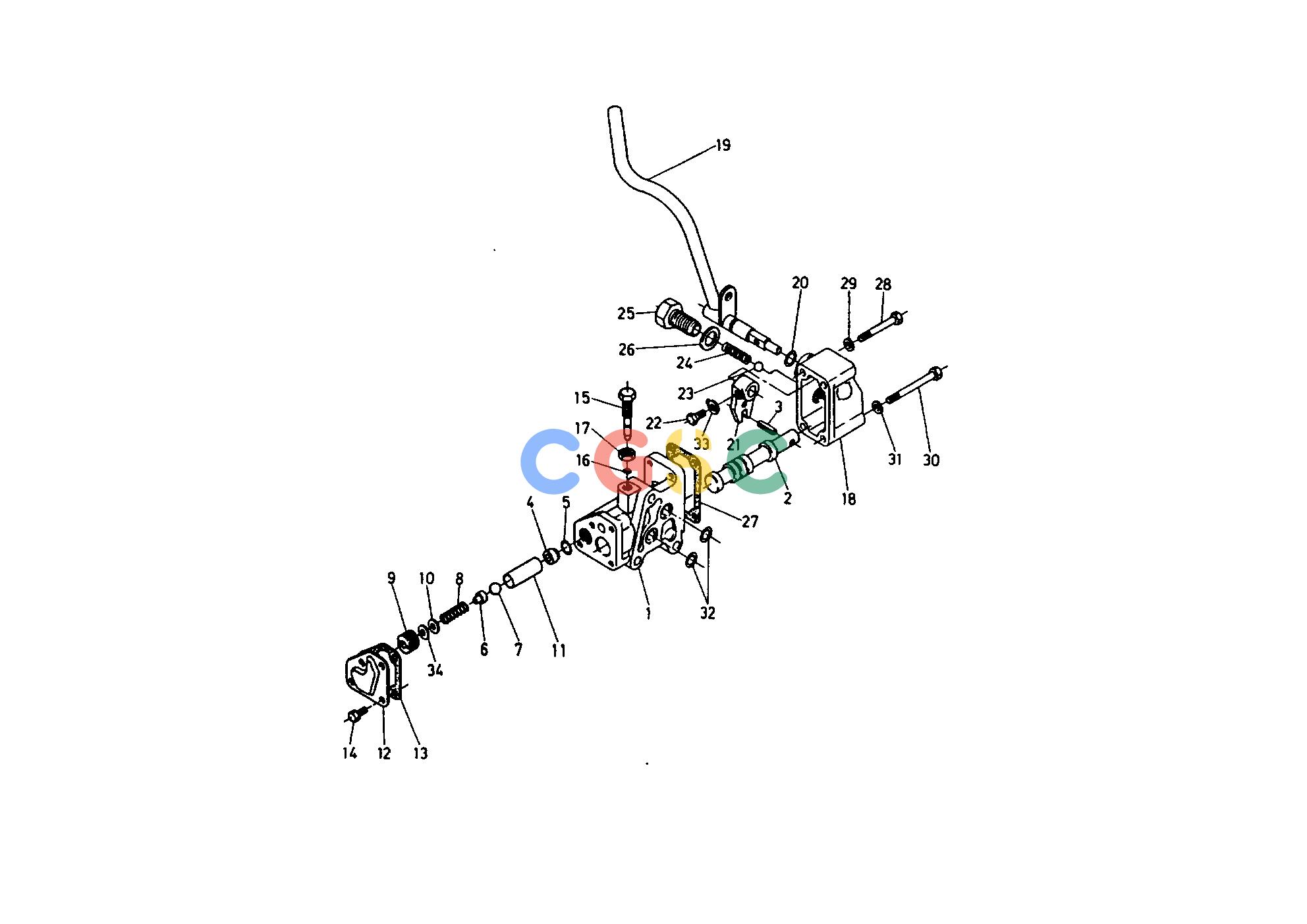

久保田零件查询180000 CONTOL VALVE GROUP HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659136317
|
[1] |
BODY VALVE
|
0.0000(lbs); 0.000
|
| 002. |
6659136320
|
[1] |
SPOOL
|
0.0000(lbs); 0.000
|
| 003. |
0541200620
|
[1] |
PIN SPRING
|
0.0000(lbs); 0.000
|
| 004. |
6659136333
|
[1] |
HOLDER
|
0.0000(lbs); 0.000
|
| 005. |
0481115120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 006. |
6661136222
|
[1] |
HOLDER SPRING
|
0.0176(lbs); 0.008
|
| 007. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 008. |
6659136350
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 009. |
6659136363
|
[1] |
SCREW ADJUSTING
|
0.0000(lbs); 0.000
|
| 010. |
0401200060
|
[1] |
WASHER PLAIN
|
0.0000(lbs); 0.000
|
| 011. |
6659136370
|
[1] |
COLLAR
|
0.0352(lbs); 0.016
|
| 012. |
6659136380
|
[1] |
CAP
|
0.1474(lbs); 0.067
|
| 013. |
6659136390
|
[1] |
PACKING
|
0.0000(lbs); 0.000
|
| 014. |
0102000616
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 015. |
6659136415
|
[1] |
BOLT ADJUSTING
|
0.0000(lbs); 0.000
|
| 016. |
0481110040
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 017. |
0201250100
|
[1] |
NUT
|
0.0198(lbs); 0.009
|
| 018. |
6659136433
|
[1] |
COVER VALVE
|
0.0000(lbs); 0.000
|
| 019. |
6657136442
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 020. |
0481100100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 021. |
6659136452
|
[1] |
ARM VALVE GUIDE
|
0.0000(lbs); 0.000
|
| 022. |
6659136480
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 023. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 024. |
6206118277
|
[1] |
SPRING
|
0.0000(lbs); 0.000
|
| 025. |
6659136462
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
0471400300
|
[1] |
PACKING
|
0.0044(lbs); 0.002
|
| 027. |
6659136470
|
[1] |
PACKING VALVE COVER
|
0.0000(lbs); 0.000
|
| 028. |
0105050650
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 029. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 030. |
0105000665
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 031. |
0451200060
|
[2] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 032. |
0481106120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 033. |
0411100080
|
[1] |
WASHER
|
0.0000(lbs); 0.000
|
| 034. |
6661136330
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
