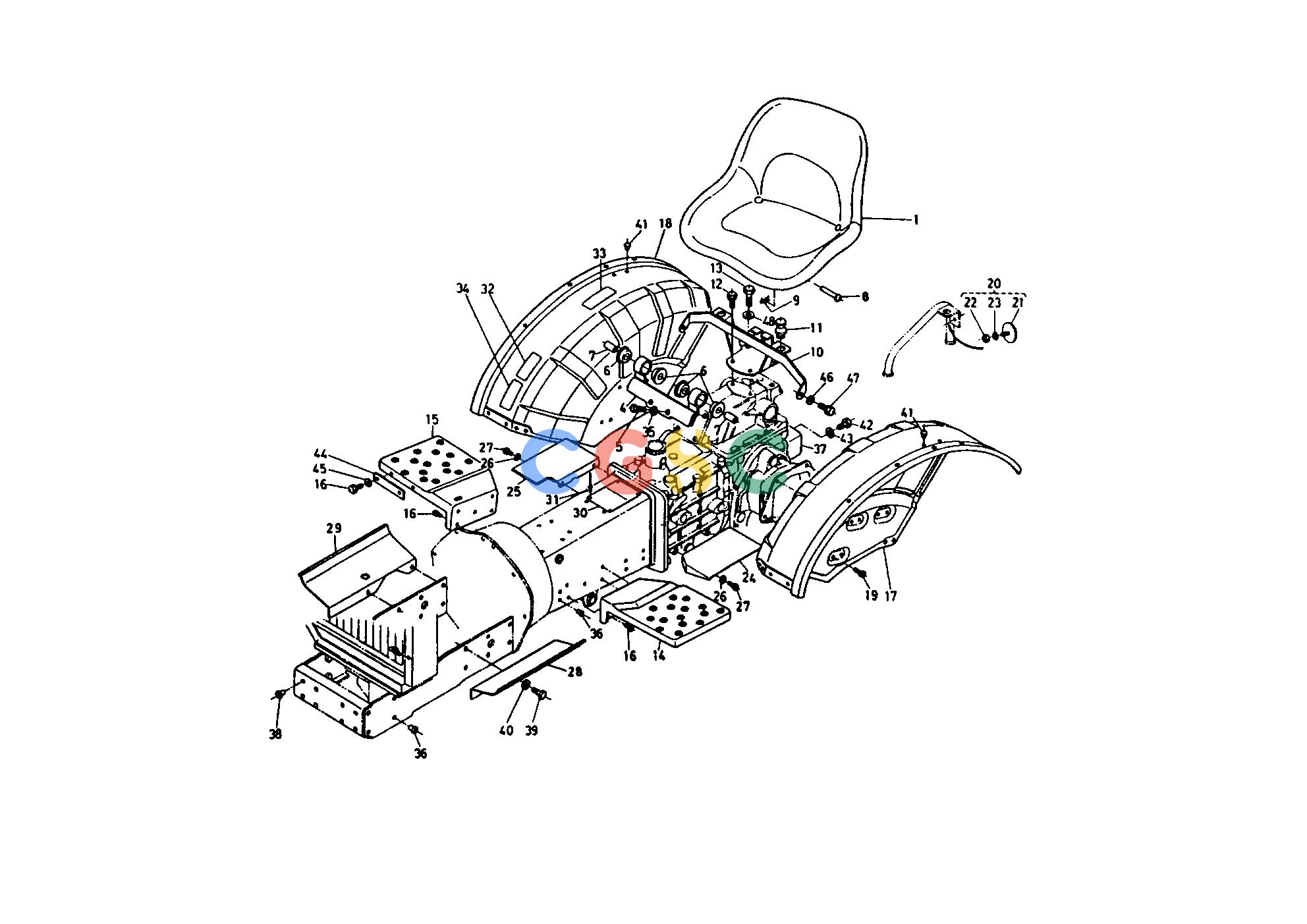

久保田零件查询200000 SEAT AND FENDER GROUP HOOD(BONNET)/ROPSEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
139 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6671145902
|
[1] |
ASSY SEAT
|
0.0000(lbs); 0.000
|
| 004. |
6660145930
|
[1] |
SUPPORT SEAT FRONT
|
1.3816(lbs); 0.628
|
| 005. |
6671136440
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 006. |
6659141540
|
[4] |
CUSHION
|
0.0220(lbs); 0.010
|
| 007. |
6659141552
|
[2] |
COLLAR
|
0.0000(lbs); 0.000
|
| 008. |
0511251045
|
[2] |
PIN
|
0.0638(lbs); 0.029
|
| 009. |
0551651000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 010. |
6660145942
|
[1] |
SUPPORT SEAT REAR
|
0.0000(lbs); 0.000
|
| 011. |
3224018442
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 012. |
0112050820
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 013. |
0115551235
|
[2] |
BOLT
|
0.0858(lbs); 0.039
|
| 014. |
6671151130
|
[1] |
STEP LH
|
4.5716(lbs); 2.078
|
| 015. |
6671151140
|
[1] |
STEP RH
|
4.1360(lbs); 1.880
|
| 016. |
0112050818
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
| 017. |
6671152710
|
[1] |
FENDER LH
|
9.2400(lbs); 4.200
|
| 018. |
6671152720
|
[1] |
FENDER RH
|
13.6400(lbs); 6.200
|
| 019. |
0112050816
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
| 020. |
6659152300
|
[2] |
ASSY LAMP
|
0.0132(lbs); 0.006
|
| 021. |
5314361240
|
[2] |
COMP LAMP
|
0.0242(lbs); 0.011
|
| 022. |
0201350050
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 023. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 024. |
6659152230
|
[1] |
COVER LH
|
0.4620(lbs); 0.210
|
| 025. |
6659152242
|
[1] |
COVER RH
|
0.0000(lbs); 0.000
|
| 026. |
0401450080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 027. |
0112050816
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 028. |
6659152254
|
[1] |
COVER LH
|
0.0000(lbs); 0.000
|
| 029. |
6659152264
|
[1] |
COVER RH
|
0.0000(lbs); 0.000
|
| 030. |
6660148522
|
[1] |
LABEL 2
|
0.0000(lbs); 0.000
|
| 031. |
5410224410
|
[4] |
RIVET
|
0.0022(lbs); 0.001
|
| 032. |
6660148140
|
[1] |
LABEL 4
|
0.0022(lbs); 0.001
|
| 033. |
6660148160
|
[1] |
LABEL 6
|
0.0022(lbs); 0.001
|
| 034. |
6660148170
|
[1] |
LABEL 7
|
0.0022(lbs); 0.001
|
| 035. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 036. |
6659151132
|
[16] |
PLUG 1
|
0.0000(lbs); 0.000
|
| 037. |
6660114540
|
[2] |
COVER P.T.O
|
1.6500(lbs); 0.750
|
| 038. |
6659154390
|
[16] |
PLUG 3
|
0.0022(lbs); 0.001
|
| 039. |
6659154232
|
[4] |
BOLT REAMER
|
0.0000(lbs); 0.000
|
| 040. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 041. |
6376352581
|
[4] |
PLUG
|
0.0000(lbs); 0.000
|
| 042. |
0115051225
|
[2] |
BOLT
|
0.0726(lbs); 0.033
|
| 043. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 044. |
6671151180
|
[1] |
PLATE
|
0.0990(lbs); 0.045
|
| 045. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 046. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 047. |
0115050816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 048. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
