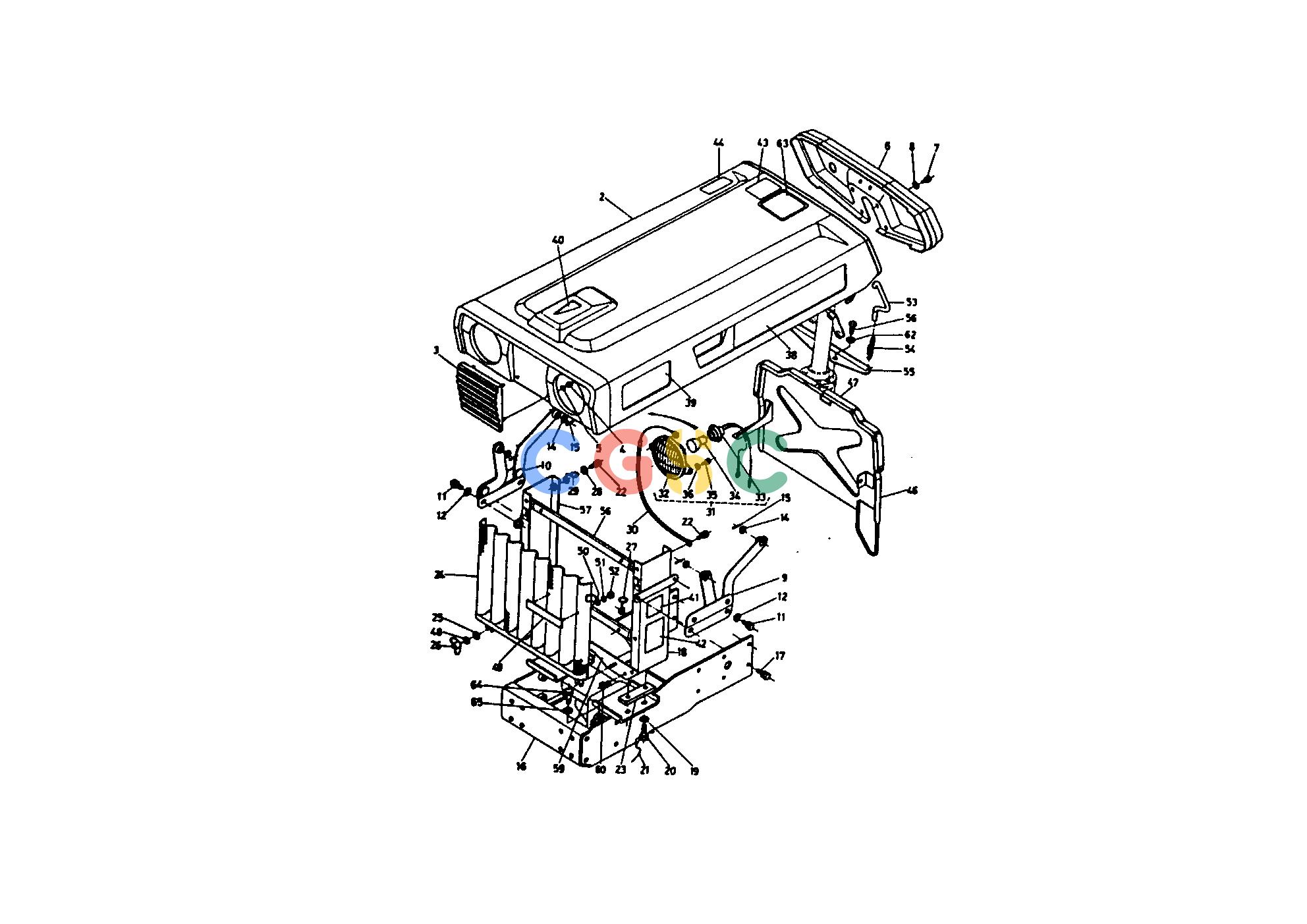

久保田零件查询210000 BONNET AND RADIATOR SUPPORT GROUP HOOD(BONNET)/ROPSEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659154102
|
[1] |
ASSY BONNET
|
0.0000(lbs); 0.000
|
| 002. |
6657154117
|
[1] |
BONNET
|
0.0000(lbs); 0.000
|
| 003. |
6657154120
|
[1] |
MASCOT
|
0.0000(lbs); 0.000
|
| 004. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 005. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 006. |
6657154130
|
[1] |
PANEL
|
1.9360(lbs); 0.880
|
| 007. |
0112050818
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 008. |
0401450080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 009. |
6659154704
|
[1] |
COMP FULCRUM BONNET
|
0.0000(lbs); 0.000
|
| 010. |
6659154804
|
[1] |
COMP FULCRUM BONNET
|
0.0000(lbs); 0.000
|
| 011. |
0112050818
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 012. |
0401450080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 014. |
0401450080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 015. |
0551150215
|
[4] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 016. |
6664151260
|
[1] |
SUPPORT FRONT WHEEL
|
20.0200(lbs); 9.100
|
| 017. |
0113051022
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
| 018. |
6664151225
|
[1] |
SUPPORT RADIATOR
|
0.0000(lbs); 0.000
|
| 019. |
0401450080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 020. |
6661151270
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 021. |
9999999999
|
[2] |
WIRE
|
0.0000(lbs); 0.000
|
| 022. |
0112050816
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
| 023. |
6659154330
|
[2] |
CUSHION 1
|
0.0704(lbs); 0.032
|
| 024. |
6664151283
|
[1] |
NET RADIATOR
|
0.0000(lbs); 0.000
|
| 025. |
0401450060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 026. |
6104163150
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 027. |
6659154353
|
[1] |
REATINER PIPE
|
0.0000(lbs); 0.000
|
| 028. |
0401450100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 029. |
1522105590
|
[2] |
RETAINER PIPE
|
0.0220(lbs); 0.010
|
| 030. |
6659155640
|
[1] |
CORD LAMP EARTH
|
0.0330(lbs); 0.015
|
| 031. |
6659155604
|
[2] |
ASSY LAMP HEAD
|
0.0000(lbs); 0.000
|
| 032. |
6659155613
|
[2] |
LAMP HEAD
|
0.0000(lbs); 0.000
|
| 033. |
6659155622
|
[2] |
SOCKET
|
0.0000(lbs); 0.000
|
| 034. |
6659155630
|
[2] |
BULB LAMP
|
0.0176(lbs); 0.008
|
| 035. |
0120250612
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 036. |
0401450060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 038. |
6659147110
|
[2] |
LABEL 1
|
0.0110(lbs); 0.005
|
| 039. |
6660148180
|
[2] |
LABEL 8
|
0.0044(lbs); 0.002
|
| 040. |
6659147190
|
[1] |
LABEL 9
|
0.0022(lbs); 0.001
|
| 041. |
1510194612
|
[1] |
LABEL RADIATOR
|
0.0000(lbs); 0.000
|
| 042. |
1510394590
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 043. |
6660148260
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 044. |
6660148582
|
[1] |
LABEL 2
|
0.0000(lbs); 0.000
|
| 045. |
1331369750
|
[1] |
ASSY CRAMP CORD
|
0.0000(lbs); 0.000
|
| 046. |
6657154682
|
[1] |
COVER
|
0.0000(lbs); 0.000
|
| 047. |
6659154692
|
[1] |
TAPE
|
0.0000(lbs); 0.000
|
| 048. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 049. |
6660147230
|
[1] |
LABEL
|
0.0440(lbs); 0.020
|
| 050. |
0401350040
|
[2] |
WASHER
|
0.0022(lbs); 0.001
|
| 051. |
0451250040
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 052. |
0205450040
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 053. |
6660155210
|
[2] |
HOOK BONNET
|
0.0528(lbs); 0.024
|
| 054. |
6671155220
|
[2] |
SPRING
|
0.0220(lbs); 0.010
|
| 055. |
6671141132
|
[1] |
HOLDER
|
0.0000(lbs); 0.000
|
| 056. |
0115350825
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 057. |
6664151234
|
[1] |
SUPPORT RADIATOR RH
|
0.0000(lbs); 0.000
|
| 058. |
6664151240
|
[2] |
STAY SUPPORT
|
0.3168(lbs); 0.144
|
| 059. |
6664151250
|
[1] |
PLATE SUPPORT
|
0.3520(lbs); 0.160
|
| 060. |
0120250612
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 062. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 063. |
6660148620
|
[1] |
LABEL
|
0.0044(lbs); 0.002
|
| 064. |
0117351020
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 065. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
