纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-010) - VALVE ASSY, CONTROL (OFFSET BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
214 次

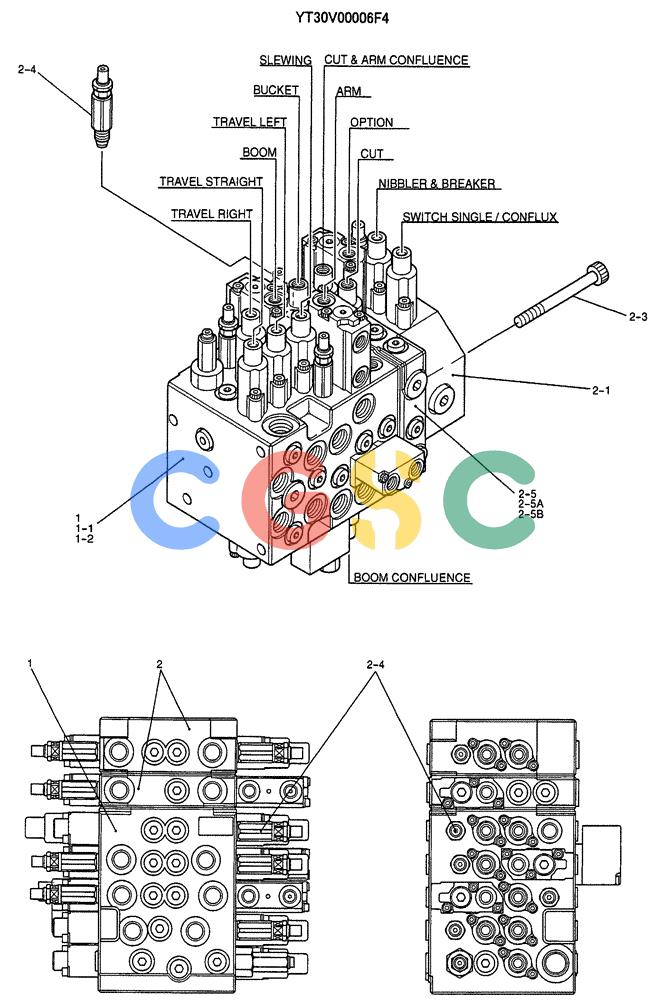

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00006F4 | [1] | CONTROL VALVE | KOBASSY |
| 1. | YT30V00001F4 | [1] | VALVE | KOBASSY, CONTROL, SEE FIG. 07-001 |
| 1-1. | YN01V00004S006 | [1] | O-RING | KOB |
| 1-2. | ZD12P02200 | [4] | O-RING | KOB |
| 2. | YT30V00015F3 | [1] | VALVE ASSY, CONTROL | |
| 2-1. | YT30V00017F1 | [1] | VALVE | KOBASSY, CONTROL, SEE FIG. 07-003-01 & 07-003-02 Superseded by part number: YT30V00007F1 |
| 2-3. | YT30V00005S002 | [4] | CAPSCREW,Hex Socket Head, M12 x 105mm | KOBSCREW CAP Superseded by part number: ZS23C12105 |
| 2-4. | YT22V00004F1 | [1] | VALVE | KOBASSY, OVERLOAD RELIEF, SEE FIG. 07-008 |
| 2-5. | YT30V00019F3 | [1] | CONTROL VALVE | KOBASSY, SEE FIG. 07-006-01 & 07-006-02 |
