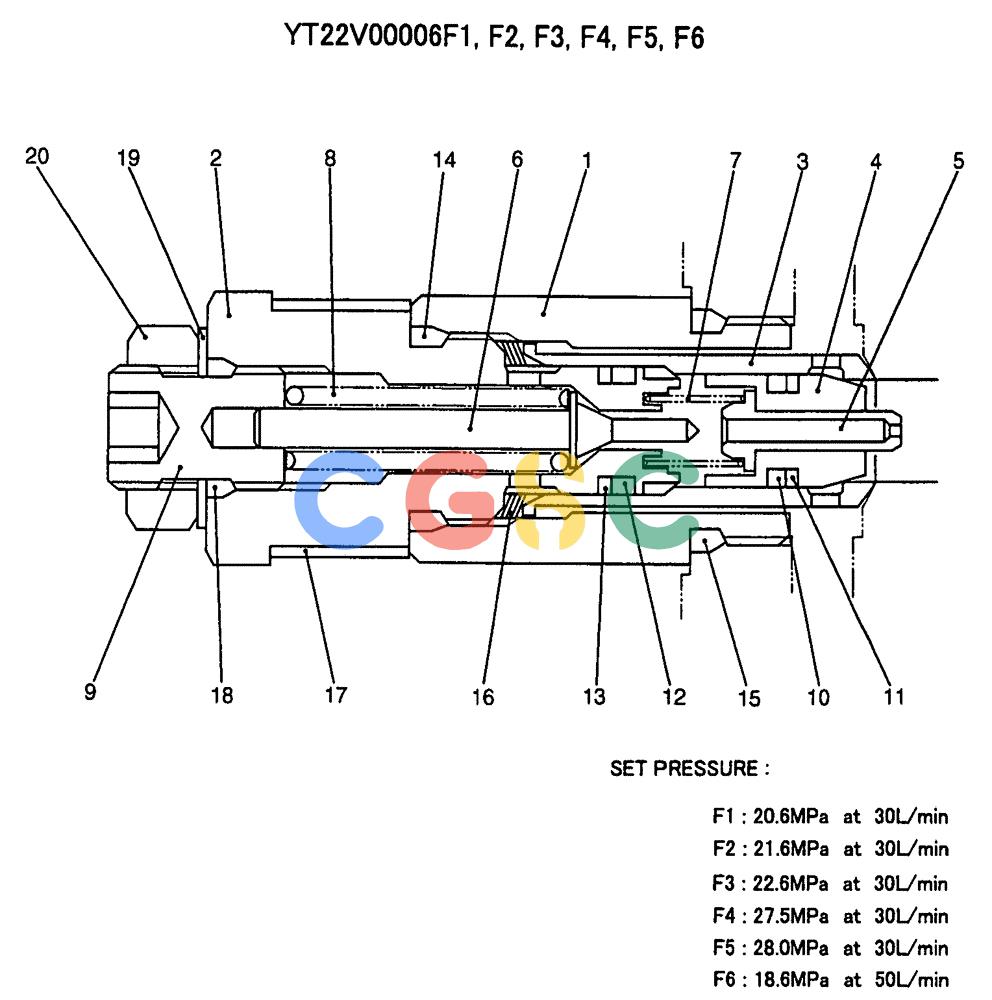

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-015) - VALVE ASSY, RELIEF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22V00006F1 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YT22V00006F2 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YT22V00006F3 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YT22V00006F4 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YT22V00006F5 | [1] | VALVE | KOBASSY, RELIEF Superseded by part number: YT22V00006F6 |
| . . | YT22V00006F6 | [1] | VALVE | KOBASSY, RELIEF |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONCAP |
| 10. | 2436R378S13 | [1] | O-RING | KOB |
| 11. | 2436R378S14 | [1] | BACK-UP RING | KOB |
| 12. | 2436R378S15 | [1] | O-RING | KOB |
| 13. | 2436R378S16 | [1] | BACK-UP RING | KOB |
| 14. | 2436U388S5 | [1] | O-RING | KOB |
| 15. | 2436U388S25 | [1] | O-RING | KOB |
| 18. | ZD12P01000 | [1] | O-RING | KOB |
| . . | 2436R1119R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 15 (1), 18 (1) |
