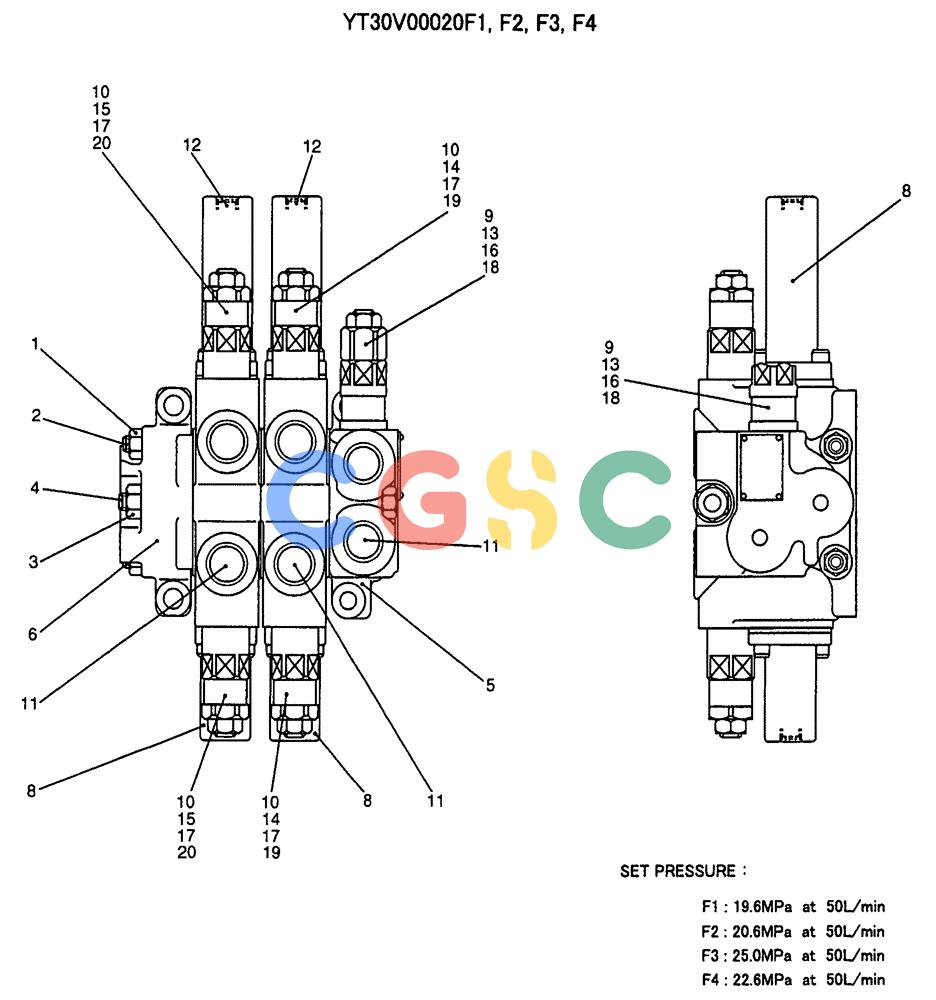

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-016) - VALVE ASSY, CONTROL (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00020F1 | [1] | CONTROL VALVE | KOBASSY |
| . . | YT30V00020F2 | [1] | VALVE | KOBASSY, CONTROL |
| . . | YT30V00020F3 | [1] | CONTROL VALVE | KOBASSY |
| . . | YT30V00020F4 | [1] | VALVE | KOBASSY, CONTROL |
| 1. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 2. | 2436U1238S2 | [2] | ROD | KOBTIE |
| 3. | 2436U424S9 | [2] | NUT | KOB |
| 4. | 2436U1238S4 | [1] | TIE-ROD | KOB |
| 5. | YR20V00001F1 | [1] | VALVE | KOBSECTION ASSY, INLET, SEE FIG. 07-013 |
| 6. | 2436R329F1 | [1] | OUTLET | KOBSECTION ASSY |
| 8. | YT30V00027F1 | [2] | SPOOL | KOBSECTION ASSY, SEE FIG. 07-017 |
| 9. | 2436R1119F4 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-012, (F1 ONLY) |
| 10. | YT22V00006F4 | [4] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-015, (F1 ONLY) |
| 11. | YR30V00014S010 | [6] | PLUG | KOB |
| 12. | 2436U2937S18 | [4] | PLUG | KOB |
| 13. | 2436R1119F5 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-012, (F2 ONLY) |
| 14. | YT22V00006F3 | [2] | VALVE | KOBASSY, RELIEF(F2 ONLY), (F2 ONLY) |
| 15. | YT22V00006F6 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-015, (F2 ONLY) |
| 16. | 2436R1119F6 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-012, (F3 ONLY) |
| 17. | YT22V00006F5 | [4] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-015, (F3 ONLY) Superseded by part number: YT22V00006F6 |
| 18. | 2436R1119F8 | [1] | VALVE | KOBASSY, RELIEF, (F4 ONLY) |
| 19. | YT22V00006F7 | [2] | VALVE | KOBASSY, RELIEF, (F4 ONLY) |
| 20. | YT22V00006F8 | [2] | VALVE | KOBASSY, RELIEF, (F4 ONLY) |
