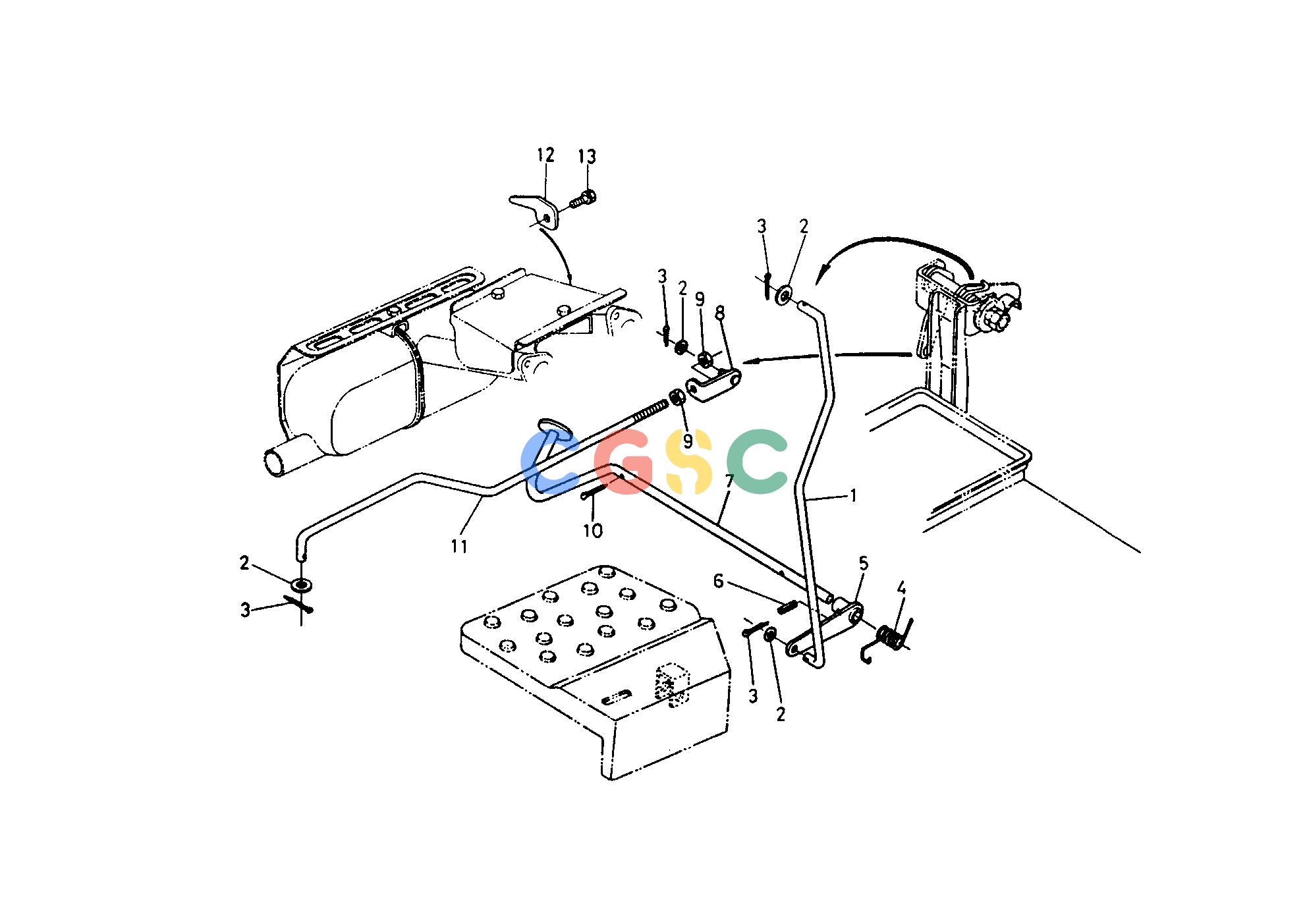

久保田零件查询290000 ACCELERTOR PEDAL GROUP FRONT AXLE/FRONT WHEEL/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6660143440
|
[1] |
ROD ACCELERATOR PEDA
|
0.1848(lbs); 0.084
|
| 002. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 003. |
0551150612
|
[4] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 004. |
6671143430
|
[1] |
SPRING ACCELERATOR P
|
0.0110(lbs); 0.005
|
| 005. |
6671143420
|
[1] |
FULCRUM ACCELERATOR
|
0.1056(lbs); 0.048
|
| 006. |
0541100314
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 007. |
6671143410
|
[1] |
PEDAL ACCELERATOR
|
0.3740(lbs); 0.170
|
| 008. |
6671143220
|
[1] |
METAL
|
0.0506(lbs); 0.023
|
| 009. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 010. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 011. |
6660143230
|
[1] |
ROD RELEASE
|
0.2860(lbs); 0.130
|
| 012. |
6660143290
|
[1] |
SUPPORT
|
0.0506(lbs); 0.023
|
| 013. |
0120250614
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
