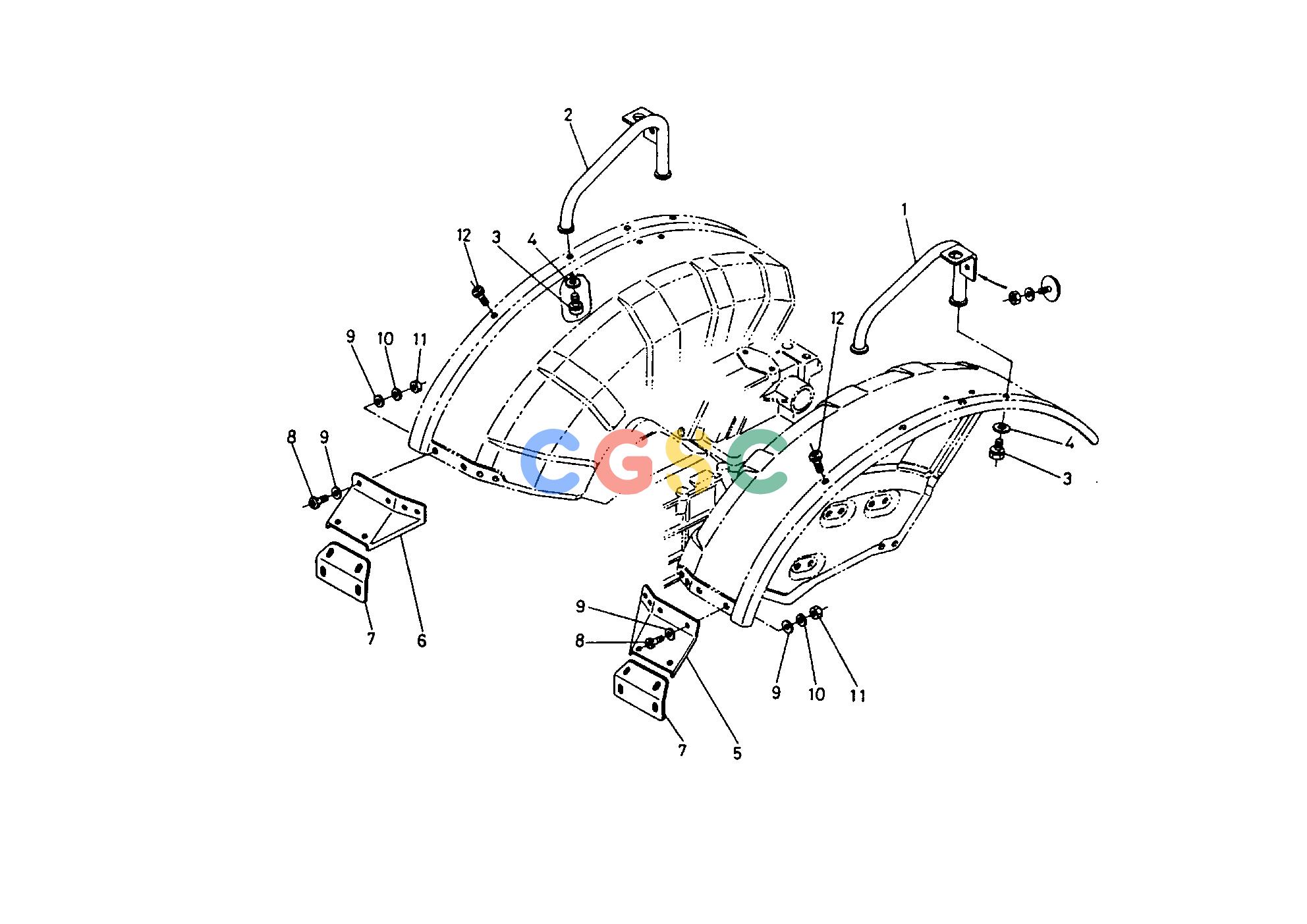

久保田零件查询300000 BALUSTRADE GROUP FRONT AXLE/FRONT WHEEL/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
432 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6661152752
|
[1] |
BALUSTRADE LH
|
0.0000(lbs); 0.000
|
| 002. |
6661152762
|
[1] |
BALUSTRADE RH
|
0.0000(lbs); 0.000
|
| 003. |
0112050820
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 004. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 005. |
6660151150
|
[1] |
PLATE SUB LH
|
0.2200(lbs); 0.100
|
| 006. |
6660151160
|
[1] |
PLATE SUB RH
|
0.1980(lbs); 0.090
|
| 007. |
6660151170
|
[2] |
STAY
|
0.0924(lbs); 0.042
|
| 008. |
0301450614
|
[16] |
SCREW
|
0.0066(lbs); 0.003
|
| 009. |
0401350060
|
[32] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 010. |
0451250060
|
[16] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 011. |
0201450060
|
[16] |
NUT
|
0.0044(lbs); 0.002
|
| 012. |
0300450610
|
[6] |
SCREW
|
0.0088(lbs); 0.004
|
