纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-020) - MOTOR ASSY (SWING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

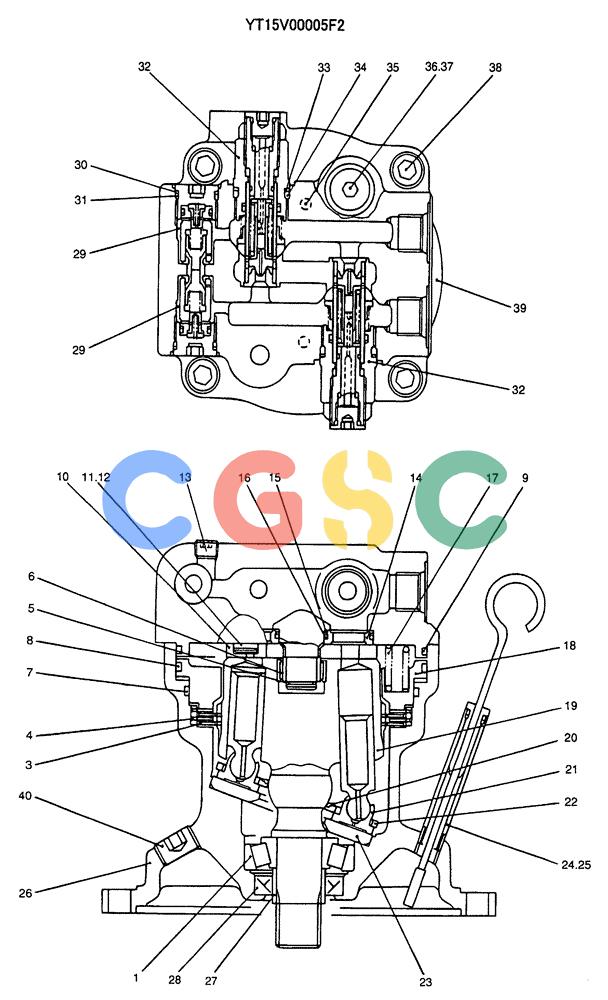

| . . | YT15V00005F2 | [1] | MOTOR | KOBASSY (SWING) |
| 1. | PY15V00003S001 | [1] | BEARING ASSY | KOBROLLER |
| 3. | PY15V00003S004 | [2] | PLATE | KOB |
| 4. | PY15V00003S005 | [2] | PLATE | KOB |
| 5. | PY15V00003S002 | [1] | SNAP RING | KOB |
| 6. | YT15V00005S006 | [1] | NEEDLE BEARING | KOB |
| 7. | PY15V00003S006 | [1] | O-RING | KOB |
| 8. | PY15V00003S008 | [1] | O-RING | KOB |
| 9. | PH15V00004S011 | [1] | O-RING | KOB |
| 10. | YT15V00005S010 | [1] | PLATE | KOB |
| 11. | PH15V00004S013 | [2] | PISTON | KOB |
| 12. | PH15V00004S012 | [2] | RING | KOB |
| 13. | ZE82T04000 | [2] | PLUG | KOB |
| 14. | YT15V00005S014 | [4] | BUSHING | KOB |
| 15. | YT15V00005S015 | [4] | SPRING | KOBCONED DISK |
| 16. | YT15V00005S016 | [4] | RING | KOB |
| 17. | PY15V00003S014 | [13] | SPRING | KOB |
| 18. | PY15V00003S015 | [1] | KIT | KOBPISTON |
| 19. | NSS | [1] | NOT SERVICED SEPARATELY | CONCYLINDER |
| 20. | PY15V00003S017 | [1] | SPRING | KOB |
| 22. | PY15V00003S019 | [1] | PLATE | KOB |
| 23. | PY15V00003S020 | [1] | PLATE | KOBCAM |
| 24. | YR15V00003S037 | [1] | GAUGE | KOBASSY, LEVEL |
| 25. | YT15V00005S025 | [1] | O-RING | KOB |
| 27. | PY15V00003S022 | [1] | RING | KOB |
| 28. | YR15V00003S035 | [1] | OIL SEAL | KOB |
| 29. | 2436R1746F1 | [2] | VALVE | KOBASSY, BYPASS, SEE FIG. 07-023 |
| 30. | ZD85P02100 | [2] | RING | KOBBACK-UP |
| 31. | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-RING |
| 32. | YT22V00001F1 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-022 |
| 33. | ZD85P02600 | [2] | BACK-UP RING | KOB |
| 34. | ZD12P02600 | [2] | O-RING | KOB |
| 35. | 2441U754S17 | [2] | PIN | KOB |
| 36. | 2437U283S42 | [1] | PLUG | KOB |
| 37. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 38. | ZS23C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBCAP |
| 40. | 2441U754S20 | [1] | PLUG | KOB |
