纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-021) - REDUCTION ASSY (SWING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
787 次

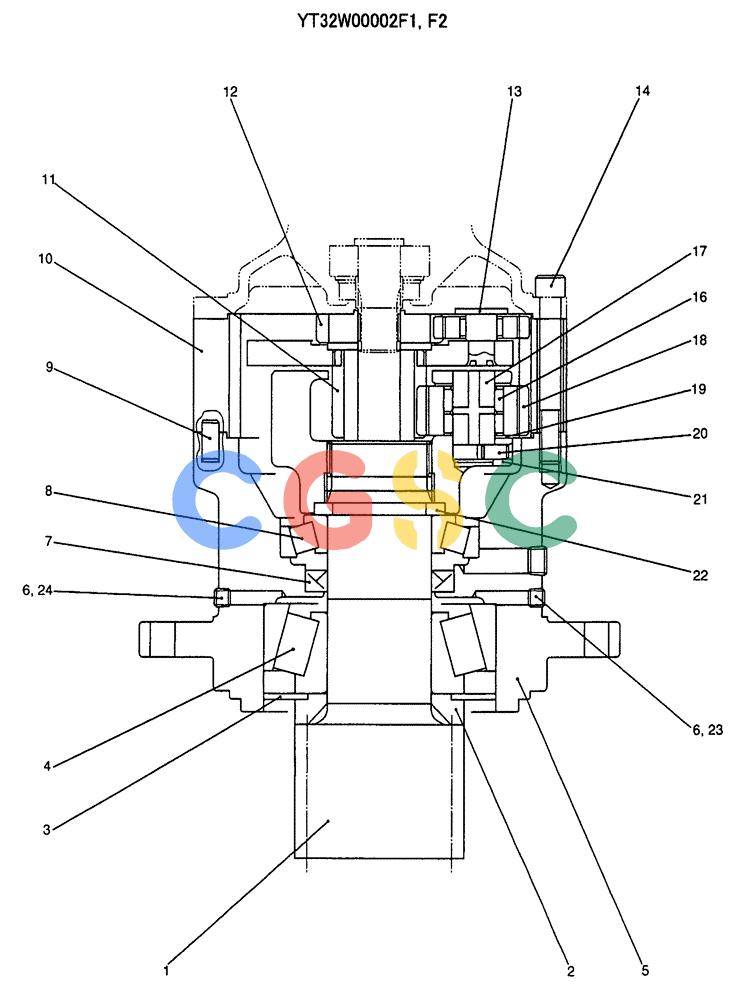

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT32W00002F1 | [1] | SWING CARRIAGE | KOBREDUCTION ASSY Superseded by part number: YT32W00002F2 |
| . . | YT32W00002F2 | [1] | REDUCER | KOBASSY (SWING) |
| 1. | YR32W00002S001 | [1] | SHAFT | KOBPINION |
| 2. | YR32W00002S002 | [1] | COLLAR | KOB |
| 3. | YR32W00002S003 | [1] | PLATE | KOB |
| 4. | YR32W00002S004 | [1] | BEARING | KOBROLLER |
| 5. | YR32W00002S005 | [1] | GEAR | KOBCASE |
| 6. | YT32W00002S006 | [2] | PLUG | KOB(F1 ONLY) |
| 7. | YR32W00002S007 | [1] | SEAL | KOBOIL |
| 8. | YR32W00002S008 | [1] | BEARING | KOBROLLER |
| 9. | PY32W00001S019 | [2] | PIN | KOB |
| 10. | YR32W00002S010 | [1] | GEAR | KOBRING |
| 11. | YR32W00002S011 | [1] | GEAR | KOB |
| 12. | YR32W00002S012 | [1] | GEAR | KOBSUN |
| 13. | YR32W00002S013 | [1] | HOLDER | KOBASSY |
| 14. | YR32W00002S014 | [6] | CAPSCREW | KOBSCREW CAP |
| 16. | NSS | [6] | NOT SERVICED SEPARATELY | CONBEARING, NEEDLE |
| 22. | YR32W00002S016 | [2] | COLLAR | KOB |
| 23. | 2444Z3305 | [1] | BREATHER | KOBVALVE RELIEF, (F2 ONLY) |
| 24. | ZG91V02000 | [1] | LUBE NIPPLE | KOB(F2 ONLY) |
| . . | YT32W00002R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 16 (6), 17 (3), 18 (3), 19 (6), 20 (3), 21 (1) |
