纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-033[02]) - CYLINDER ASSY, BUCKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

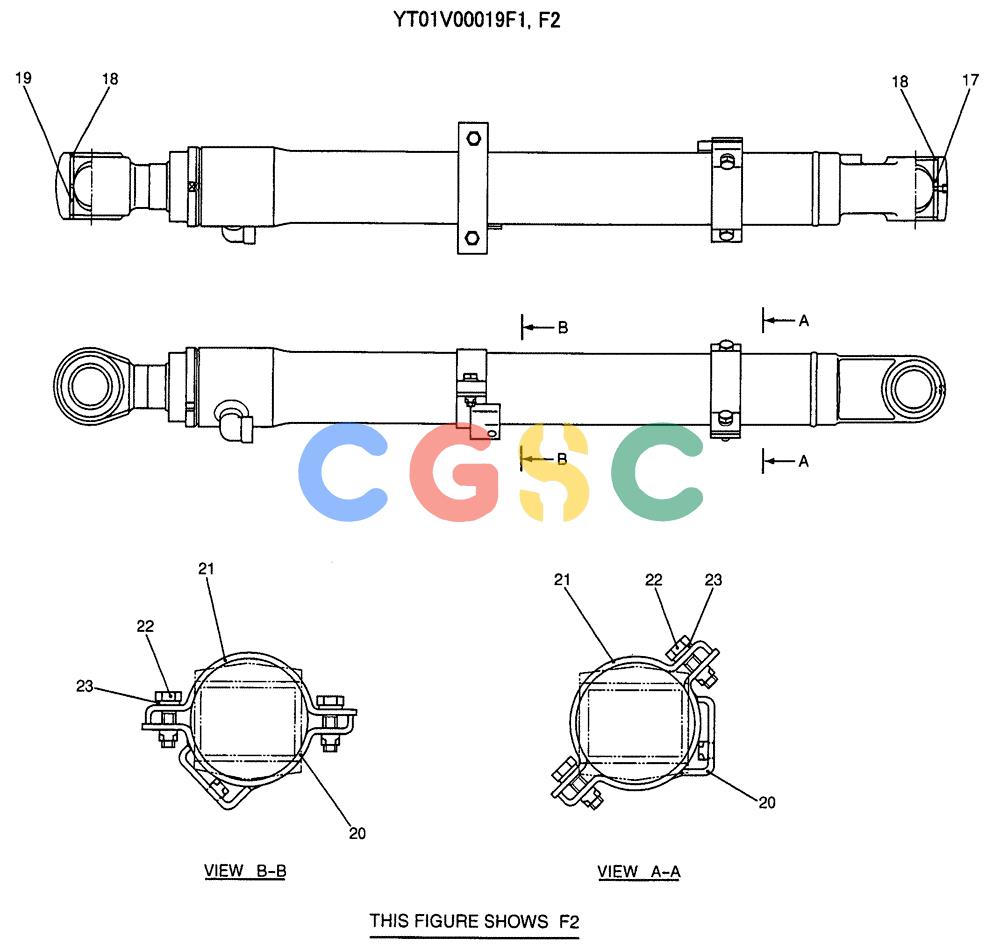

| . . | YT01V00019F1 | [1] | CYLINDER ASSY. | KOBBUCKET |
| . . | YT01V00019F2 | [1] | CYLINDER ASSY. | KOBBUCKET Superseded by part number: YT01V00019F1 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YT01V00019S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YT01V00019S004 | [1] | BUSHING | KOB |
| 5. | 2438U715S7 | [1] | SNAP RING | KOBRETAINING |
| 6. | YT01V00019S006 | [1] | RING | KOBBUFFER |
| 7. | 2438U715S16 | [1] | SNAP RING | KOBU |
| 8. | YJ01V00008S006 | [1] | WIPER | KOBRING |
| 9. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 10. | PH01V00015S008 | [1] | BACK-UP RING | KOB |
| 11. | ZD11G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 12. | PH01V00015S015 | [1] | PISTON | KOB |
| 13. | 2438U852S15 | [1] | RING | KOBSEAL |
| 14. | PH01V00015S017 | [2] | RING | KOBSLIDE |
| 15. | 2438U1057S16 | [1] | SET SCREW | KOBSETSCREW |
| 16. | 2436U946S11 | [1] | BALL | KOB |
| 17. | LE01V00003S019 | [1] | BUSHING | KOB Superseded by part number: YT01V01012P1 |
| 18. | 2438U717S21 | [4] | SEAL | KOBWIPER |
| 19. | 2438U827S11 | [1] | BUSHING | KOB |
| 20. | YT01V00003S021 | [2] | BAND | KOBBAND |
| 21. | YT01V00003S022 | [2] | BAND | KOB |
| 22. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 23. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YT01V00019R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1) |
| . . | YT01V00019R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 13 (1), 14 (2) |
| . . | YT01V00019R300 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 13 (1), 14 (2) |
| . . | YT01V00019R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1 (1), 17 (1) |
| . . | YT01V00019R500 | [1] | ROD ASSY. | KOBCONSISTS OF REF. 2 (1), 19 (1) |
