纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-034) - CYLINDER ASSY, DOZER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
925 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

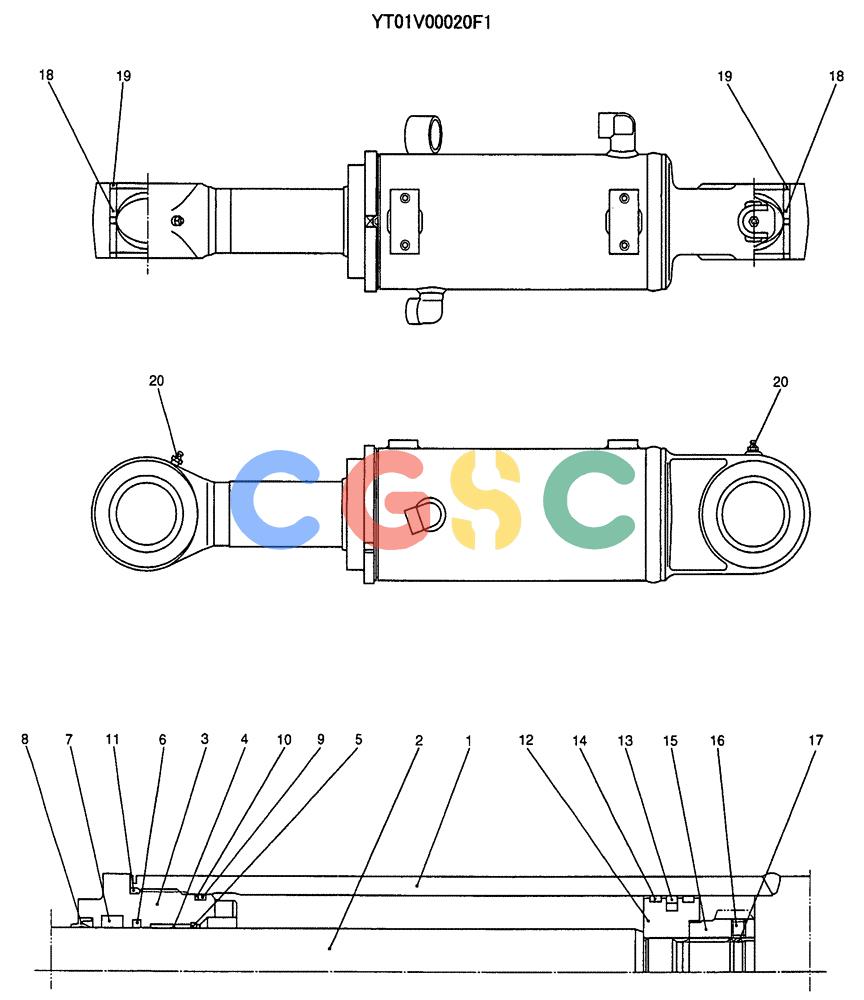

| . . | YT01V00020F1 | [1] | CYLINDER ASSY. | KOBDOZER |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | YT01V00020S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YT01V00017S004 | [1] | BUSHING | KOB |
| 5. | 2438U721S7 | [1] | SNAP RING | KOBRETAINING |
| 6. | YT01V00017S006 | [1] | RING | KOBBUFFER |
| 7. | 2438U721S16 | [1] | RING | KOBU |
| 8. | YT01V00001S009 | [1] | RING | KOBWIPER |
| 9. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 10. | YT01V00020S010 | [1] | RING | KOBBACK UP |
| 11. | ZD11G12000 | [1] | O-RING,119.40mm ID x 125.60mm OD x 3.10mm | KOB |
| 12. | YT01V00020S012 | [1] | PISTON | KOB |
| 13. | 2438U1105S16 | [1] | RING ASSY. | KOBSEAL |
| 14. | YT01V00020S014 | [2] | RING | KOBSLIDE Superseded by part number: 2438U1105S17 |
| 15. | YM01V00009S020 | [1] | NUT | KOB |
| 16. | 2438U999S21 | [1] | SET SCREW | KOBSET |
| 17. | 2436U330S16 | [1] | BALL | KOB |
| 18. | YR01V00015S020 | [2] | BUSHING | KOB |
| 19. | LP01V00007S026 | [4] | RING | KOBWIPER |
| 20. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| . . | YT01V00020R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1) |
| . . | YT01V00020R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 13 (1), 14 (2) |
| . . | YT01V00020R300 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 13 (1), 14 (2) |
| . . | YT01V00020R400 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1 (1), 18 (1) |
| . . | YT01V00020R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2 (1), 18 (1) |
