纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-041) - CYLINDER ASSY, JIB (2-PIECE BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1009 次

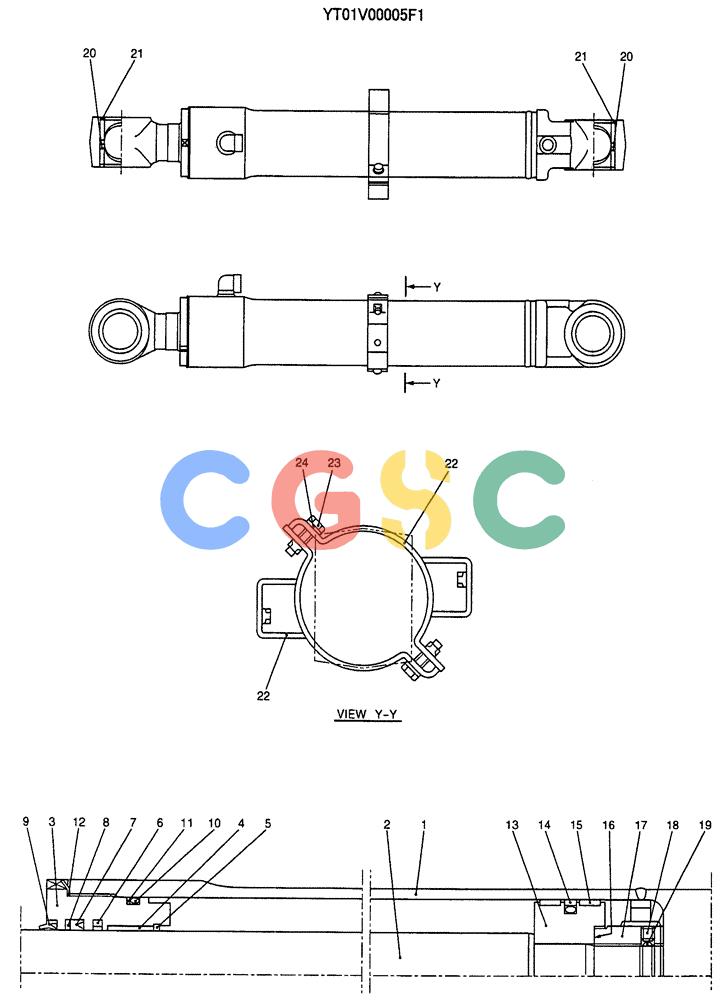

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00005F1 | [1] | CYLINDER ASSY. | KOBJIB |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, CYLINDER |
| 3. | LE01V00006S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YR01V00001S004 | [1] | BUSHING | KOB Superseded by part number: 2438U1094S4 |
| 5. | 2438U721S7 | [1] | SNAP RING | KOBRETAINING |
| 6. | 2438U721S20 | [1] | RING | KOBBUFFER |
| 7. | 2438U721S16 | [1] | RING | KOBU |
| 8. | 2438U721S17 | [1] | BACK-UP RING | KOB |
| 9. | YT01V00001S009 | [1] | RING | KOBWIPER |
| 10. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| 11. | YR01V00001S011 | [1] | RING | KOBBACK UP |
| 12. | ZD11G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 13. | LE01V00006S013 | [1] | PISTON | KOB |
| 14. | LE01V00006S014 | [1] | RING | KOBSEAL |
| 15. | YR01V00001S018 | [2] | RING | KOBSLIDE |
| 16. | LE01V00006S016 | [1] | SHIM | KOB |
| 17. | YR01V00012S017 | [1] | NUT | KOB |
| 18. | 2438U999S21 | [1] | SET SCREW | KOBSET |
| 19. | 2436U330S16 | [1] | BALL | KOB |
| 20. | YT01V01007P1 | [2] | BUSHING | KOB |
| 21. | LP01V00007S026 | [4] | RING | KOBWIPER |
| 22. | YT01V00005S022 | [2] | BAND | KOBASSY |
| 23. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 24. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YR01V00012R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1) |
| . . | YR01V00001R200 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF. 14 (1), 15 (2) |
| . . | YR01V00012R300 | [1] | REPAIR KIT | KOBALL (ROD + PISTON) CONSISTS OF REF. 6 (1), 7 (1), 8 (1), 9 (1), 10 (1), 11 (1), 12 (1), 14 (1), 15 (2) |
| . . | YT01V00005R400 | [1] | TUBE | KOBREPAIR KIT CONSISTS OF REF. 1 (1), 20 (1) |
| . . | YT01V00005R500 | [1] | ROD | KOBREPAIR KIT CONSISTS OF REF. 2 (1), 20 (1) |
