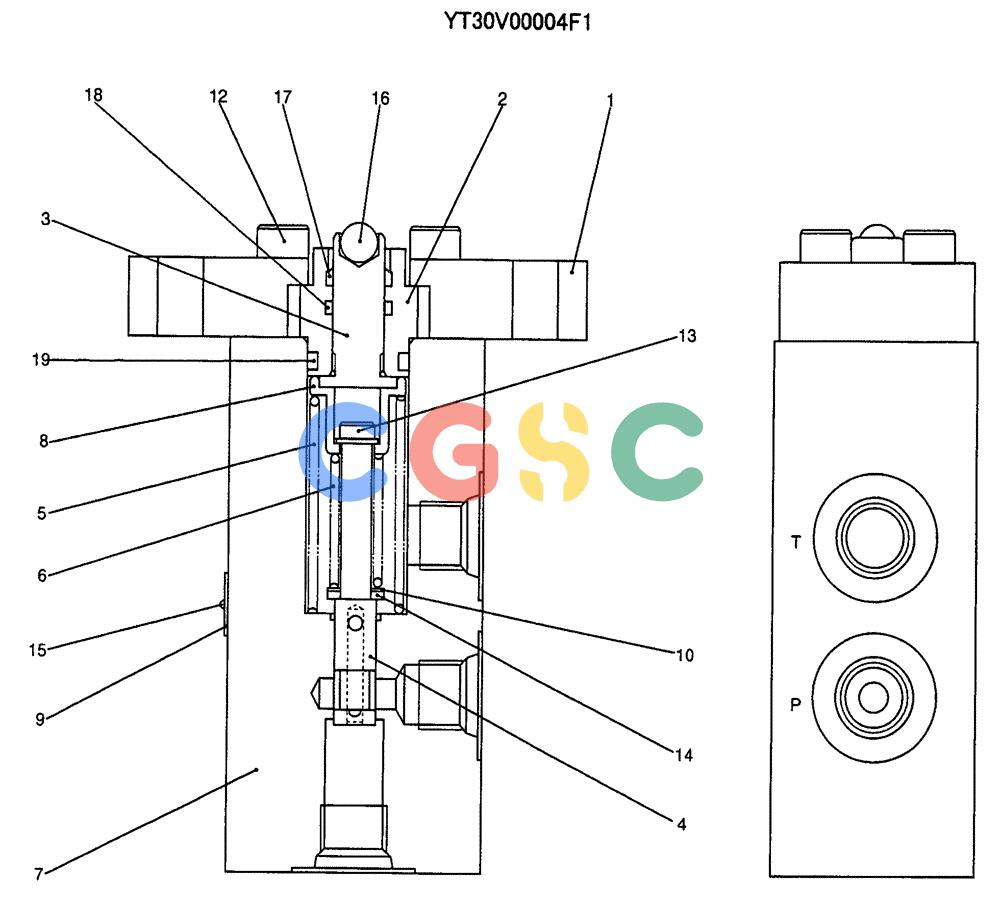

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-046) - VALVE ASSY, PILOT (BREAKER, OFFSET BOOM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
272 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00004F1 | [1] | PILOT VALVE | KOBASSY |
| 1. | 2436U1200S11 | [1] | COVER | KOB |
| 2. | 2436U1142S2 | [1] | SOCKET | KOB |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONPUSHER |
| 5. | YR30V00004S012 | [1] | SPRING | KOB |
| 6. | YR30V00013S009 | [1] | SPRING | KOB |
| 8. | YT30V00004S008 | [1] | SLEEVE | KOB |
| 10. | YR30V00013S012 | [1] | SHIM | KOB(0.1) |
| 12. | 2436U1200S16 | [4] | CAPSCREW | KOBSCREW CAP |
| 13. | 2436U1354S15 | [1] | BOLT | KOB |
| 14. | 2436U1354S16 | [1] | WASHER | KOB |
| 15. | EZ30V00001S037 | [2] | SCREW | KOB |
| 17. | 2436U1142S25 | [1] | SCRAPER | KOBDUST |
| 18. | ZD11P01000 | [1] | O-RING | KOB |
| 19. | ZD11P01600 | [1] | O-RING | KOB |
| . . | 2436U1200R110 | [1] | PUSH ROD | KOBREPAIR KIT CONSISTS OF REF. 3 (1), 16 (1) |
| . . | YT30V00004R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 4 (1), 7 (1) |
