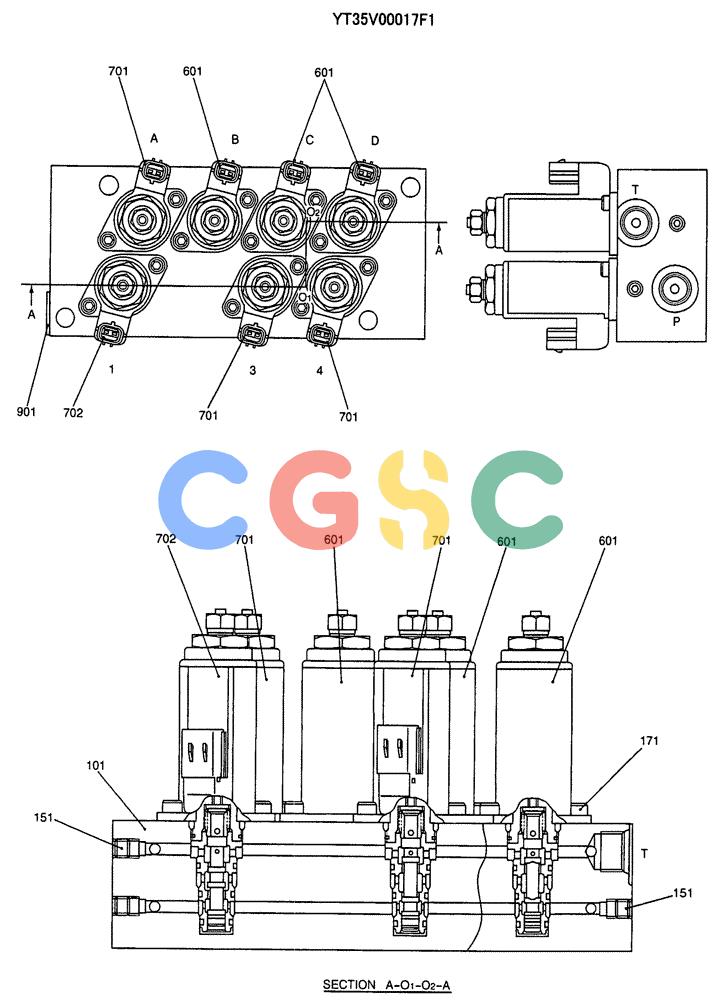

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-047) - VALVE ASSY, SOLENOID, P/N YT35V00017F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
414 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT35V00017F1 | [1] | SOLENOID VALVE | KOBVALVE ASSY, SOLENOID |
| 101. | YT35V00017S101 | [1] | CASE | |
| 151. | 2441U722S490 | [10] | PLUG | KOB |
| 171. | YX35V00002S171 | [14] | SCREW,Hex Socket Head, M5 x 12mm | KOBCAP Superseded by part number: ZS23C05012 |
| 601. | YB35V00005F1 | [3] | SOLENOID VALVE | KOBASSY, SOLENOID, SEE FIG. 07-051 Superseded by part number: YN35V00048F1 |
| 701. | YT35V00013F1 | [3] | SOLENOID VALVE | KOBASSY, (Travel Speed Sensor), SEE FIG. 07-048 Superseded by part number: YN35V00050F1 |
| 702. | YT35V00014F1 | [1] | CARTRIDGE | KOBASSY, SOLENOID, SEE FIG. 07-049 |
| 901. | NSS | [1] | NOT SERVICED SEPARATELY | CONNAME PLATE |
