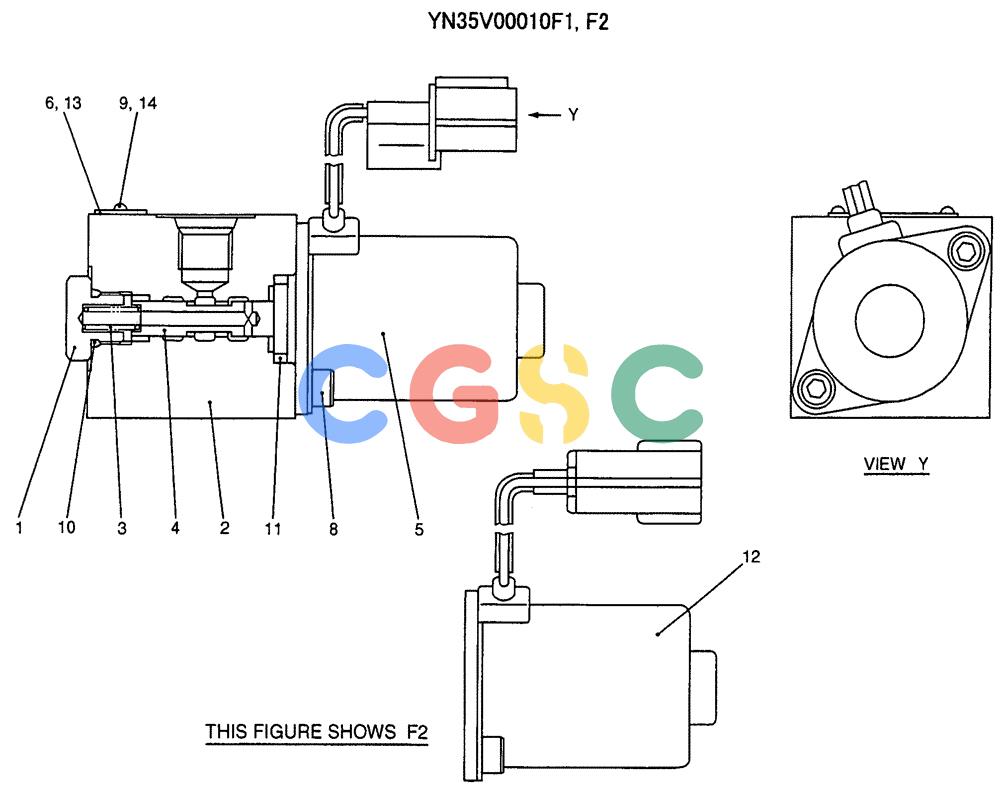

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-052) - VALVE ASSY, SOLENOID (DOZER, HAND CONTROL) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00010F1 | [1] | SOLENOID VALVE | KOBASSY |
| . . | YN35V00010F2 | [1] | VALVE | KOBASSY, SOLENOID |
| 1. | 2436U2159S3 | [1] | PLUG | KOB |
| 2. | YN35V00010S002 | [1] | BODY | KOB |
| 3. | 2436U2802S3 | [1] | SPRING | KOB |
| 4. | YN35V00010S004 | [1] | SPOOL | KOB |
| 5. | YN35V00010S005 | [1] | SOLENOID VALVE | KOB(F1 ONLY) |
| 6. | NSS | [1] | NOT SERVICED SEPARATELY | CONNAME PLATE, (F1 ONLY) |
| 8. | EN35V00004S010 | [2] | BOLT | KOBCAP |
| 10. | ZD11P01000 | [1] | O-RING | KOB |
| 11. | ZD11P01600 | [1] | O-RING | KOB |
