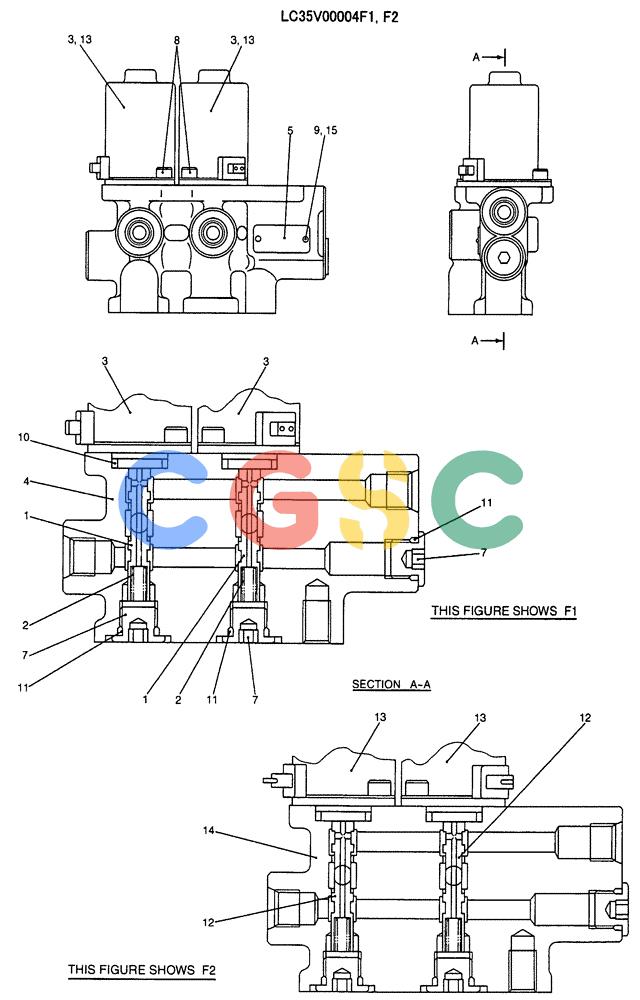

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-053) - VALVE ASSY, SOLENOID (HAND CONTROL) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
231 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC35V00004F1 | [1] | SOLENOID VALVE | KOBASSY |
| . . | LC35V00004F2 | [1] | SOLENOID VALVE | KOBASSY |
| 1. | NSS | [2] | NOT SERVICED SEPARATELY | CONSPOOL, (F1 ONLY) |
| 2. | 2436U2802S3 | [2] | SPRING | KOB |
| 3. | LC35V00004S005 | [2] | VALVE | KOBASSY, SOLENOID, (F1 ONLY) |
| 7. | LC35V00004S007 | [3] | PLUG | KOB |
| 8. | LC35V00004S008 | [4] | SCREW | KOBCAP |
| 9. | EZ30V00001S037 | [2] | SCREW | KOBRIVET, (F1 ONLY) |
| 10. | ZD11P01600 | [2] | O-RING | KOB |
| 11. | ZD12P01100 | [3] | O-RING | KOB |
| 13. | YR35V00009S022 | [2] | SOLENOID VALVE | KOBASSY, SOLENOID, (F2 ONLY) |
| 15. | YN30V00080S023 | [2] | SCREW | KOBRIVET, (F2 ONLY) |
