纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (07-054) - VALVE ASSY, SELECTOR (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
974 次

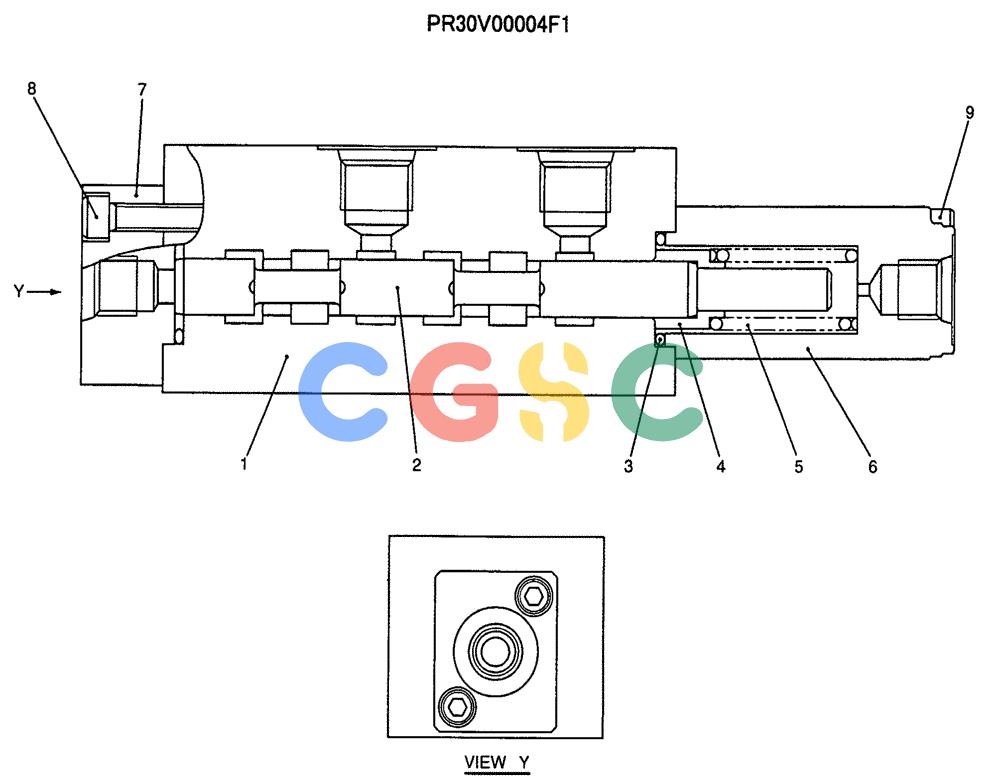

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | PR30V00004F1 | [1] | VALVE | KOBASSY, SELECTOR |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 3. | ZD12P02200 | [2] | O-RING | KOB |
| 4. | 2436R897S8 | [1] | SPRING | KOBSEAT |
| 5. | PR30V00004S005 | [1] | SPRING | KOB |
| 6. | 2436R1756S3 | [1] | COVER | KOB |
| 7. | PR30V00004S007 | [1] | COVER | KOB |
| 8. | ZS23C06025 | [2] | SCREW,Hex Socket Head, M6 x 25mm | KOBCAP |
| 9. | ZS23C06070 | [2] | SCREW,Hex Socket Head, M6 x 70mm | KOBCAP |
