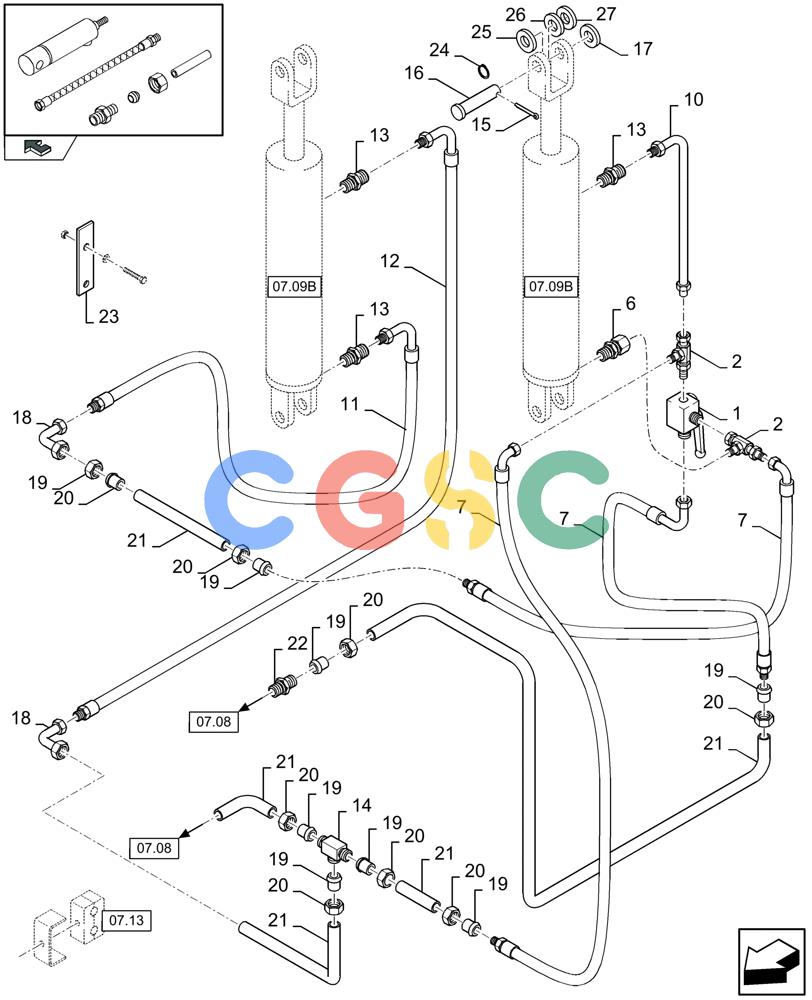

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (07.09[01]) - DENSITY PRESSER SYSTEM, REAR, WITH BALE EJECT SYSTEM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84100885
|
[1] |
DRAINCOCK/TAP SUPPLY
|
ZED
|
| 2. |
84064562
|
[3] |
HYD CONNECTOR
|
ZED
|
| 6. |
84452214
|
[1] |
HYD CONNECTOR
|
ZED
|
| 7. |
84078517
|
[3] |
FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1
|
ZED
|
| 8. |
80412152
|
[2] |
NUT
|
ZED
Superseded by part number: 412152
|
| 9. |
80043118
|
[2] |
SCREW
|
ZED
Superseded by part number: 120102
|
| 10. |
84452223
|
[1] |
HYD TUBE,261.9, 83.8 mm L
|
ZED
|
| 10. |
84452439
|
[1] |
HYD TUBE,287.9, 139.6 mm L
|
ZED
|
| 12. |
84064567
|
[1] |
FLEXIBLE HOSE
|
ZED
|
| 13. |
84043514
|
[3] |
HYD CONNECTOR
|
ZED
|
| 14. |
80379430
|
[1] |
3 WAY CONNECTION
|
ZED
, Serial Range: -C663 Superseded by part number: 379430
|
| 15. |
80130011
|
[4] |
COTTER PIN
|
ZED
, Serial Range: -C499 Superseded by part number: 130011
|
| 16. |
89837630
|
[4] |
SHAFT
|
ZED
, Serial Range: -C499 Superseded by part number: 87346867
|
| 16. |
87346867
|
[4] |
SHAFT
|
ZED
, Start Serial: D500
|
| 17. |
80378248
|
[4] |
WASHER
|
ZED
25 MM Superseded by part number: 378248
|
| 18. |
80418283
|
[2] |
ELBOW
|
ZED
Superseded by part number: 418283
|
| 19. |
80335136
|
[1] |
FERRULE
|
ZED
8 MM Superseded by part number: 335136
|
| 20. |
80335135
|
[1] |
NUT
|
ZED
M8 Superseded by part number: 335135
|
| 21. |
80371540
|
[1] |
RIGID TUBE
|
ZED
D= 8 MM, L= 2 M Superseded by part number: 371540
|
| 22. |
80335172
|
[2] |
HYD CONNECTOR
|
ZED
Superseded by part number: 335172
|
| 23. |
84007699
|
[1] |
COVER PLATE
|
ZED
|
| 24. |
370002
|
[4] |
CIRCLIP,M25, External
|
NH
, Start Serial: D500
|
| 25. |
916107
|
[4] |
WASHER,25.5mm ID x 35mm OD x 4mm Thk
|
ZED
, Start Serial: D588
|
| 26. |
338206
|
[4] |
WASHER,26mm ID x 35mm OD x 2mm Thk
|
ZED
, Start Serial: D588
|
| 27. |
419854
|
[4] |
WASHER,26mm ID x 35mm OD x 1mm Thk
|
ZED
, Start Serial: D588
|
