纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-002) - CYLINDER HEAD COVER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
734 次

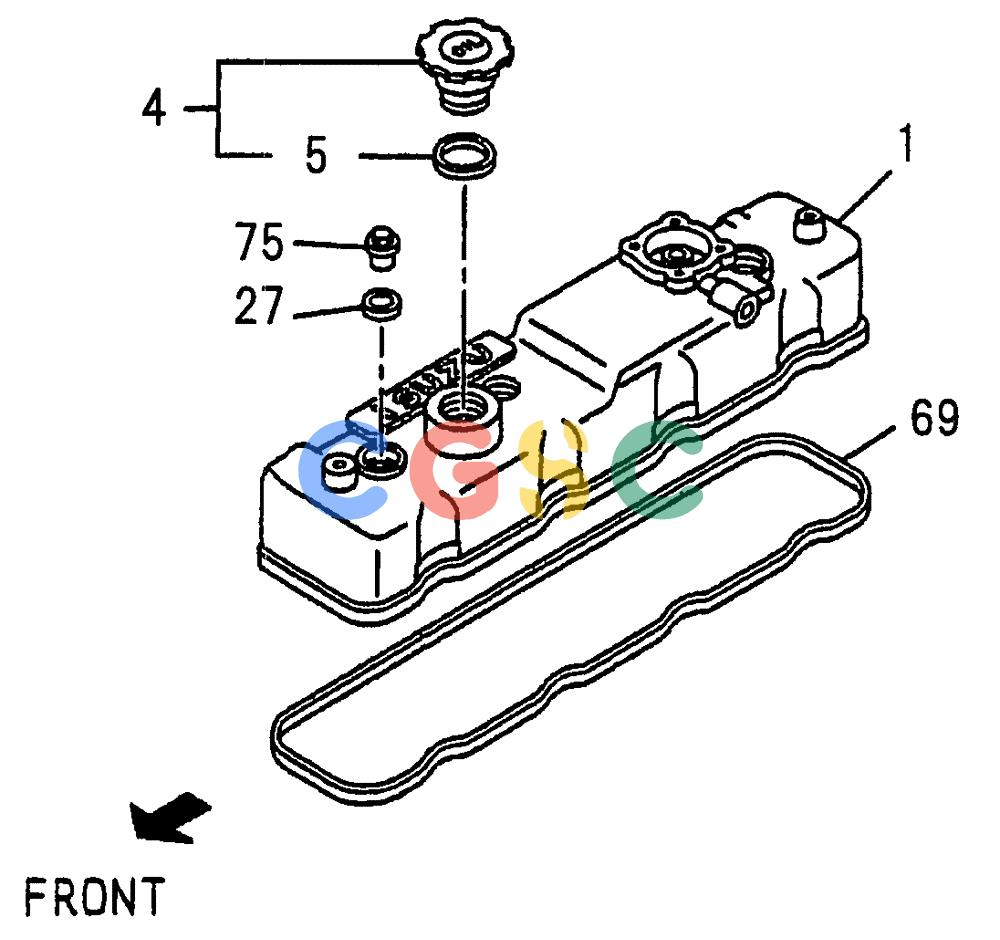

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8970817422 | [1] | COVER | KOBCOVER; CYL HD |
| 4. | VI8941332075 | [1] | FILLER CAP | KOBCAP; OIL FILLER |
| 5. | VI8941236231 | [1] | GASKET | KOBGASKET; OIL FILLER ID=32 OD=40 |
| 27. | VI8942024563 | [3] | GASKET | KOBGASKET; HD COVER ID=19.6 |
| 69. | VI8973494160 | [1] | GASKET | KOBGASKET; HD TO COVER Superseded by part number: VI8973494161 |
| 75. | VI8941581080 | [3] | NUT | KOBNUT; CAP, HD COVER M8 OD=19 |
