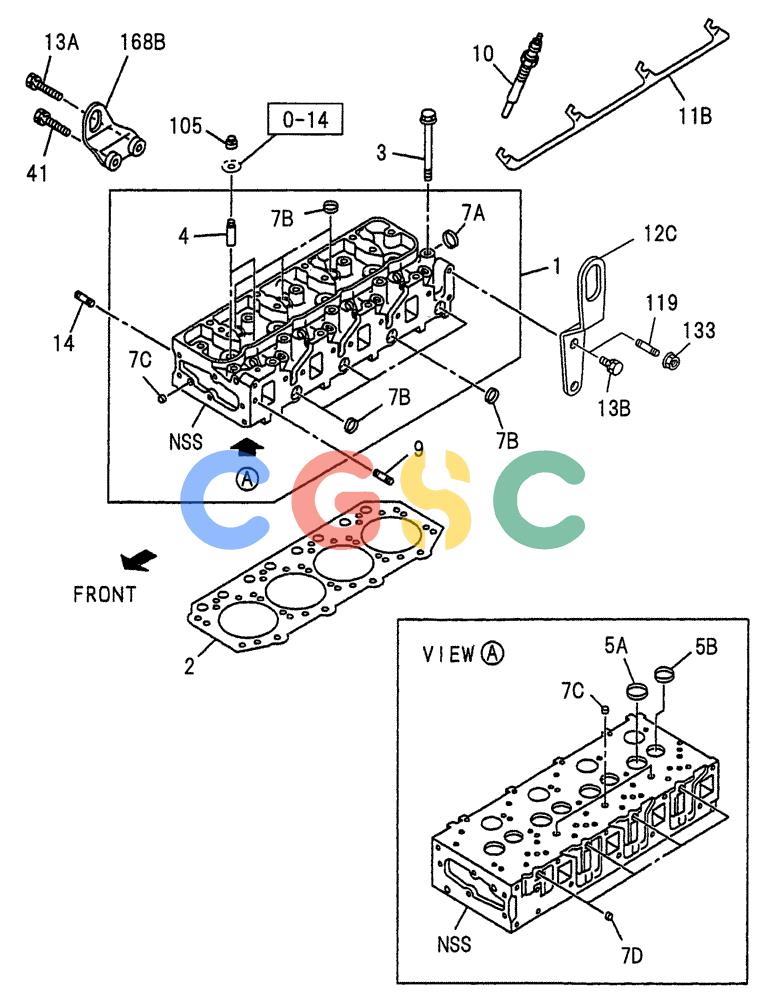

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-003) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8971096423 | [1] | CYLINDER HEAD | KOBHEAD ASM; CYL |
| 2. | VI8970661960 | [1] | GASKET | KOBGASKET; CYL HD T=1.60, 1-HOLE |
| 2. | VI8970661970 | [1] | GASKET | KOBGASKET; CYL HD T=1.65, 2-HOLE |
| 2. | VI8970661980 | [1] | GASKET | KOBGASKET; CYL HD T=1.70, 3-HOLE Superseded by part number: 8970661980 |
| 3. | VI8971334161 | [18] | BOLT | KOBBOLT; CYL HD TO BLOCK, M11 X 122 |
| 4. | VI5117210160 | [8] | GUIDE | KOBGUIDE; VLV |
| 5A. | VI8972312280 | [4] | INSERT | KOBSEAT; VLV INSERT INLET |
| 5B. | VI8972312290 | [4] | INSERT | KOBSEAT; VLV INSERT EXHAUST |
| 7A. | VI8973514510 | [1] | CUP | KOBCUP; SEALING, CYL HEAD, OD=45 Superseded by part number: VI8970365501 |
| 7B. | VI8972096090 | [7] | SEAL | KOBCUP; SEALING, CYL HEAD, OD=22 |
| 7C. | VI5111290060 | [3] | SEAL | KOBCUP; SEALING, CYL HEAD, OD=16 |
| 7D. | VI5096000130 | [5] | CUP | KOBCUP; SEALING, CYL HEAD, OD=12.3 Superseded by part number: VI8970363351 |
| 9. | VI9041108250 | [1] | STUD | KOBSTUD; INL MAN IF M8 X 25, L=37 Superseded by part number: VI0410108250 |
| 9. | VI9096300341 | [1] | STUD; INL MAN IF M8 X 35, L=46 | |
| 10. | VI1825130442 | [4] | PLUG | KOBPLUG; GLOW SILVER Superseded by part number: VI1825130443 |
| 11B. | VI8941537232 | [1] | CONNECTION | KOBCONNECTOR; GLOW PLUG |
| 12C. | VI8980051030 | [1] | HANGER; ENG, RR | |
| 13A. | VI0286808250 | [1] | BOLT | KOBBOLT; HANGER M8 X 25 FLANGE |
| 13B. | VI0286808200 | [2] | BOLT | KOBBOLT; HANGER M8 X 20 FLANGE Superseded by part number: 84284784 |
| 14. | VI9041108350 | [2] | STUD | KOBSTUD; EXH MAN IF M8 X 35, L=47 |
| 41. | VI0286810300 | [1] | BOLT | KOBBOLT; ENG HANGER M10X30, FLANGE |
| 105. | VI8971203070 | [8] | VALVE | KOBSEAL; OIL VLV STEM |
| 133. | VI0911502080 | [2] | NUT | KOBNUT; ENG HANGER Superseded by part number: VI0911802080 |
| 168B. | VI8944404290 | [1] | HANGER | KOBHANGER; ENG, FRT |
