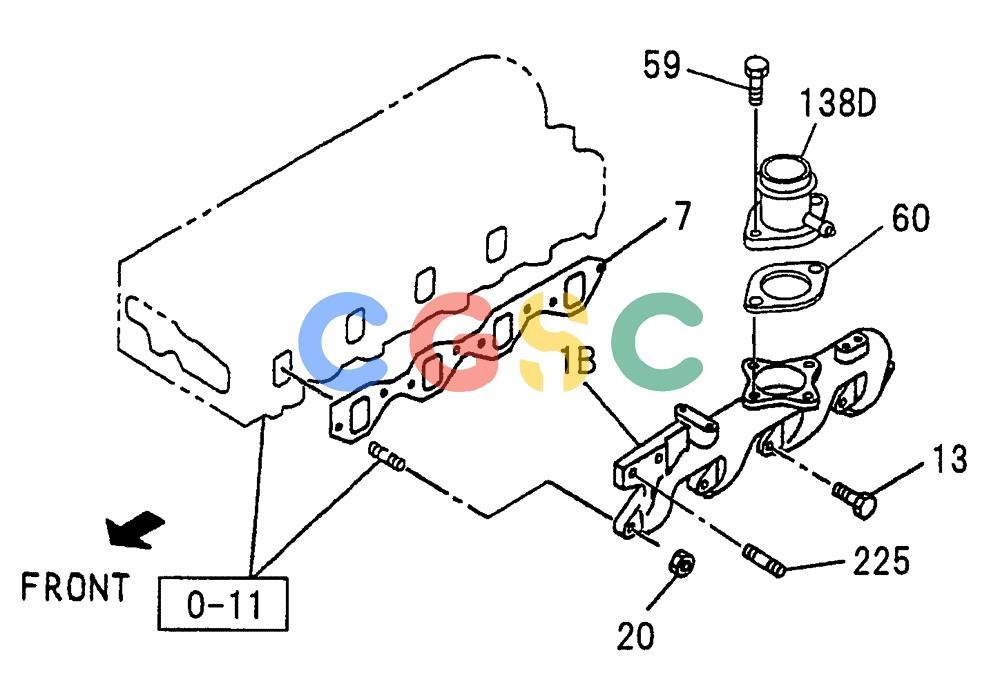

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-010) - INLET MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8970114882 | [1] | MANIFOLD | KOBMANIFOLD; INL |
| 7. | VI8972125400 | [1] | PACKING | KOBGASKET; INL MANIF TO HD |
| 13. | VI0280808250 | [6] | BRACKET | KOBBOLT; INL MANIF M8 X 25, FLANGE Superseded by part number: VI0280508250 |
| 20. | VI0911502080 | [2] | NUT | KOBNUT; INL MANIF Superseded by part number: VI0911802080 |
| 59. | VI0286810250 | [2] | BOLT | KOBBOLT; INL PIPE TO MANIF, M10 X 25 FLANGE |
| 60. | VI8970225710 | [1] | GASKET | KOBGASKET; INL PIPE |
| 138D. | VI8973594470 | [1] | PIPE | KOBPIPE; INL |
| 225. | VI9096300200 | [2] | PIPE | KOBSTUD; FUEL FILTER M10 X 24, L=41 Superseded by part number: VI8943427130 |
