纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-011) - EXHAUST MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
979 次

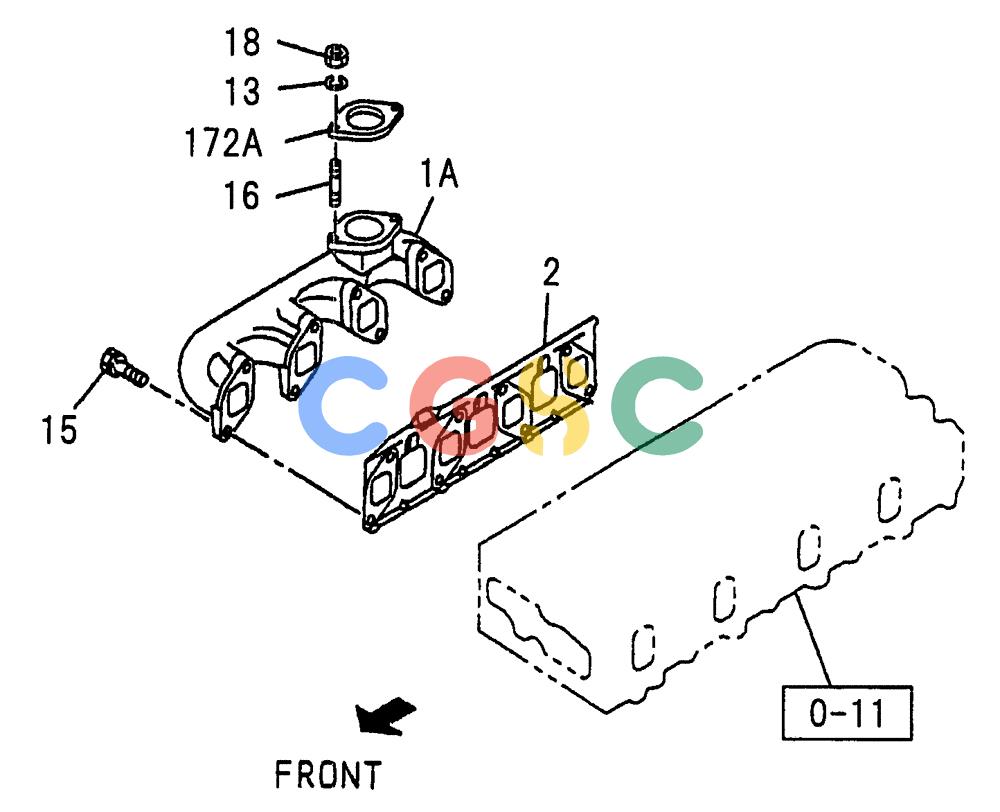

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1A. | VI894451-9902 | [1] | MANIFOLD; EXHAUST | |
| 2. | VI897350-3170 | [1] | GASKET; EXH MANIFOLD TO HD | |
| 13. | VI909150-5080 | [2] | WASHER; LK, EXH MANIFOLD | |
| 15. | VI050040-8300 | [6] | BOLT | KOBBOLT; EXH MANIFOLD M8 X 30, W/LK WASHER Superseded by part number: VI028080-8300 |
| 16. | VI904110-8250 | [2] | STUD; EXH PIPE TO MANIFOLD, M8 X 25 L=37 | |
| 18. | VI909110-4080 | [2] | NUT; EXH MANIF | |
| 172A. | VI8970161010 | [1] | GASKET | KOBGASKET; EXH PIPE |
