纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-013) - WATER PUMP AND CORROSION RESISTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
565 次

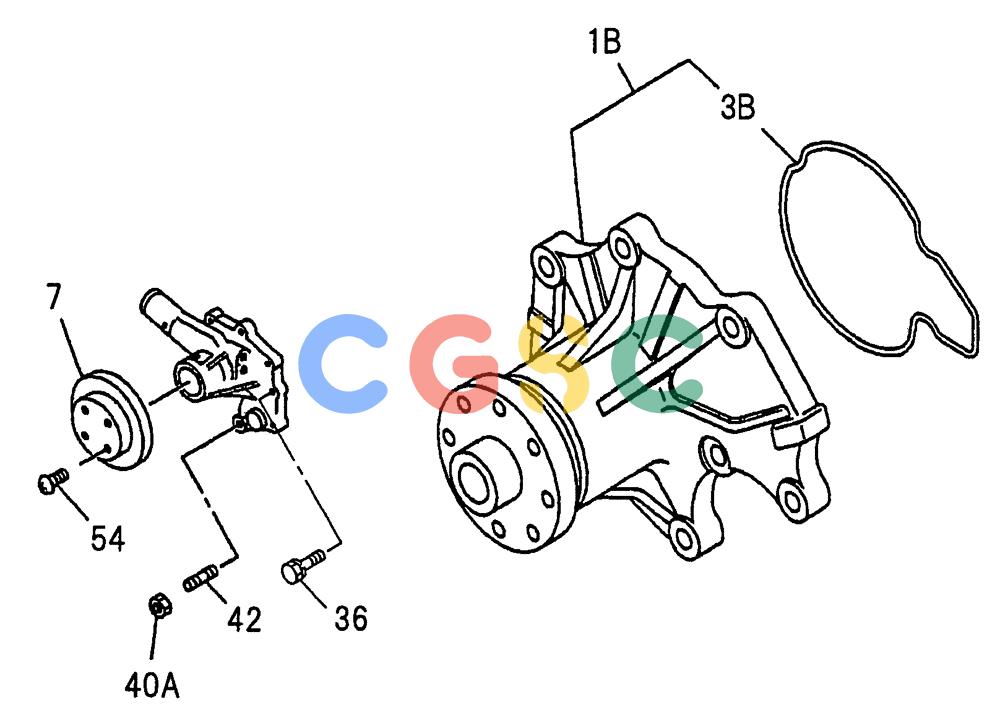

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8971050123 | [1] | PUMP | KOBPUMP ASM; WATER, W/GASKET Superseded by part number: 86989920 |
| 3B. | VI8941780810 | [1] | GASKET | KOBGASKET; PUMP TO C/B Superseded by part number: VI8941780811 |
| 7. | VI8980044530 | [1] | PULLEY | KOBPULLEY; WATER PUMP 1-GROOVE OD=130 |
| 36. | VI1090440711 | [1] | BOLT | KOBBOLT; WATER PUMP TO C/BL M8 X 55 FLANGE |
| 40A. | VI8942248290 | [2] | NUT | KOBNUT; WATER PUMP M8 |
| 42. | VI9041108220 | [2] | STUD | KOBSTUD; WATER PUMP M8 X 22, L=33 |
| 54. | VI0208006120 | [2] | BOLT | KOBBOLT; PULLEY M6 X 10 |
