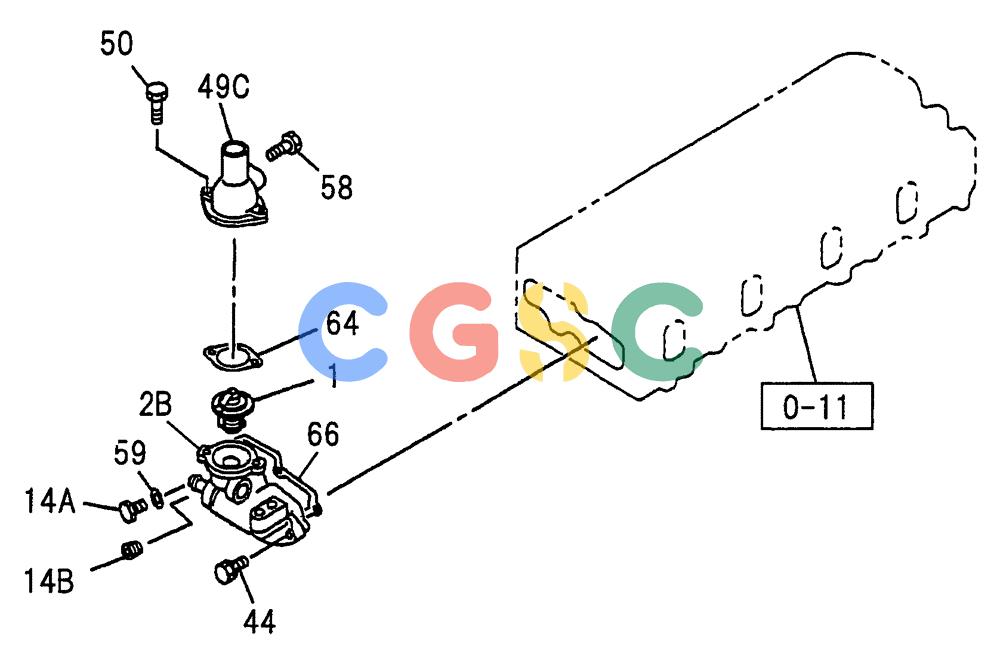

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-014) - THERMOSTAT AND HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8972112090 | [1] | THERMOSTAT | KOBTHERMOSTAT 82°C |
| 2B. | VI8944288120 | [1] | HOUSING | KOBHOUSING; THERMOSTAT |
| 14A. | VI9096610050 | [1] | PLUG | KOBPLUG; SW M16 X 8 PLUG |
| 14B. | VI5096050050 | [1] | PLUG | KOBPLUG; SW PT 3/8 |
| 44. | VI0286808300 | [3] | BOLT | KOBBOLT; HSG TO HD M8 X 30, FLANGE |
| 44. | VI0280808700 | [2] | BOLT | KOBBOLT; HSG TO HD M8 X 70, FLANGE Superseded by part number: VI0280508700 |
| 49C. | VI8972178270 | [1] | PIPE | KOBPIPE; WATER OUTLET |
| 59. | VI5095713160 | [1] | GASKET | KOBGASKET; PLUG |
| 64. | VI8943656742 | [1] | GASKET | KOBGASKET; OUTLET PIPE TO HSG Superseded by part number: 355244A1 |
| 66. | VI8972125370 | [1] | GASKET | KOBGASKET; THERMOSTAT HSG Superseded by part number: VI8972125371 |
