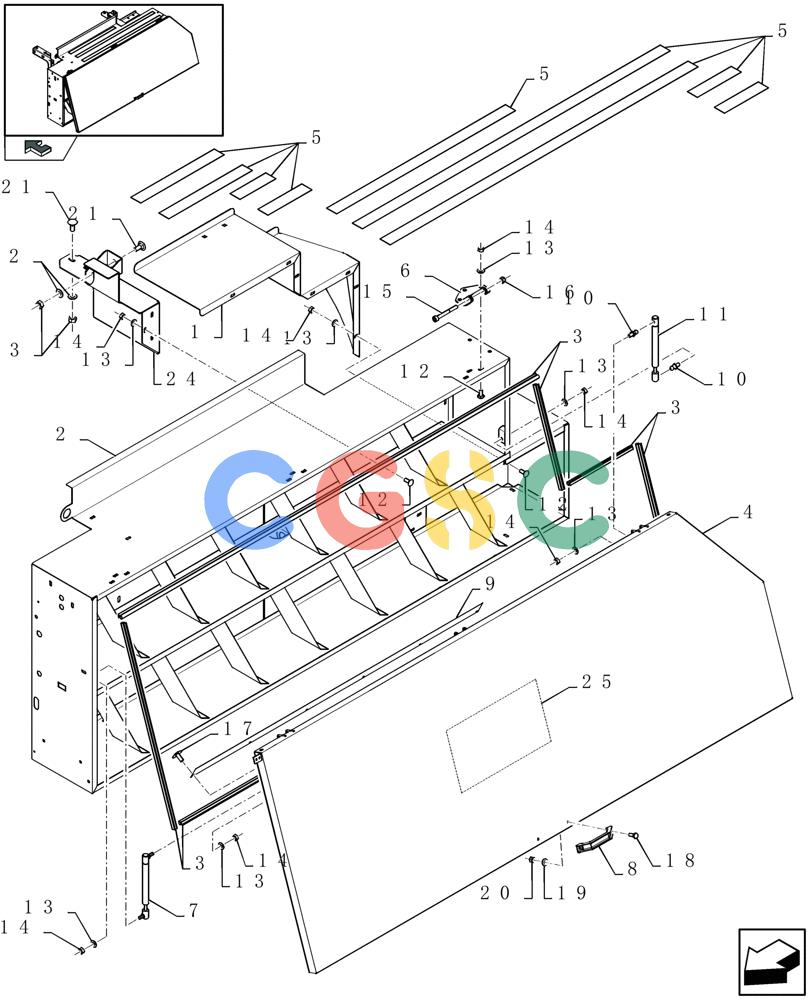

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (08.008[01]) - TWINE BOX, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
198 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84444411
|
[1] |
PLATE
|
ZED
|
| 2. |
84819204
|
[1] |
BOXED PANEL
|
ZED
red, Serial Range: -C619
|
| 2. |
87654664
|
[1] |
TWINE BOX
|
ZED
grey, Start Serial: D620
|
| 3. |
84607251
|
[1] |
RUBBER WEATHERSTRIP
|
ZED
Superseded by part number: 84818178
|
| 4. |
84818164
|
[1] |
DOOR
|
ZED
|
| 5. |
80401502
|
[1] |
ANTI-SKID STRIP
|
ZED
Superseded by part number: 401502
|
| 6. |
84807858
|
[3] |
HINGE
|
ZED
|
| 7. |
84078857
|
[1] |
GAS STRUT
|
ZED
|
| 8. |
89837395
|
[1] |
HANDLE
|
ZED
Superseded by part number: 9837395
|
| 9. |
84819414
|
[1] |
CANVAS
|
ZED
|
| 10. |
89837364
|
[2] |
BALL JOINT
|
ZED
Superseded by part number: 9837417
|
| 11. |
89837397
|
[1] |
GAS STRUT
|
ZED
Superseded by part number: 9837397
|
| 12. |
86507486
|
[19] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
80322358
|
[23] |
LOCK WASHER
|
ZED
8 MM Superseded by part number: 322358
|
| 14. |
89706690
|
[23] |
NUT,M8, Cl 8
|
ZED
Superseded by part number: 43362
|
| 15. |
89839580
|
[3] |
SCREW,Hex Soc Hd, M8 x 70, 8.8
|
ZED
|
| 16. |
832-46408
|
[3] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 17. |
NS
|
[6] |
NOT SERVICED
|
BAS
rivet
|
| 18. |
86508568
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 19. |
80322357
|
[2] |
LOCK WASHER,Belleville, M6
|
ZED
Superseded by part number: 322357
|
| 20. |
15896221
|
[2] |
NUT,Hex, M6, 5.20mm High, Cl 10
|
ZED
Superseded by part number: 86500688
|
| 21. |
80338949
|
[4] |
CARRIAGE BOLT
|
ZED
M10 x 25 Superseded by part number: 338949
|
| 22. |
80140045
|
[4] |
WASHER
|
ZED
10 MM Superseded by part number: 140045
|
| 23. |
100016
|
[4] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 24. |
84444404
|
[1] |
SUPPORT
|
ZED
|
| 24. |
84444406
|
[1] |
SUPPORT
|
ZED
|
| 25. |
87653141
|
[1] |
DECAL
|
ZED
red, Start Serial: D620
|
