纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-024) - STARTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
745 次

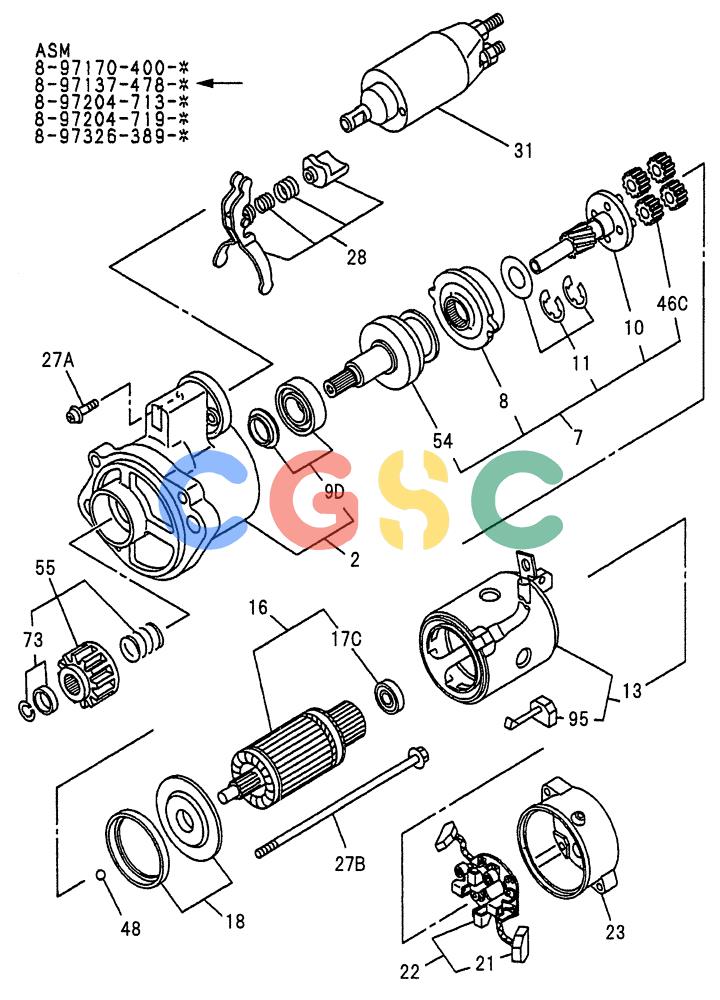

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8971374781 | [1] | STARTING MOTOR | KOBSTARTER ASM 24V-3.2kW Superseded by part number: VI8971374782 |
| 2. | VI8972109160 | [1] | CASE | KOBCASE; PINION, STARTER |
| 7. | VI8971164820 | [1] | CLUTCH | KOBCLUTCH ASM; PINION, STARTER |
| 8. | VI8971164850 | [1] | GEAR | KOBBRACKET; CENTER STARTER |
| 9D. | VI8971164810 | [1] | BEARING | KOBBEARING; GEAR SHAFT STARTER |
| 10. | VI8971164830 | [1] | SHAFT | KOBSHAFT; GEAR STARTER |
| 11. | VI8971164840 | [1] | WASHER | KOBWASHER; GEAR SHAFT STARTER |
| 13. | VI8972109180 | [1] | YOKE; STARTER | |
| 16. | VI8972312800 | [1] | ARMATURE | KOBARMATURE; STARTER |
| 17C. | VI1811298370 | [1] | BEARING | KOBBEARING; ARMATURE, STARTER |
| 18. | VI8971164890 | [1] | WASHER | KOBWASHER; THRUST, ARMATURE STARTER |
| 21. | VI8971165160 | [4] | SPRING | KOBSPRING; BRUSH HOLDER STARTER |
| 22. | VI8971165110 | [1] | HOLDER | KOBHOLDER; BRUSH STARTER |
| 23. | VI8972109170 | [1] | COVER | KOBCOVER; RR COVER STARTER |
| 27A. | VI8971164950 | [1] | BOLT | KOBBOLT; THROUGH, STARTER |
| 27B. | VI8971165140 | [1] | SCREW | KOBBOLT; THROUGH, STARTER |
| 28. | VI8971164920 | [1] | LEVER | KOBLEVER; SHIFT, STARTER |
| 31. | VI8971161940 | [1] | SWITCH; ENGAGE STARTER | |
| 46C. | VI8971164900 | [4] | BRACKET | KOBGEAR; CLU STARTER |
| 48. | VI8971165150 | [1] | BALL | KOBBALL; PINION, STARTER |
| 54. | VI8971164880 | [1] | CLUTCH | KOBCLUTCH; PINION, STARTER |
| 55. | VI8971376060 | [1] | PINION | KOBPINION; CLU, STARTER |
| 73. | VI8944756880 | [1] | STOP | KOBSTOPPER SET; PINION |
| 95. | VI8971165100 | [2] | BRUSH | KOBBRUSH SET; (+) & (-), STARTER |
