纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (08-025) - GENERATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
673 次

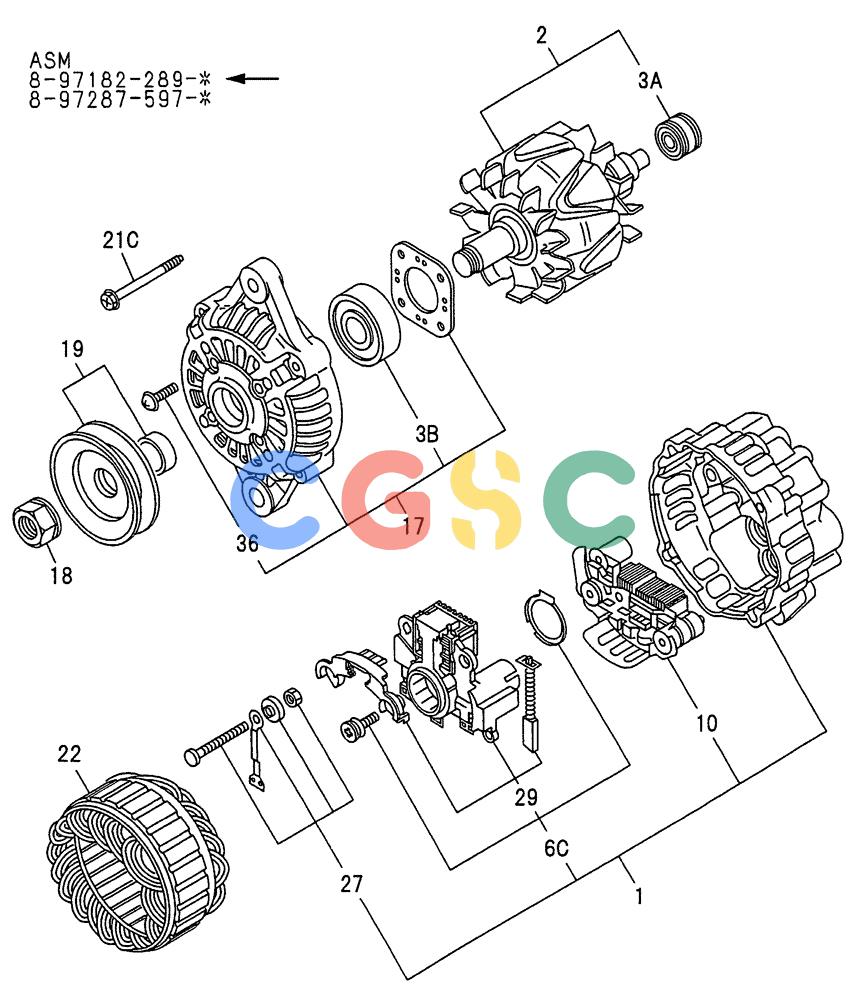

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | VI8971822892 | [1] | GENERATOR | KOBGENERATOR ASM 24V-30A |
| 1. | VI8971846390 | [1] | COVER | KOBCOVER ASM; RR, GEN |
| 2. | VI8971846250 | [1] | ROTOR | KOBROTOR; GEN |
| 3A. | VI8971447410 | [1] | BEARING | KOBBEARING; ROTOR, GEN |
| 3B. | VI8971447400 | [1] | BEARING | KOBBEARING; ROTOR, GEN |
| 6C. | VI8971846280 | [1] | VOLTAGE REGULATOR | KOBREGULATOR ASM; VOLTAGE, GEN |
| 10. | VI8971846290 | [1] | ALTERNATOR | KOBRECTIFIER; GEN |
| 17. | VI8971846240 | [1] | COVER | KOBCOVER ASM; FRT, GEN |
| 18. | VI8971453270 | [1] | NUT | KOBNUT; PULLEY, GEN |
| 19. | VI8971846330 | [1] | PULLEY | KOBPULLEY; GEN |
| 21C. | VI8971453280 | [1] | BOLT | KOBBOLT; THROUGH, GEN |
| 22. | VI8971846270 | [1] | ALTERNATOR | KOBSTATOR; GEN |
| 27. | VI8971455160 | [1] | NUT | KOBNUT; RECTIFIER, GEN |
| 29. | VI8971447380 | [1] | BRUSH | KOBBRUSH; GEN |
| 36. | VI8971447270 | [1] | SCREW | KOBSCREW; FRT COVER |
