神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (01-011) - TANK ASSY, FUEL (FOR ALASKA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
198 次

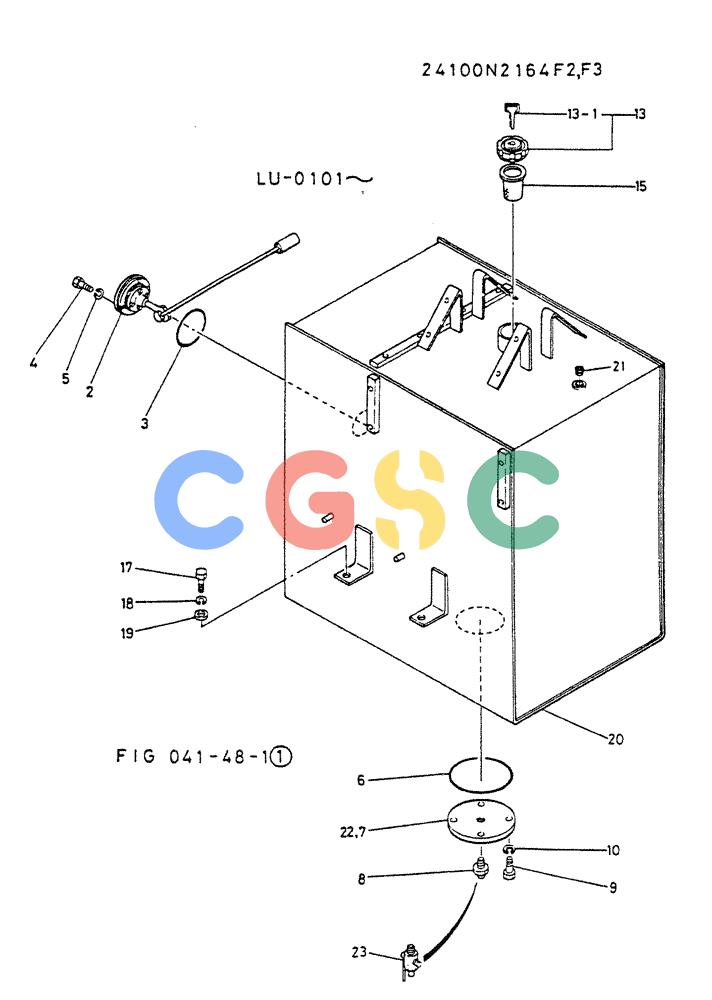

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2164F2 | [1] | TANK ASSY, FUEL, Serial Range: LU.0101--LU-0132 | |
| . . | 24100N2164F3 | [1] | TANK ASSY, FUEL, Start Serial: LU.0133— | |
| 2. | 2427U202F1 | [1] | SENDER UNIT | KOB |
| 3. | ZD11G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.61 x OD 90mm |
| 4. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 5. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 6. | ZD11G16500 | [1] | O-RING,164.30mm ID x 175.70mm OD x 5.70mm | KOBID 164.30 ± 1.30 x OD 175.7mm |
| 7. | 241BT7903 | [1] | FLANGE, Serial Range: LU.0101--LU-0132 | |
| 8. | 2436Z277 | [1] | BLEEDER | KOB, Serial Range: LU.0101--LU-0132 |
| 9. | ZS11C12030 | [4] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 10. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 13. | 2414Z197D3 | [1] | FILLER CAP | KOB |
| 13-1. | 2420Z754 | [1] | KEY | KOB |
| 15. | R36T0006 | [1] | STRAINER ELEMENT | KOB |
| 17. | ZS12C16040 | [6] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 18. | ZW22X16000 | [6] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 19. | ZW11X16000 | [6] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 20. | 2427J1120D2 | [1] | TANK, FUEL | |
| 21. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 22. | 2418T15157 | [1] | FLANGE, Start Serial: LU.0133- | |
| 23. | 2436R241F1 | [1] | COCK | KOB, Start Serial: LU.0133- Superseded by part number: LC20P01028P1 |
