神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (01-012) - PUMP ASSY, FUEL (FOR ALASKA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
362 次

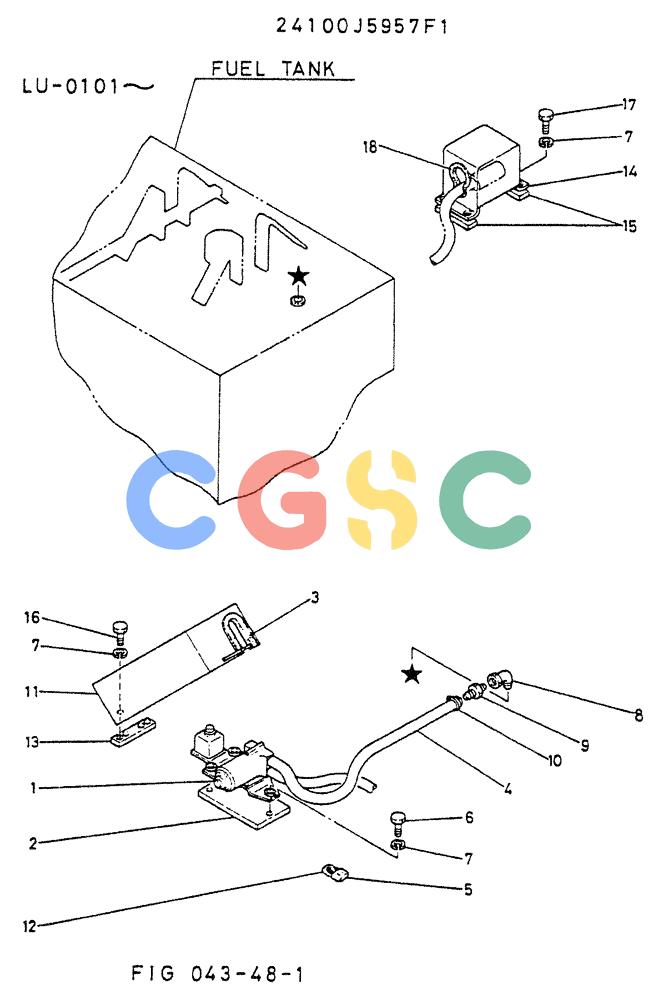

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5957F1 | [1] | PUMP ASSY, FUEL | |
| 1. | 24100R156F1 | [1] | PUMP ASSY, HYD OIL | PUMP ASSY, HYD OIL |
| 2. | 2418T10319 | [1] | PLATE PLATE | PLATE PLATE |
| 3. | 2416Z263D2 | [1] | FOAM INSULATION | KOBSEAT, RUBBER |
| 4. | 2444Z2580D1 | [1] | HOSE | |
| 5. | 21Z1 | [1] | WRENCH | KOBKEY, LOCK PAD |
| 6. | ZS17C08030 | [3] | CAPSCREW | |
| 7. | ZW26X08000 | [11] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | 2444Z2130D1 | [1] | ELBOW | ELBOW |
| 9. | 2444Z2129D1 | [1] | NIPPLE | NIPPLE |
| 10. | ZC15X02600 | [2] | CLAMP | KOB |
| 11. | 2414N2526 | [1] | COVER | |
| 12. | 2416T12798 | [1] | BRACKET | |
| 13. | 2416T12799 | [1] | BLOCK, TAPPED | |
| 14. | 2414N2465 | [1] | COVER | |
| 15. | 2416T12797 | [2] | BLOCK, TAPPED | |
| 16. | ZS17C08016 | [4] | BOLT M08x1.25x16mm | BOLT M08x1.25x16mm |
| 17. | ZS17C08012 | [4] | SCREW | KOBM08x1.25x12mm Superseded by part number: ZS18C08012 |
| 18. | 2416Z263D1 | [1] | SEAT, RUBBER | |
| 19. | 2479T1310 | [1] | HARNESS | |
