神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-002) - WINTERIZATION UNIT-FOR ALASKA P/N 24100T246F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
846 次

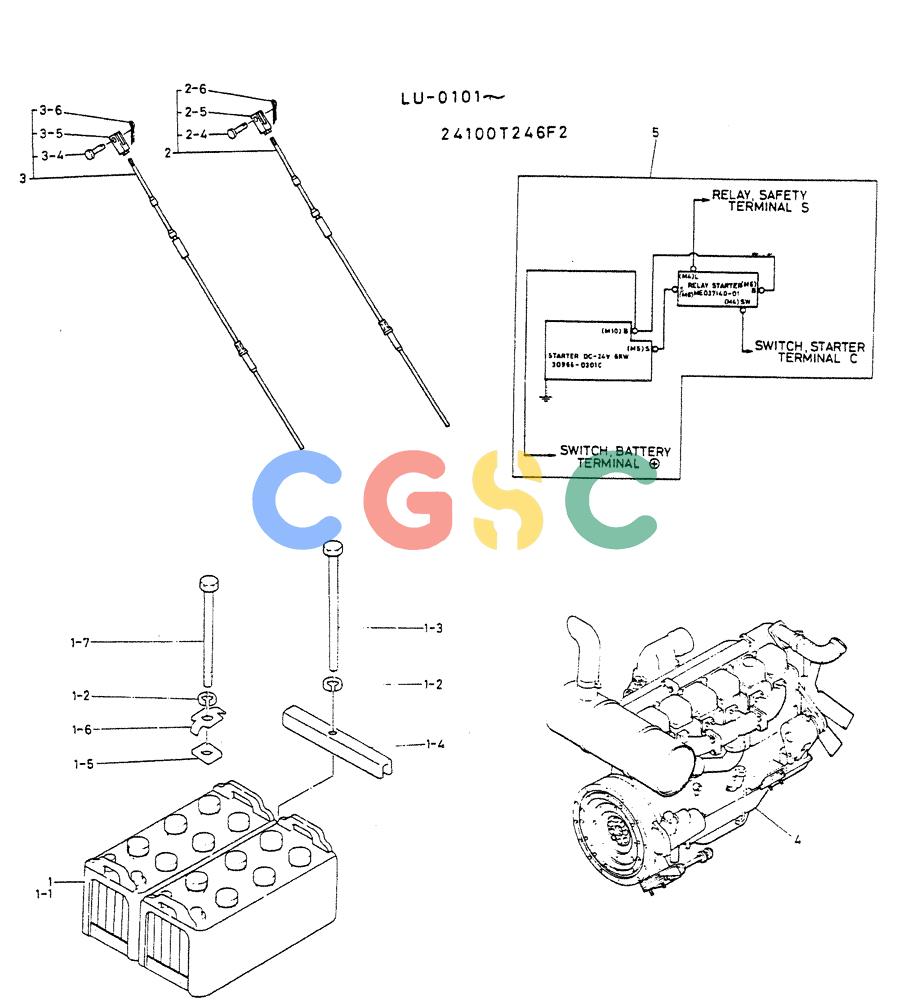

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100T246F2 | [1] | W1NTERIZATI0N UNIT | |
| 1. | 24100P465F1 | [1] | BATTERY ASSY | |
| 1-1. | 84252 | [2] | SPARE PART | ABATTERY |
| 1-2. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 1-3. | R20T0084D11 | [1] | CAPSCREW | |
| 1-4. | B16T0039 | [1] | SUPPORT | |
| 1-5. | B16T0040 | [1] | PLATE | |
| 1-6. | B16T0041 | [1] | PLATE | |
| 1-7. | R20T0064D10 | [1] | CAPSCREW | |
| 2. | 2430U144D8F1 | [1] | CABLE | KOB |
| 2-4. | R06T0042D1 | [1] | END | KOB |
| 2-5. | B19T0175 | [1] | PIN | KOB |
| 2-6. | ZP15K01210 | [1] | LOCK PIN | KOBCOTTER |
| 3. | 2430U144D9F1 | [1] | CABLE | KOB |
| 3-4. | R06T0042D1 | [1] | END | KOB |
| 3-5. | B19T0175 | [1] | PIN | KOB |
| 3-6. | ZP15K01210 | [1] | LOCK PIN | KOBCOTTER |
| 4. | 2451U207F3 | [2] | ENGINE ASSY | ENGINE ASSY |
| 5. | 24105T452 | [2] | HARNESS | |
