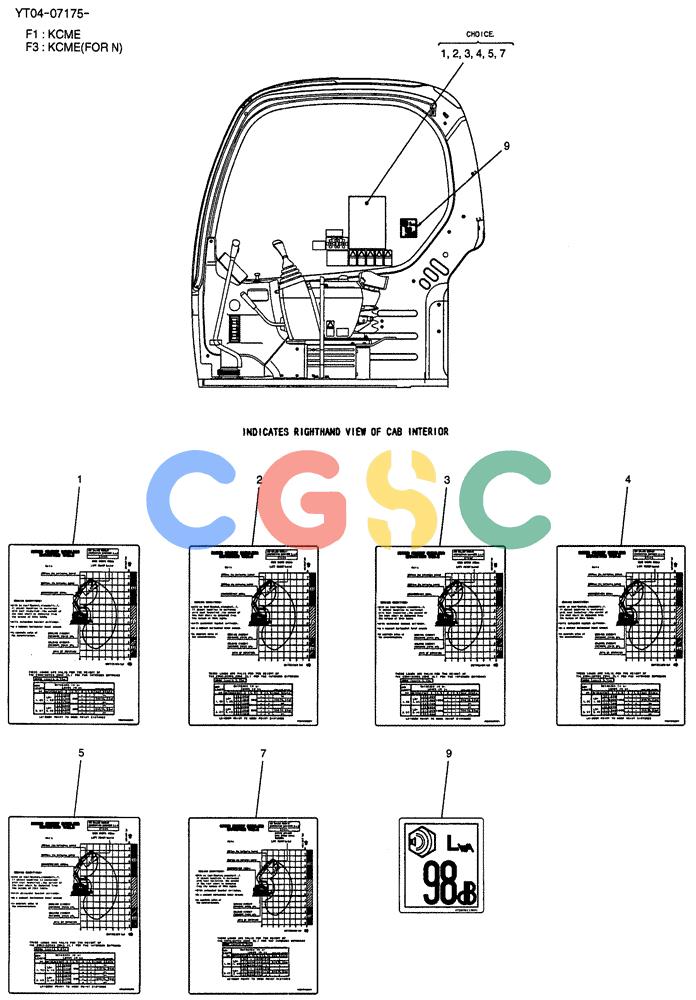

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (06-004) - NAME PLATE INSTAL (CAB), P/N YT22T00110F1 & F3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22T00110F1 | [1] | NAME PLATE INSTAL (KCME) | |
| 1. | YT20T01225P1 | [1] | DECAL | SMLABEL (450m/m SHOE) |
| 2. | YT20T01226P1 | [1] | DECAL | SMLABEL (600m/m SHOE) |
| 3. | YT20T01227P1 | [1] | DECAL | SMLABEL (450m/m SHOE) (WITH DOZER) |
| 4. | YT20T01228P1 | [1] | DECAL | SMLABEL (600m/m SHOE) (WITH DOZER) |
| 5. | YT20T01229P1 | [1] | LABEL | KOBLABEL (OFFSET BOOM 3.87M) (ARM 1.76M.2.06M) (450m/m SHOE) (WITH DOZER) |
| 9. | YT20T01178P1 | [1] | LABEL | KOBLABEL |
| . . | YT22T00110F3 | [1] | NAME PLATE INSTAL, KCME (FOR N) | |
| 7. | YT20T01231P1 | [1] | DECAL | SMLABEL (450m/m RUBBER SHOE) (WITH DOZER-ADD.C/W) |
