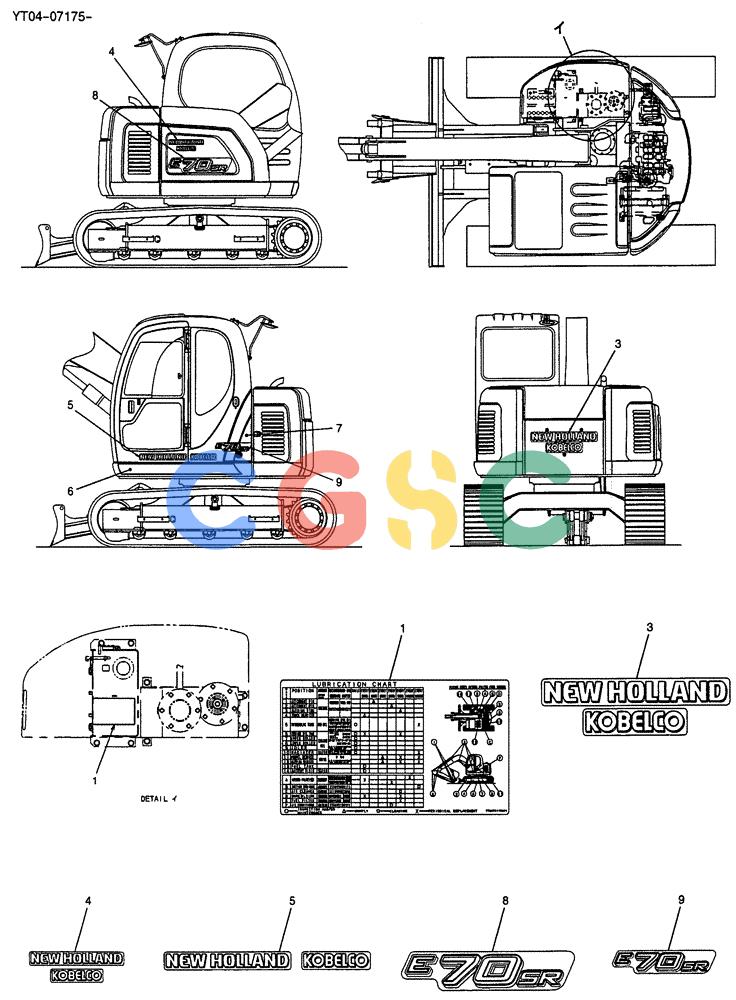

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (06-005) - NAME PLATE INSTAL (MACHINE NAME) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22T00108F1 | [1] | NAME PLATE INSTAL (SELECT) | |
| 1. | YT20T01154P1 | [1] | LABEL | KOBLABEL, LUBRICATION CHART |
| 8. | YT22T00111P1 | [1] | DECAL | KOBNAME PLATE, E70 SR |
| 9. | YT22T00112P1 | [1] | DECAL | KOBNAME PLATE, E70 SR |
| . . | YT22T00108F3 | [1] | NAME PLATE INSTAL (REQUIRED) | |
| 3. | YT22T00113P1 | [1] | DECAL | KOBNAME PLATE, NEW HOLLAND KOBELCO |
| 4. | YY22T00107P1 | [1] | DECAL KIT | KOBNAME PLATE, NEW HOLLAND KOBELCO |
| 5. | YY22T00108P1 | [1] | DECAL KIT | KOBNAME PLATE, NEW HOLLAND KOBELCO |
| 6. | YY20T01163P1 | [1] | LABEL | KOB |
| 7. | YY20T01162P1 | [1] | LABEL | KOB |
