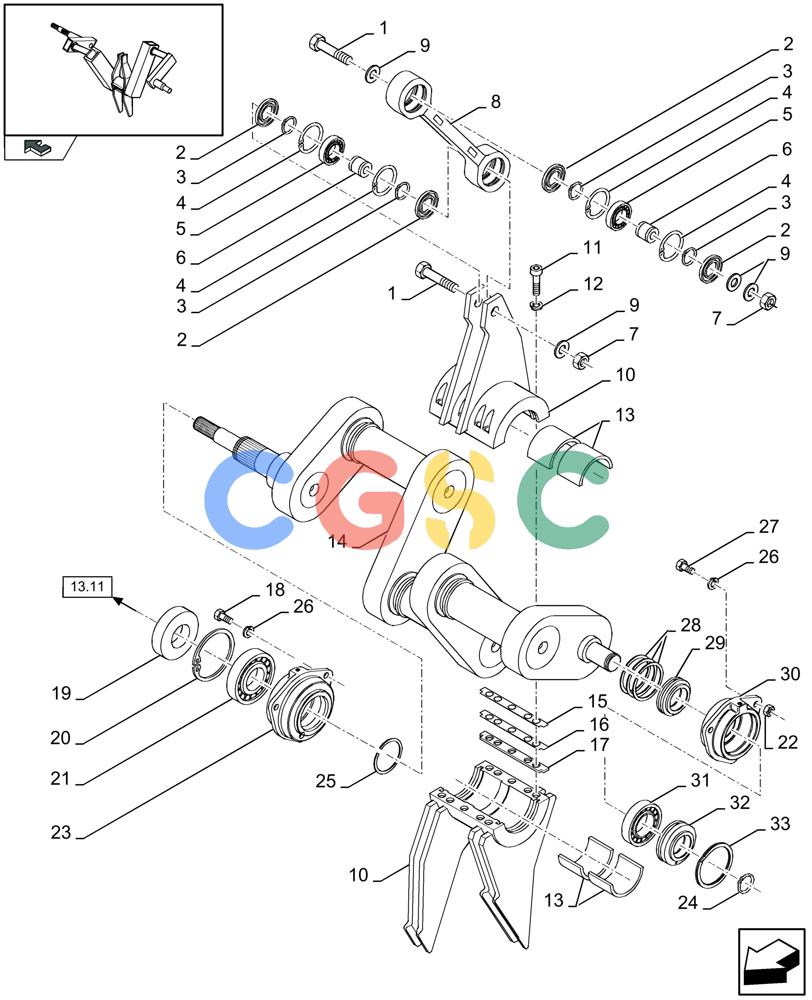

| 1. |
80374889
|
[6] |
SCREW,M16 x 100mm
|
ZED
M16 x 100 Superseded by part number: 374889
|
| 2. |
80417722
|
[12] |
SEAL
|
ZED
Superseded by part number: 417722
|
| 3. |
80370003
|
[12] |
CIRCLIP
|
ZED
Superseded by part number: 370003
|
| 4. |
80370012
|
[12] |
SNAP RING
|
ZED
Superseded by part number: 370012
|
| 5. |
84039251
|
[6] |
SPHERICAL BEARING,30mm ID x 62mm OD x 20mm W
|
ZED
|
| 6. |
84039273
|
[6] |
BUSHING
|
ZED
|
| 7. |
86000441
|
[6] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 8. |
84074860
|
[3] |
LINK CONROD
|
ZED
|
| 9. |
80394631
|
[12] |
WASHER
|
ZED
17 MM Superseded by part number: 394631
|
| 10. |
84056413
|
[3] |
FINGER
|
ZED
, Serial Range: -C499 Superseded by part number: 87325595
|
| 11. |
84039422
|
[30] |
HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 8.8
|
ZED
|
| 10. |
87325595
|
[3] |
FINGER
|
ZED
, Start Serial: D500
|
| 12. |
412123
|
[30] |
LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk
|
NH
, Serial Range: -C567
|
| 12. |
84039421
|
[30] |
SPRING WASHER,12.2mm ID x 18mm OD x 2.5mm Thk
|
ZED
, Start Serial: D568
|
| 13. |
84038631
|
[6] |
SET OF CONN ROD BRGS U/S
|
ZED
, Serial Range: -C499
|
| 13. |
87325607
|
[6] |
SLEEVE
|
ZED
, Start Serial: D500
|
| 14. |
84320487
|
[1] |
CRANKSHAFT
|
ZED
Superseded by part number: 47740498
|
| 15. |
84039432
|
[1] |
SHIM
|
ZED
THK.: 0.1 MM
|
| 15. |
84039433
|
[1] |
SHIM
|
ZED
THK.: 0.2 MM
|
| 16. |
87324678
|
[1] |
SHIM
|
ZED
THK.: 0.8 MM
|
| 17. |
84039431
|
[1] |
SHIM
|
ZED
THK.: 3.5 MM, Serial Range: -C499
|
| 17. |
87324637
|
[1] |
SHIM
|
ZED
THK.: 6 MM, Start Serial: D500
|
| 18. |
80300388
|
[3] |
SCREW,M12 x 25mm
|
ZED
Cap, HH, CL 8.8, M12 x 1.75 x 25 Superseded by part number: 300388
|
| 19. |
84074233
|
[1] |
SEAL,100mm ID x 135mm OD x 13mm Thk
|
ZED
SEALRING
|
| 20. |
80370014
|
[1] |
SNAP RING
|
ZED
Superseded by part number: 370014
|
| 21. |
84074235
|
[1] |
SPHERICAL BEARING,75mm ID x 130mm OD x 31mm W
|
ZED
|
| 22. |
89706685
|
[3] |
NUT
|
ZED
M12 Superseded by part number: 9706685
|
| 23. |
84074364
|
[1] |
BEARING HOUSING,95 mm ID x 152 mm OD x 76 mm
|
ZED
|
| 24. |
80370006
|
[1] |
SNAP RING
|
ZED
Superseded by part number: 370006
|
| 25. |
84004409
|
[1] |
SEAL,85mm ID x 100mm OD x 9mm Thk
|
ZED
|
| 26. |
80140046
|
[9] |
WASHER
|
ZED
12.4 MM Superseded by part number: 140046
|
| 27. |
80300389
|
[3] |
BOLT,M12 x 35mm
|
ZED
M12 x 35 Superseded by part number: 628-12035
|
| 28. |
84037891
|
[3] |
SNAP RING
|
ZED
|
| 29. |
84037892
|
[1] |
FLANGE
|
ZED
|
| 30. |
84074862
|
[1] |
BEARING HOUSING,70 mm ID x 98 mm OD x 61 mm
|
ZED
|
| 31. |
80323327
|
[1] |
BEARING ASSY
|
ZED
Superseded by part number: 323327
|
| 32. |
84037895
|
[1] |
FLANGE
|
ZED
|
| 33. |
89850345
|
[1] |
SET OF RINGS
|
ZED
Superseded by part number: 9850345
|
