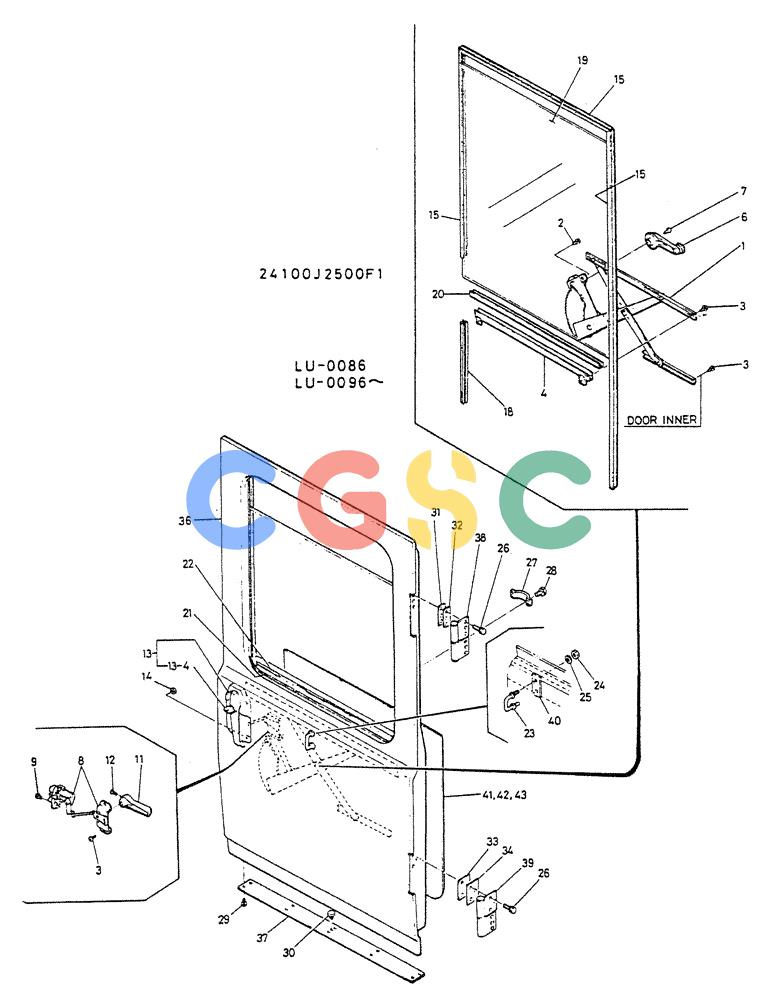

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-015) - DOOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2500F1 | [1] | DOOR ASSY | DOOR ASSY |
| 1. | 2427U152 | [1] | REGULATOR | KOB |
| 2. | ZS31C06020 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 20mm | KOBM06x1.0x20mm |
| 3. | ZS31C06012 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 4. | 2427P1427 | [1] | CHANNEL | KOB |
| 6. | 2427Z333 | [1] | HANDLE | KOB |
| 7. | ZS31C05018 | [1] | SCREW,Phillips Drive, Pan HD, M5 x 18mm | KOBM05x0.8x18mm |
| 8. | 2427U153 | [1] | LOCK | KOB |
| 9. | ZS41C05010 | [3] | SCREW,M5 x 10mm | KOBM05x0.8x10mm |
| 11. | 2427Z334 | [1] | HANDLE | HANDLE |
| 12. | ZS31C04010 | [1] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 13. | 2427R225D3 | [1] | HANDLE | KOB |
| 13-4. | 2420Z800 | [1] | KEY | KOB |
| 14. | ZN16C05004 | [2] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 15. | 2427Z335D1 | [1] | RUBBER SLEEVE | KOB |
| 18. | 2427Z335D4 | [1] | RUBBER | RUBBER |
| 19. | 2427T516 | [1] | GLASS | KOB |
| 20. | 2427Z336 | [1] | SHEET | KOB |
| 21. | 2427Z337 | [1] | SEAL | SEAL |
| 22. | 2427Z338 | [1] | SEAL | SEAL |
| 23. | 2427T526 | [1] | SEAT | KOBHOCK |
| 24. | ZN16C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 25. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 26. | ZS17C08025 | [6] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025 |
| 27. | 2427R230 | [1] | HANDLE | KOB |
| 28. | ZS31C05035 | [4] | SCREW,Phillips Drive, Pan HD, M5 x 35mm | KOBM05x0.8x35mm |
| 29. | ZS31C04010 | [10] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 20. | 2416Z225 | [1] | RUBBER | RUBBER |
| 31. | 2427P1428 | [1] | SPACER | KOB |
| 32. | 2427P1429 | [2] | SPACER | KOB |
| 33. | 2427P1430 | [1] | SPACER | KOB |
| 34. | 2427P1431 | [2] | SPACER | KOB |
| 36. | 24270855 | [1] | DOOR ASSY | |
| 37. | 2427P1432 | [1] | PLATE | KOB |
| 38. | 2427T529 | [1] | HINGE | KOB |
| 35. | 2427T530 | [1] | HINGE | KOB |
| 40. | 2427T550 | [1] | PLATE | KOB |
| 41. | 2427R231 | [1] | SEAL | KOB |
| 42. | 2427R363 | [1] | SEAL | KOB |
| 43. | 2427R364 | [1] | SEAL | KOB |
