神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-016) - SASH ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
736 次

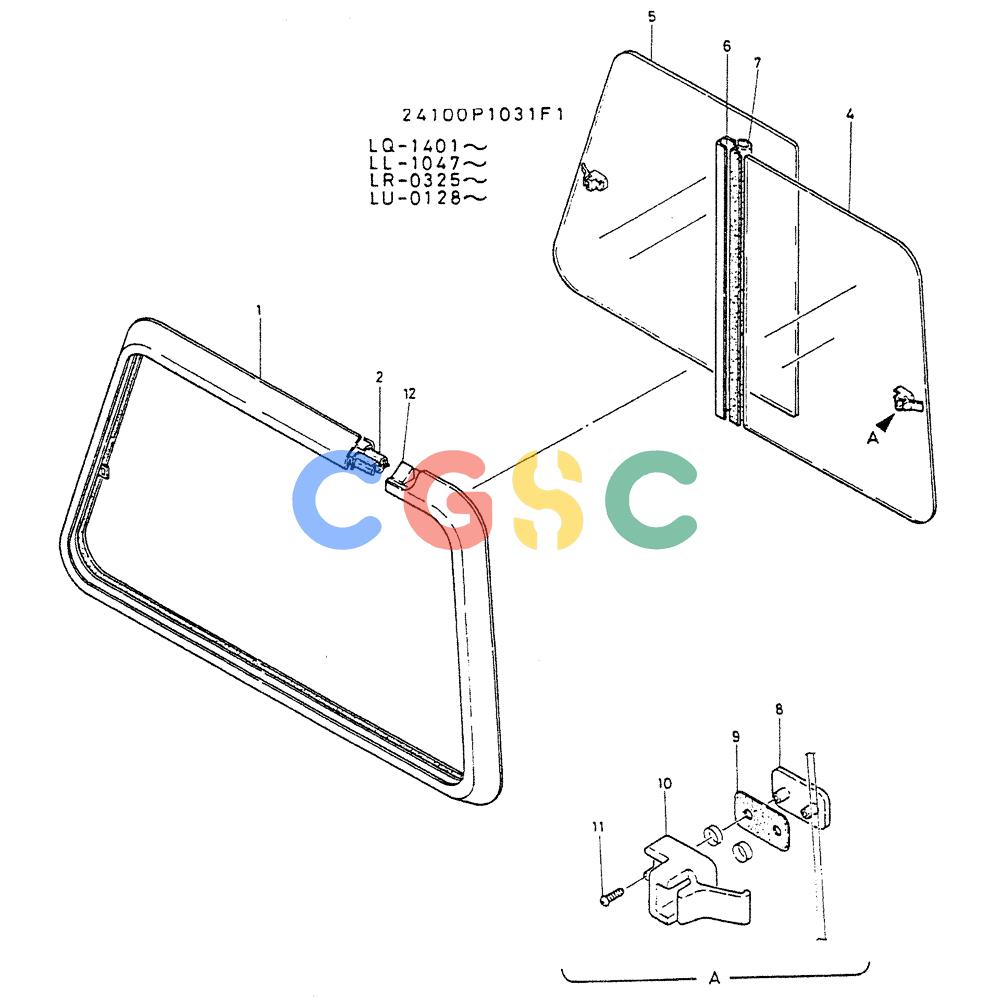

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1031F1 | [1] | WINDOW | KOBASSY |
| 1. | 24100P1031S1 | [1] | SASH | SASH |
| 2. | 24100P1031S2 | [1] | GUIDE | KOB |
| 4. | 2427R421 | [1] | GLASS | KOB |
| 5. | 2427R422 | [1] | GLASS | KOB |
| 6. | 24100P1031S4 | [1] | CHANNEL | KOB |
| 7. | 24100P1031S5 | [1] | SEAL | KOB |
| 8. | 24100P1031S6 | [2] | RETAINER | KOB |
| 9. | 24100P1031S7 | [2] | PACKING | PACKING |
| 10. | 24100P1031S8 | [2] | LOCK | KOB |
| 11. | 24100P1031S9 | [4] | SCREW | KOBMACHINE |
| 12. | 2418T123202 | [8] | SPACER | |
