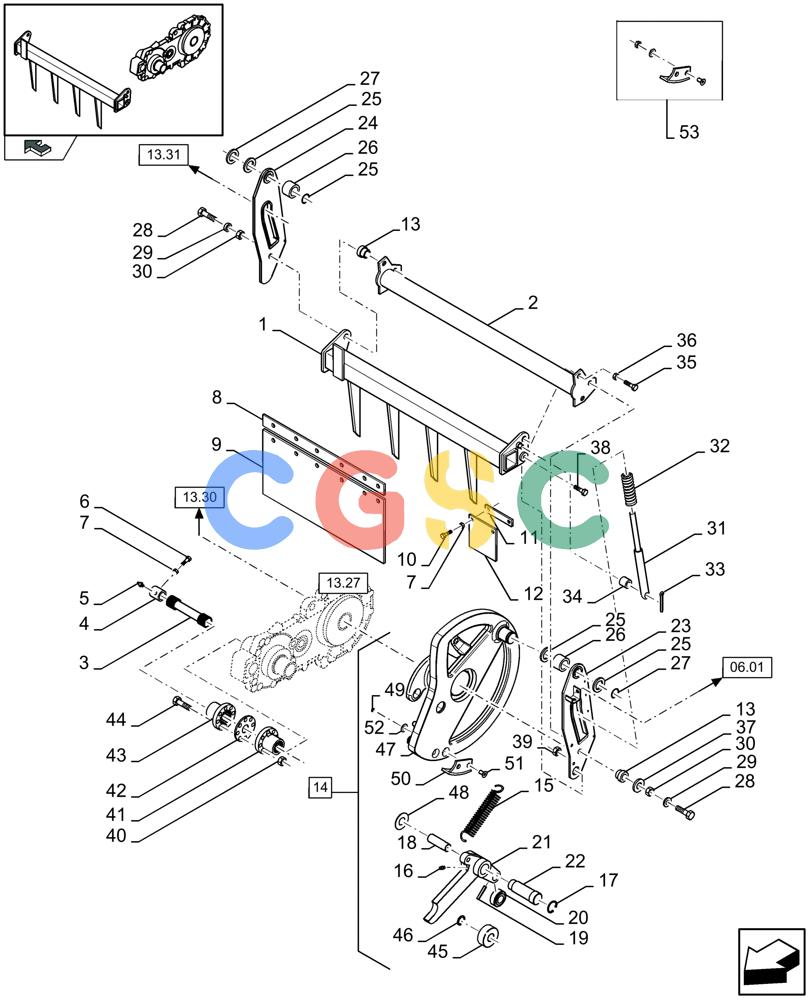

| 1. |
84068877
|
[1] |
FORK
|
ZED
, Serial Range: -C699 Superseded by part number: 87477567
|
| 1. |
87477567
|
[1] |
FORK
|
ZED
, Start Serial: D700
|
| 1. |
84068879
|
[1] |
FORK
|
ZED
, Serial Range: -C699 Superseded by part number: 87477560
|
| 1. |
87477560
|
[1] |
FORK
|
ZED
, Start Serial: D700
|
| 1. |
84068880
|
[1] |
FORK
|
ZED
, Serial Range: -C699 Superseded by part number: 87680323
|
| 1. |
87680323
|
[1] |
FORK
|
ZED
, Start Serial: D700
|
| 1. |
84068881
|
[1] |
FORK
|
ZED
, Serial Range: -C699 Superseded by part number: 87680325
|
| 1. |
87680325
|
[1] |
FORK
|
ZED
, Start Serial: D700
|
| 1. |
84068878
|
[1] |
FORK
|
ZED
, Serial Range: -C699 Superseded by part number: 87680327
|
| 1. |
87680327
|
[1] |
FORK
|
ZED
, Start Serial: D700
|
| 2. |
84068874
|
[1] |
TUBE
|
ZED
, Serial Range: -C699
|
| 2. |
84068873
|
[1] |
ANGLE BAR
|
ZED
|
| 3. |
84074031
|
[1] |
SHAFT
|
ZED
Superseded by part number: 84068096
|
| 3. |
84074032
|
[1] |
SHAFT
|
ZED
Superseded by part number: 84068097
|
| 4. |
84053926
|
[1] |
HYD CONNECTOR
|
ZED
|
| 5. |
321204
|
[2] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 6. |
86508570
|
[1] |
BOLT,Hex, M6 x 80mm OAL, Cl 8.8
|
NH
|
| 7. |
80353308
|
[1] |
NUT
|
ZED
M6 Superseded by part number: 353308
|
| 8. |
84074083
|
[1] |
FIXING PLATE
|
ZED
|
| 8. |
84074084
|
[1] |
FIXING PLATE
|
ZED
|
| 9. |
84068363
|
[1] |
CANVAS
|
ZED
|
| 9. |
84068364
|
[1] |
CANVAS
|
ZED
|
| 10. |
80120100
|
[1] |
BOLT,M6 x 1 x 20mm
|
ZED
Superseded by part number: 120100
|
| 11. |
84043413
|
[2] |
COVER PLATE
|
ZED
|
| 12. |
84100982
|
[2] |
CANVAS
|
ZED
|
| 13. |
84320647
|
[2] |
BUSHING,17mm ID x 30mm OD x 27.5mm L
|
ZED
|
| 14. |
84814712
|
[1] |
CLUTCH
|
ZED
(15 to 22, 45 to 47), Serial Range: -C439 Superseded by part number: 87327624, 84058620, 84400783, 84056050, 87531836, 84806601, 321204, 87327626, 140045, 84806271, 370024, 301644, 300868, 120259, 673, 100016
|
| 14. |
87327627
|
[1] |
CLUTCH
|
ZED
(15 to 22, 45 to 53), Start Serial: D440 Superseded by part number: 87531836, 87327624, 370024, 300868, 140045, 321204, 84806601, 84400783, 84806271, 84056050, 84058620, 673, 301644, 120259, 100016, 87327626
|
| 14. |
87554945
|
[1] |
CLUTCH
|
ZED
(15 to 22, 45 to 53), Start Serial: D556
|
| 15. |
84806601
|
[1] |
SPRING,Extension, 28.399mm OD x 108mm L
|
ZED
|
| 17. |
80301644
|
[1] |
CIRCLIP
|
PLO
Superseded by part number: 301644, 301644, NLS
|
| 18. |
84058620
|
[1] |
PIN,20mm OD x 62mm L
|
ZED
|
| 19. |
80300868
|
[1] |
ROLL PIN
|
ZED
Superseded by part number: 300868
|
| 20. |
84400783
|
[1] |
ROLLER
|
ZED
|
| 21. |
84800482
|
[1] |
LEVER
|
ZED
, Serial Range: -C439 Superseded by part number: 87327626
|
| 21. |
87327626
|
[1] |
LEVER
|
ZED
, Start Serial: D440
|
| 22. |
84806271
|
[1] |
SHAFT,27.89mm OD x 91mm L
|
ZED
|
| 23. |
84447594
|
[1] |
ARM
|
ZED
LH
|
| 23. |
87390995
|
[1] |
PLATE
|
ZED
LH, Start Serial: D556
|
| 24. |
84447597
|
[1] |
ARM
|
ZED
RH
|
| 24. |
87390996
|
[1] |
PLATE
|
ZED
RH, Start Serial: D556
|
| 25. |
89838356
|
[4] |
WASHER
|
ZED
Superseded by part number: 9838356
|
| 26. |
80397927
|
[2] |
BEARING ASSY
|
ZED
Superseded by part number: 397927
|
| 27. |
80370003
|
[2] |
CIRCLIP
|
ZED
Superseded by part number: 370003
|
| 28. |
80355259
|
[2] |
SCREW
|
ZED
M16 x 65 Superseded by part number: 355259
|
| 29. |
80325594
|
[2] |
WASHER
|
ZED
Superseded by part number: 325594
|
| 30. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 31. |
84068872
|
[1] |
ROD
|
ZED
(L= 428 MM)
|
| 31. |
87391000
|
[1] |
RETAINER
|
ZED
(L= 457 MM)
|
| 32. |
84068861
|
[1] |
SPRING
|
ZED
|
| 33. |
80130011
|
[1] |
COTTER PIN
|
ZED
Superseded by part number: 130011
|
| 34. |
80378247
|
[1] |
WASHER
|
ZED
Superseded by part number: 378247
|
| 35. |
80300502
|
[4] |
SCREW
|
ZED
M12 x 40 Superseded by part number: 300502
|
| 36. |
80100038
|
[4] |
NUT
|
ZED
M12 Superseded by part number: 100038
|
| 37. |
80743469
|
[1] |
WASHER
|
ZED
Superseded by part number: 743469
|
| 38. |
80536632
|
[1] |
BOLT
|
ZED
M10 x 60 Shear Superseded by part number: 536632
|
| 39. |
80100037
|
[1] |
NUT,M10 x 1.5, Class 8
|
ZED
Superseded by part number: 100037
|
| 40. |
80140048
|
[8] |
WASHER
|
ZED
Superseded by part number: 140048
|
| 41. |
84806913
|
[1] |
HUB
|
ZED
|
| 42. |
84806307
|
[1] |
DISC
|
ZED
|
| 43. |
84806287
|
[1] |
HUB
|
ZED
|
| 44. |
80043168
|
[8] |
BOLT
|
ZED
M16 x 40 Superseded by part number: 43168
|
| 45. |
84056050
|
[1] |
BALL BEARING,20mm ID x 52mm OD x 20.6mm W
|
ZED
|
| 46. |
80370024
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 370024
|
| 47. |
84818287
|
[1] |
FEEDER
|
ZED
, Serial Range: -C439 Superseded by part number: 87327624
|
| 47. |
87327624
|
[1] |
FEEDER
|
ZED
, Start Serial: D440
|
| 47. |
87554943
|
[1] |
CRANKSHAFT
|
ZED
, Start Serial: D556
|
| 48. |
673
|
[1] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
, Start Serial: D576
|
| 49. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
, Start Serial: D576
|
| 50. |
87531836
|
[1] |
EXTENSION
|
ZED
, Start Serial: D576
|
| 51. |
120259
|
[2] |
HEX SOC SCREW,CSS, M10 x 40mm, Cl 10.9
|
ZED
, Start Serial: D576
|
| 52. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
, Start Serial: D576
|
| 53. |
87611973
|
[1] |
SERVICE KIT
|
ZED
EXTENDED RESET KIT
|
