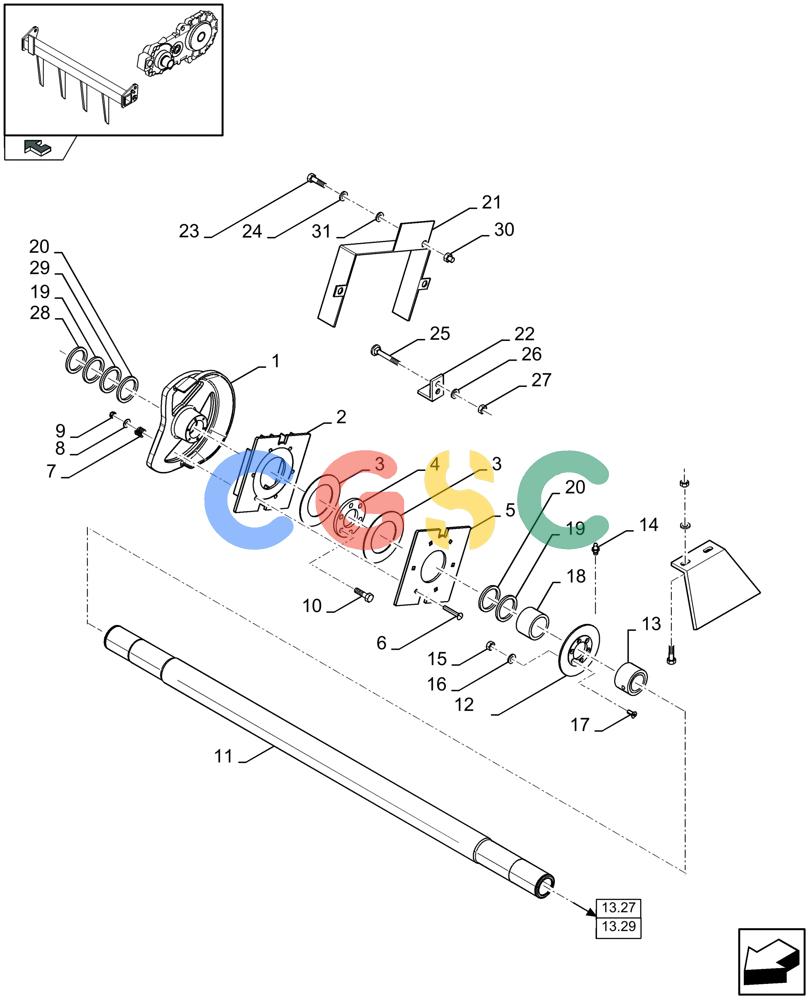

凯斯零件查询(LBX332P) - BIG RECTANGULAR BALER ''PACKER CUTTER'' (3/03-12/08) (13.30[01]) - SHUTTLE FEEDER TRANSMISSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84818290
|
[1] |
CRANKSHAFT
|
ZED
|
| 1. |
87554947
|
[1] |
CRANKSHAFT
|
ZED
, Start Serial: D556
|
| 2. |
84819162
|
[1] |
FLANGE
|
ZED
|
| 3. |
89838773
|
[2] |
DISC
|
ZED
Superseded by part number: 84476390
|
| 4. |
84007445
|
[1] |
PLATE
|
ZED
|
| 5. |
89838755
|
[1] |
FLANGE
|
ZED
Superseded by part number: 84800479
|
| 6. |
80300662
|
[3] |
BOLT
|
ZED
Superseded by part number: 300662
|
| 7. |
84014109
|
[6] |
SPRING
|
ZED
|
| 8. |
80543043
|
[6] |
WASHER
|
ZED
Superseded by part number: 543043
|
| 9. |
80100038
|
[3] |
NUT
|
ZED
Superseded by part number: 100038
|
| 10. |
80412495
|
[6] |
SCREW
|
ZED
Superseded by part number: 87313767
|
| 11. |
84074036
|
[1] |
SHAFT
|
ZED
|
| 11. |
84074035
|
[1] |
SHAFT
|
ZED
|
| 12. |
89839132
|
[1] |
BEARING HOUSING
|
ZED
Superseded by part number: 9839132
|
| 13. |
89839131
|
[1] |
BEARING ASSY
|
ZED
Superseded by part number: 9839131
|
| 14. |
321204
|
[1] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 15. |
89706685
|
[4] |
NUT
|
ZED
Superseded by part number: 9706685
|
| 16. |
80140046
|
[4] |
WASHER
|
ZED
12 MM Superseded by part number: 140046
|
| 17. |
89706687
|
[1] |
SCREW
|
ZED
M12 x 30 Superseded by part number: 9706687
|
| 18. |
84000030
|
[1] |
BUSHING,70mm ID x 82.5mm OD x 48mm L
|
ZED
|
| 19. |
89839164
|
[1] |
WASHER
|
ZED
Superseded by part number: 9839164
|
| 20. |
89839161
|
[1] |
WASHER
|
ZED
Superseded by part number: 9839161
|
| 21. |
84021669
|
[1] |
SHIELD
|
ZED
|
| 22. |
89839159
|
[2] |
SUPPORT
|
ZED
Superseded by part number: 9839159
|
| 23. |
120104
|
[3] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 24. |
80322358
|
[1] |
LOCK WASHER
|
ZED
Superseded by part number: 322358
|
| 25. |
86512446
|
[1] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 26. |
80140045
|
[4] |
WASHER
|
ZED
Belleville, M10 Superseded by part number: 140045
|
| 27. |
100016
|
[1] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 28. |
80300636
|
[1] |
CIRCLIP
|
ZED
Superseded by part number: 300636
|
| 29. |
84000021
|
[1] |
SHIM,70mm ID x 86mm OD x 0.5mm Thk
|
ZED
|
| 30. |
84021989
|
[3] |
NUT
|
ZED
M8
|
| 31. |
80378243
|
[3] |
WASHER
|
ZED
8 MM Superseded by part number: 378243
|
