神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-020) - MIRROR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
926 次

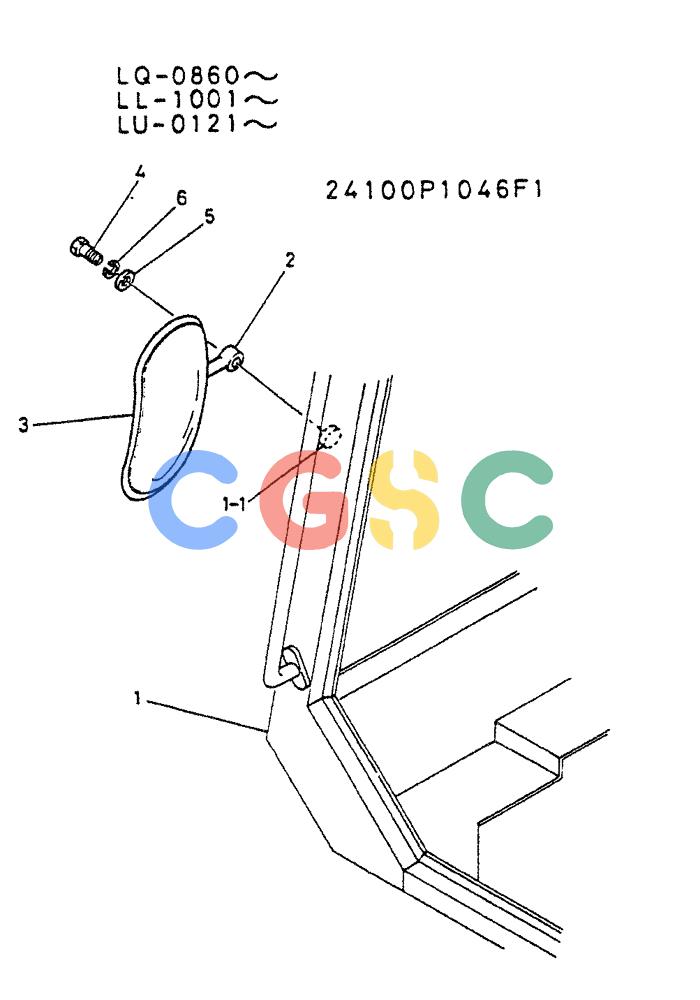

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1046F1 | [1] | MIRROR | KOBMIRROR ASSY (FOR NORWAY) |
| 1. | 2427T842 | [1] | CAB | |
| 1-1. | 2416T10937D3 | [1] | BLOCK | BLOCK |
| 2. | 2416P7231 | [1] | STAY | KOBSTAY |
| 3. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 4. | ZS11C16022 | [1] | SCREW,Hex, M16 x 22mm, Cl 4.8 | KOBM16x2.0x22mm |
| 5. | ZW11X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 6. | ZW22X16000 | [1] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
