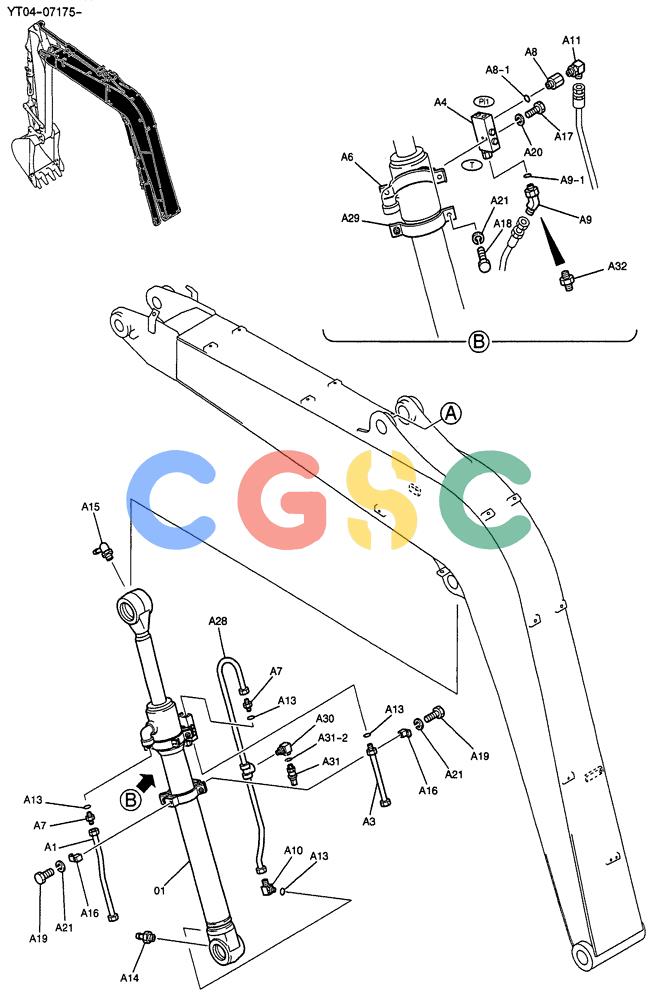

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (05-019[01]) - HYD LINES, BOOM 3.72M, WITH SENSOR, PRESS (BOOM & ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | YT01V00017F1 | [1] | HYDRAULIC CYLINDER | KOBASSY, BOOM, Serial Range: YT04-07175-YT04-07488 Superseded by part number: YT01V00017F2 |
| 01. | YT01V00017F2 | [1] | CYLINDER | KOBCYLINDER ASSY, BOOM, Start Serial: YT04-07489 |
| 2. | YT01V00002F1 | [1] | CYLINDER ASSY. | KOBASSY, ARM |
| . . | YT42H00075F2 | [1] | HYD LINES, CYLINDER | |
| A1. | YT42H01241P1 | [1] | TUBE | KOB |
| A3. | YT42H01145P1 | [1] | TUBE | KOB |
| A4. | YR28V00001F1 | [1] | VALVE | KOBASSY, HOLDING |
| A6. | YT42H01147P1 | [1] | BAND | KOB |
| A7. | ZA23F22008 | [2] | HYD CONNECTOR | KOB |
| A8. | YX42H01085P1 | [1] | CONNECTION | KOB |
| A8-1. | ZD12P01100 | [1] | O-RING | KOB |
| A9. | 2444T3288 | [1] | ELBOW | KOB, Serial Range: YT04-07175-YT04-07310 |
| A10. | ZA33F22008 | [1] | ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB |
| A11. | 2444Z2338 | [1] | ELBOW | KOB |
| A13. | ZD12P01800 | [4] | O-RING | KOB |
| A14. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| A15. | ZG91V02000 | [1] | LUBE NIPPLE | KOB |
| A16. | YR43H01003P1 | [2] | CLAMP | KOB |
| A17. | ZS18C08050 | [2] | SCREW,Hex, M8 x 50mm | KOBCAP |
| A18. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| A19. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBCAP |
| A20. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| A21. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A28. | YT42H01246P1 | [1] | RIGID TUBE | KOB |
| A29. | YT42H01036P1 | [1] | BAND | KOB |
| A30. | YT42H01128P1 | [1] | ELBOW | KOB |
| A31. | LC52S00012P1 | [1] | SENSOR | KOBPRESS (H.P.) Superseded by part number: YY52S00033F1 |
| A31-2. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| A32. | 2444Z2337 | [1] | HYD CONNECTOR | KOB, Start Serial: YT04-07311 |
| . . | YT42H00058F1 | [1] | HYD LINES, CYLINDER | |
| B1. | YT42H01252P1 | [1] | TUBE | KOB |
| B2. | YT42H01157P1 | [1] | TUBE | KOB |
| B3. | YT42H01237P1 | [1] | TUBE | KOB |
| B4. | YT42H01030D1 | [2] | HOSE | KOB |
| B6. | YT42H01244P1 | [1] | BAND | KOB |
| B7. | YT42H01243P1 | [1] | BAND | KOB |
| B9. | ZA23B22000 | [1] | HYD CONNECTOR | KOB |
| B10. | 2444Z4224 | [1] | CONNECTION | KOB |
| B11. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| B15. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
