纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (02-002) - SLEWING RING ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
398 次

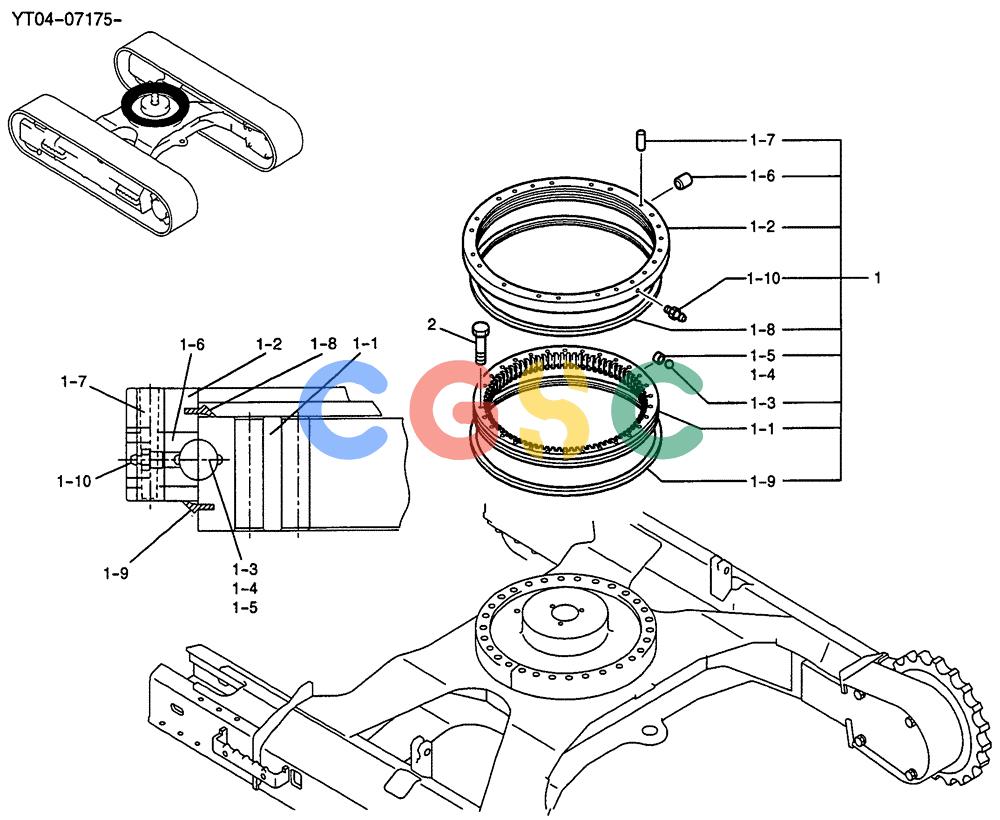

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LE40F00001F1 | [1] | SLEWING RING | KOBRING ASSY, SLEWING |
| 1. | 2425U261F1 | [1] | RING | KOBASSY, SLEWING |
| 1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONRACE, INNER |
| 1-3. | 2425U235S3 | [84] | BOWL | KOBBALL |
| 1-4. | 2425U261S4 | [69] | RETAINER | KOB |
| 1-5. | 2425U235S4 | [15] | RETAINER | KOBREGULATION |
| 1-7. | 2419T1964D10 | [1] | PIN | KOBTAPER |
| 1-8. | 2425U235S9 | [1] | SEAL | KOB |
| 1-9. | 2425U235S7 | [1] | SEAL | KOB |
| 1-10. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| 2. | ZS13C16090 | [30] | CAPSCREW | KOBSCREW CAP |
