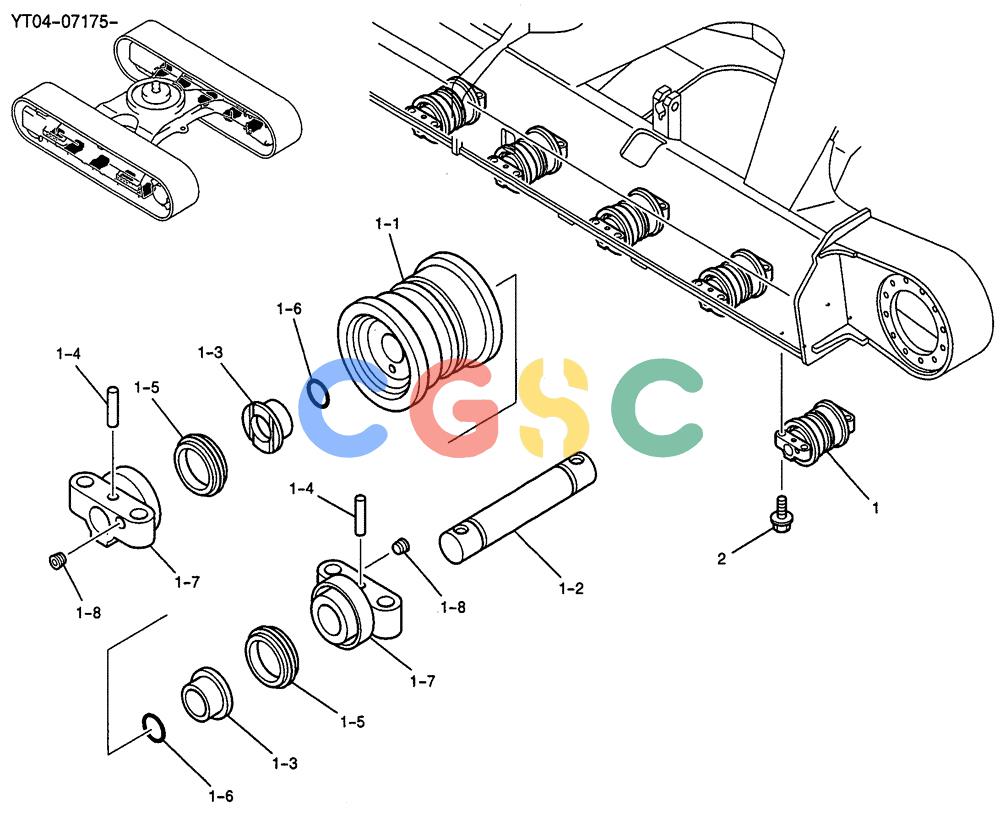

纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (02-006) - TRACK ROLLER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
518 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT64D00005F1 | [1] | ROLLER ASSY, TRACK | |
| 1. | YT64D00004F1 | [10] | TRACK ROLLER | KOBASSY, LOW |
| 1-1. | 2413N456 | [1] | ROLLER | KOB |
| 1-2. | YT64D01006P1 | [1] | SHAFT | KOB |
| 1-3. | 2405P478 | [2] | BUSHING | KOB |
| 1-4. | YT64D01005P1 | [2] | PIN | KOB |
| 1-5. | 2445R439F1 | [2] | SEAL,64mm ID x 85.2mm OD x 28mm Thk | KOBASSY, FLOATING |
| 1-6. | ZD11G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 1-7. | YT64D01003P1 | [2] | RING | KOBCOLLAR |
| 1-8. | ZE82T04000 | [2] | PLUG | KOB |
| 2. | LE64D01004P1 | [40] | SCREW | KOBCAP |
