纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (02-007) - ROLLER ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
726 次

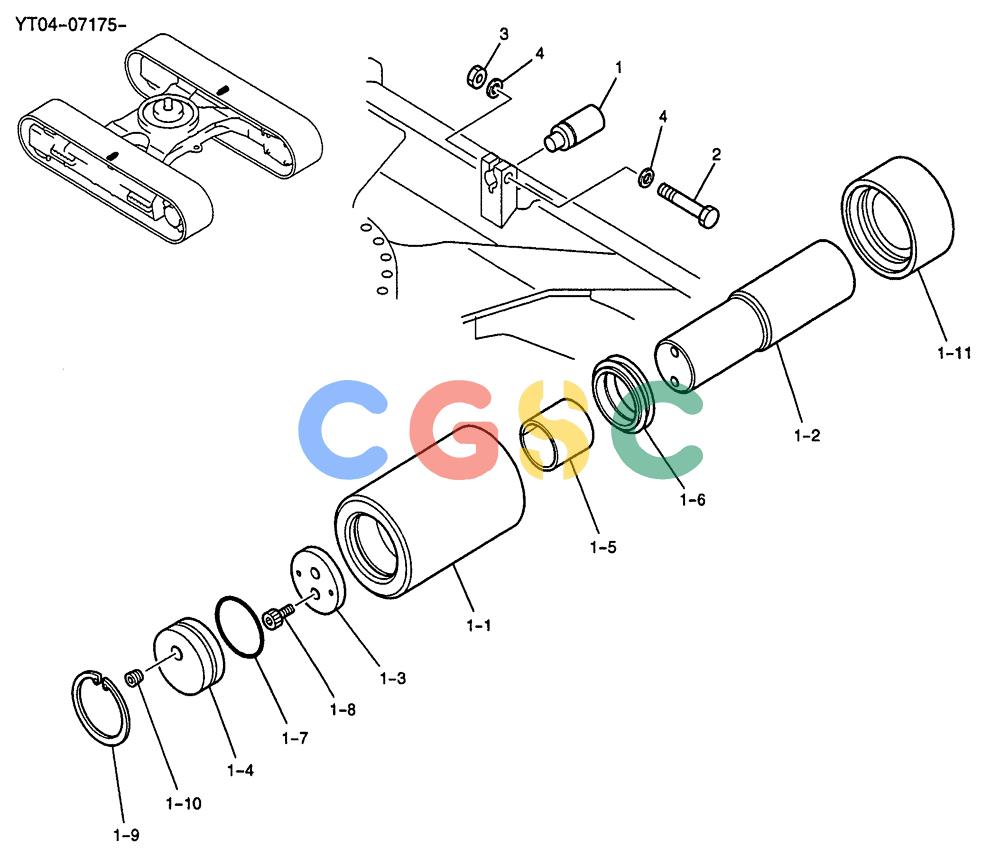

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT64D00002F1 | [1] | ROLLER | KOBASSY, UPP |
| 1. | YT64D01001F1 | [2] | ROLLER | KOBASSY Superseded by part number: YT64D01001F1G2 |
| 1-1. | LE64D01007P1 | [1] | ROLLER | KOB |
| 1-2. | YT64D01002P1 | [1] | SHAFT | KOB |
| 1-3. | LE64D01009P1 | [1] | PLATE | KOB |
| 1-4. | 2414T4661 | [1] | COVER | KOB |
| 1-5. | 2405T1666 | [1] | BUSHING | KOB |
| 1-6. | 2445R359F1 | [1] | SEAL,38mm ID x 51mm OD x 20.9mm Thk | KOBFLOATING |
| 1-7. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB |
| 1-8. | LE64D01010P1 | [2] | BOLT | KOB |
| 1-9. | ZR26X05000 | [1] | RING | KOBSNAP |
| 1-10. | ZE82T02000 | [1] | PLUG | KOB |
| 1-11. | 2418P22541 | [1] | COLLAR | KOB |
| 2. | ZS13C16090 | [2] | CAPSCREW | KOBSCREW CAP |
| 3. | ZN13C16013 | [2] | NUT | KOB |
| 4. | ZW13H16000 | [4] | WASHER | KOB |
