纽荷兰零件查询(E70SR) - MIDI CRAWLER EXCAVATOR ASN YT04-07175 (02-008) - SHOE ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
782 次

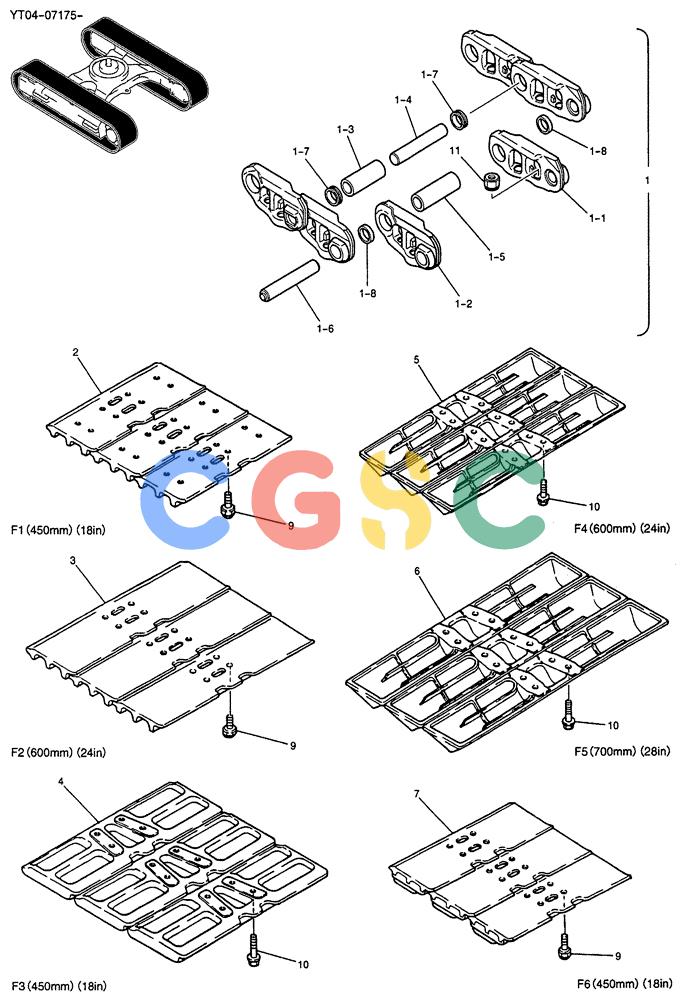

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT60D00012F1 | [2] | SHOE | KOBASSY |
| 1. | YT62D00007F1 | [1] | TRACK ASSY | KOBASSY |
| 1-1. | 2424J175D1 | [39] | TRACK LINK | KOB(R.H.) |
| 1-2. | 2424J175D2 | [39] | TRACK LINK | KOB(L.H.) |
| 1-3. | YT62D01010P1 | [38] | BUSHING | KOB |
| 1-4. | YT62D01002P1 | [38] | PIN | KOB |
| 1-5. | YT62D01003P1 | [1] | BUSHING | KOB |
| 1-6. | YT62D01004P1 | [1] | PIN | KOBMASTER |
| 1-7. | YT62D01011P1 | [76] | SEAL | KOB |
| 1-8. | 2418T20891 | [2] | COLLAR | KOB |
| 2. | YT60D00008P1 | [39] | SHOE,450mm W | KOB |
| 9. | YT60D01001P1 | [156] | BOLT | KOB |
| 11. | YT60D01002P1 | [156] | NUT | KOB |
| . . | YT60D00012F2 | [2] | SHOE | KOBASSY CONSISTS OF REF. 1, 3, 9 & 11 |
| 3. | YT60D00009P1 | [39] | SHOE,600mm W | KOB |
| . . | YT60D00012F3 | [2] | SHOE ASSY CONSISTS OF REF. 1, 4, 10 & 11 | |
| 4. | LE60D00001P1 | [39] | SHOE,450mm W | KOBSHOE, FLAT |
| 10. | 2420T7482 | [156] | BOLT | KOB |
| . . | YT60D00012F4 | [2] | SHOE | KOBSHOE ASSY CONSISTS OF REF. 1, 5, 10 & 11 |
| 5. | 2424J178D1 | [39] | SHOE,600mm W | KOBTRIANGLE |
| . . | YT60D00012F5 | [2] | SHOE ASSY CONSISTS OF REF. 1, 6, 10 & 11 | |
| 6. | 2424J178D2 | [39] | SHOE,700mm W | KOBTRIANGLE |
| . . | YT60D00012F6 | [2] | SHOE ASSY CONSISTS OF REF. 1, 7, 9 & 11 | |
| 7. | YX62D00003P1 | [39] | SHOE,450mm W | KOBRUBBER-PAD |
