神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-048) - COVER ASSY (FOR ALASKA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
472 次

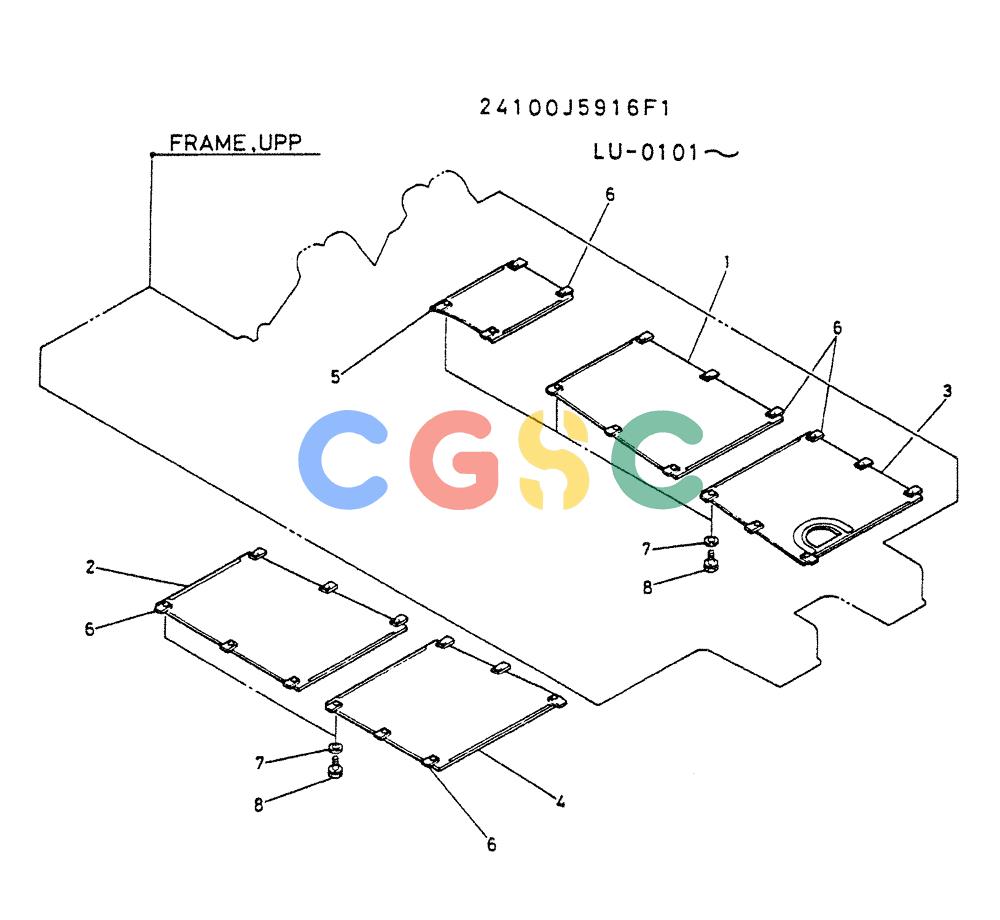

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5916F1 | [1] | COVER ASSY (FOR ALASKA) | |
| 1. | 2414P3749 | [1] | COVER | COVER |
| 2. | 2414P3751 | [1] | COVER | |
| 3. | 2414P3747 | [1] | COVER | |
| 4. | 2414P3750 | [1] | COVER | |
| 5. | 2414P3748 | [1] | COVER | |
| 6. | 2416T3785 | [28] | BLOCK, TAPPED | |
| 7. | 2418T5373C2 | [28] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 8. | ZM11C10020 | [26] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
