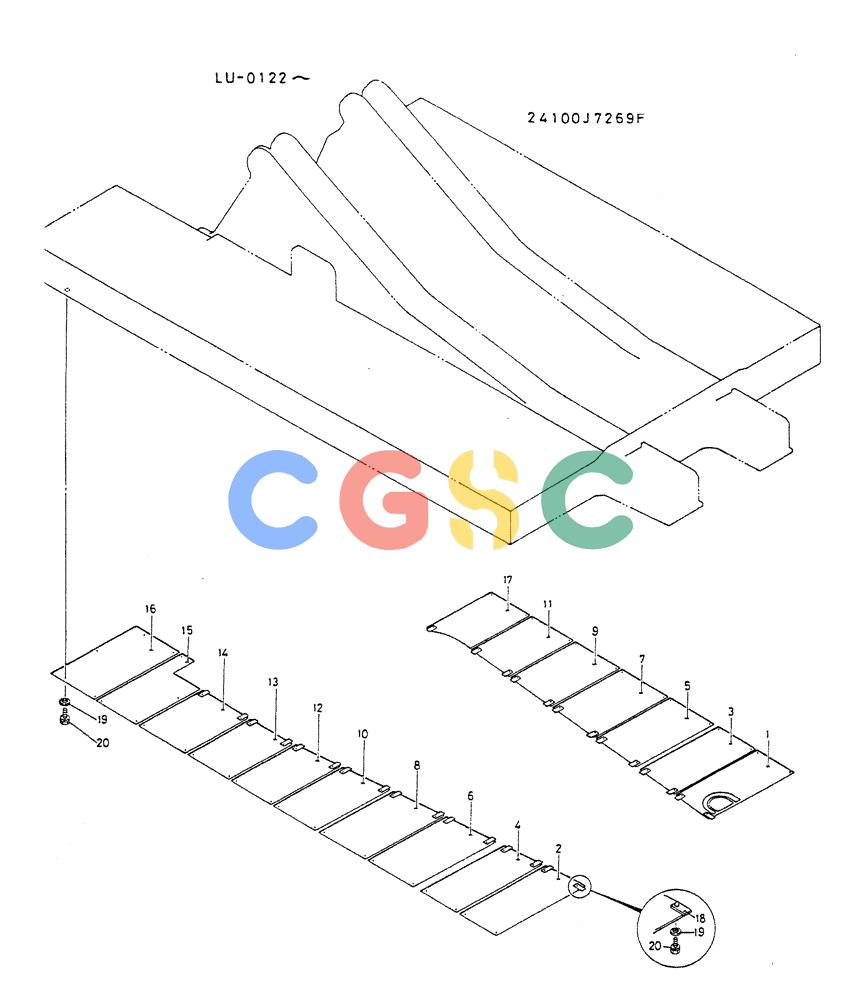

神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (02-047) - COVER ASSY, UNDER (FOR NORWAY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7269F1 | [1] | COVER ASSY, UNDER (FOR NORWAY) | |
| 1. | 2414T3178 | [1] | COVER | |
| 2. | 2414T3179 | [1] | COVER | |
| 3. | 2414T3180 | [1] | COVER | |
| 4. | 2414T3181 | [1] | COVER | |
| 5. | 2414T3182 | [1] | COVER | |
| 6. | 2414T3183 | [1] | COVER | |
| 7. | 2414T3184 | [1] | COVER | |
| 8. | 2414T3185 | [1] | COVER | |
| 9. | 2414T3186 | [1] | COVER | |
| 10. | 2414T3187 | [1] | COVER | |
| 11. | 2414T3188 | [1] | COVER | |
| 12. | 2414T3189 | [1] | COVER | |
| 13. | 2414T3190 | [1] | COVER | |
| 14. | 2414T3191 | [1] | COVER | |
| 15. | 2414T3192 | [1] | COVER | |
| 16. | 2414T3193 | [1] | COVER | |
| 17. | 2414T3196 | [1] | COVER | |
| 18. | 2416T3785 | [21] | BLOCK, TAPPED | |
| 19. | 2418T5373C2 | [69] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 20. | ZM11C10020 | [69] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
