神钢零件查询(K935) - EXCAVATOR SUPPLEMENT ASN LU00154 (1/76-12/03) (09-004) - LABEL, NAME PLATE P/N 24100J3948F2, F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次

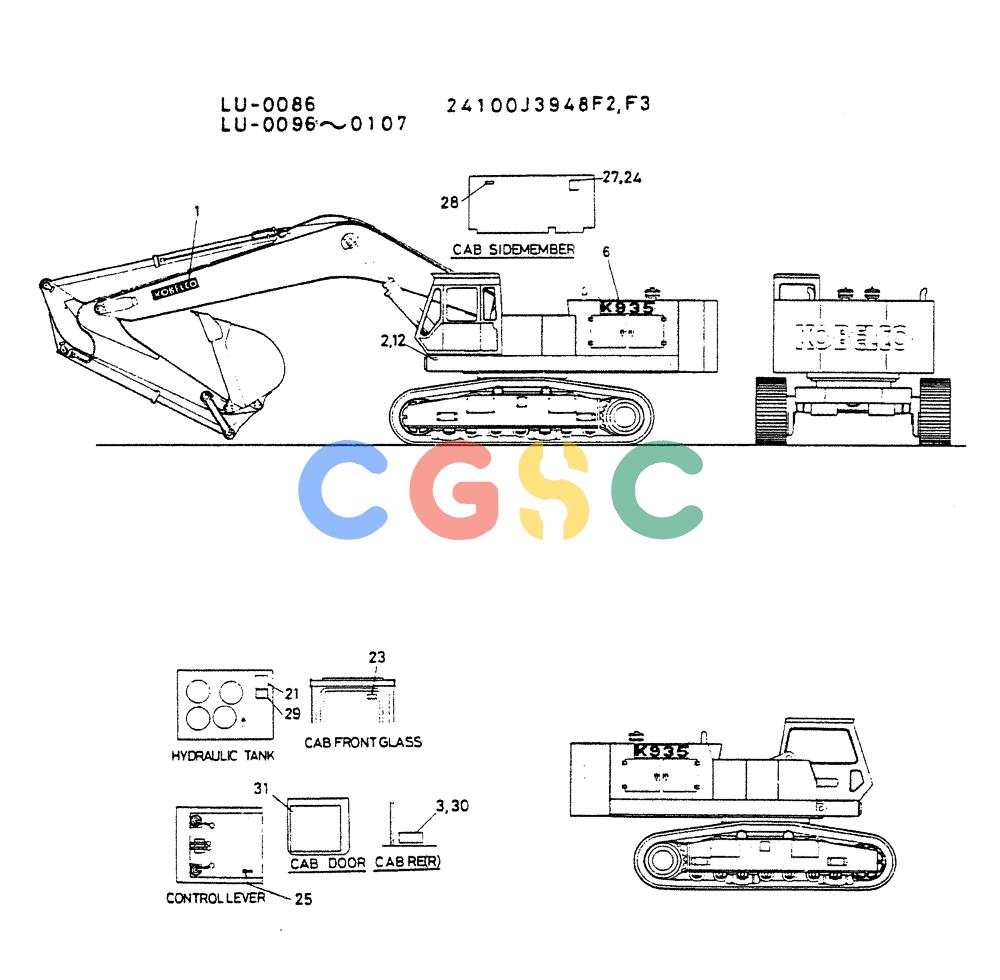

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J3948F2 | [1] | LABEL, NAME-PLATE | |
| 1. | 2432J690 | [2] | LABEL | KOB |
| 2. | 2432T1530 | [1] | IDENTITY PLATE | KOBWAPPEN |
| 3. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 6. | 2432N749 | [2] | NAME-PLATE | NAME-PLATE |
| 12. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 21. | 2432T885 | [2] | PLATE | PLATE |
| 23. | 2432T892 | [1] | LABEL | KOB |
| 24. | 2432T1548 | [1] | PLATE, CAUTION | |
| 25. | 2432T1017 | [1] | LABEL | LABEL |
| 28. | 2432T959 | [1] | LABEL | KOB |
| 31. | 2432J1175 | [1] | LABEL | |
